Combination spanner
Combination spanner
130a
Artikel-Nr. 40571616|EAN 4018754020621

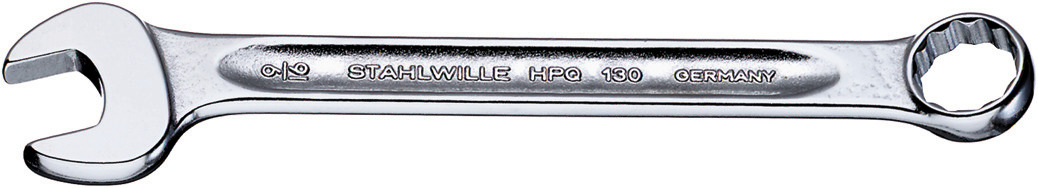

- Made in Germany – STAHLWILLE Combination spanner, inch , open end 15 °angled, length 105 mm, Fed. Spec. GGG-W-636 E, , 40571616
- Special manufacturing process makes thin-walled rings possible – perfect for screwdriving in places that are difficult to access.
- Das AS-Drive-Profil verhindert Kantenbeschädigung durch Kraftansatz auf die Flanken der Schraube bzw. Mutter.
- The double-T profile gives the spanner outstanding bending strength.
- The distinctive STAHLWILLE rounded finish gives the spanner a non-slip and pleasant feel for safe working, even with oil-smeared hands.
Produkt-Varianten
| Product no. | Spanner size 1 [inch] | Spanner size 2 [inch] | Length mm (L) | Width mm (b) | a1 | a2 | d | Weight | |
|---|---|---|---|---|---|---|---|---|---|
| 40571616 | 1/4 " | 1/4 " | 105 mm | 14.2 mm | 3,6 mm | 6 mm | 9,8 mm | 15 g | |
| 40571818 | 9/32 " | 9/32 " | 110 mm | 15.5 mm | 4,1 mm | 6 mm | 10,9 mm | 16 g | Jetzt entdecken |
| 40572020 | 5/16 " | 5/16 " | 115 mm | 17 mm | 4,5 mm | 7 mm | 12 mm | 20 g | Jetzt entdecken |
| 40572222 | 11/32 " | 11/32 " | 120 mm | 19 mm | 4,9 mm | 7 mm | 13,1 mm | 25 g | Jetzt entdecken |
| 40572424 | 3/8 " | 3/8 " | 125 mm | 20.5 mm | 5,2 mm | 7 mm | 14,1 mm | 32 g | Jetzt entdecken |
| 40572828 | 7/16 " | 7/16 " | 135 mm | 23 mm | 6 mm | 8 mm | 16,2 mm | 42 g | Jetzt entdecken |
| 40573232 | 1/2 " | 1/2 " | 150 mm | 27 mm | 6,5 mm | 8,5 mm | 18,2 mm | 61 g | Jetzt entdecken |
| 40573434 | 9/16 " | 9/16 " | 165 mm | 30.5 mm | 7 mm | 8,5 mm | 20,6 mm | 78 g | Jetzt entdecken |
Technologien und Leistungsmerkmale
High Performance Quality (HPQ®)
Our HPQ® tool is made of wear-resistant high-performance steel, yet is thin-walled and lightweight. It withstands high torques and is ideal for work in confined spaces such as turbines.
Anti-Slip-Drive
The special AS-Drive profile makes high force transmission to the flats of screws and bolts possible without damaging them. This also prevents stripping of the screw head.
Double-T profile
Our combination and ring spanners have an additional recess in the middle of the tool. Similar to the principle of a double T-beam, this provides a tremendous load capacity and maximum strength whilst reducing weight.
Thin-walled rings
The thin wall diameter of our rings makes it easier to work in confined spaces. The ring sides are taller than standard nuts, which prevents jamming.
Offset Shaft Design
Our spanners are specially designed with additional reinforcement in the load zones where the greatest amount of force is transmitted - namely where the jaw meets the shank - in order to prevent deformation.
Eigenschaften
- Fed. Spec. GGG-W-636 E
- HPQ® heavy-duty steel, chrome-plated
Produkt-Highlights
A solution for every situation.
Our combination spanners are available in different versions (metric, imperial, long, with Spline-Drive profile) and as sets in textile bags, roll-up tool pouches or TCS inserts.
