Combination spanners OPEN BOX
Combination spanners OPEN BOX
16
Artikel-Nr. 40093232|EAN 4018754019083
- Made in Germany – STAHLWILLE Combination spanner OPEN BOX, metric 3,2 mm, open end 15 °angled, length 75 mm, ISO 3318, , 40093232
- Special manufacturing process allows for thin-walled rings – perfect for screwing in hard-to-reach places
- Extremely resilient and durable – stronger than any screw
- High-quality, non-slip surface texture – for safe working even with oily hands
- Robust Chrome-Alloy-Steel gives the combination spanner high durability and wear resistance.
Produkt-Varianten

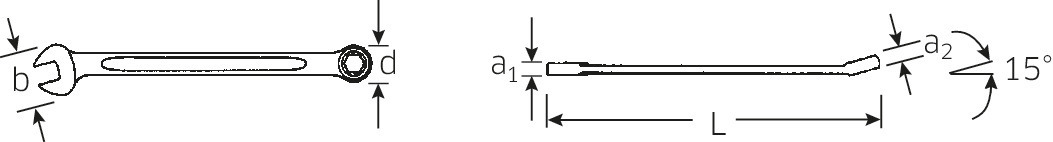

| Code | Size [mm] | Size 1 [mm] | Size 2 [mm] | Length mm (L) | Width mm (b) | a1 | a2 | d | Weight | |
|---|---|---|---|---|---|---|---|---|---|---|
| 40093232 | 3,2 mm | 3,2 mm | 3,2 mm | 75 mm | 10 mm | 3 mm | 3,2 mm | 6,6 mm | 6 g | |
| 40093535 | 3,5 mm | 3,5 mm | 3,5 mm | 75 mm | 10 mm | 3 mm | 3,2 mm | 6,6 mm | 6 g | Jetzt entdecken |
| 40094040 | 4 mm | 4 mm | 4 mm | 85 mm | 12,5 mm | 3 mm | 3,2 mm | 7,8 mm | 9 g | Jetzt entdecken |
| 40094545 | 4,5 mm | 4,5 mm | 4,5 mm | 85 mm | 12,5 mm | 3 mm | 3,2 mm | 7,8 mm | 8 g | Jetzt entdecken |
| 40095050 | 5 mm | 5 mm | 5 mm | 95 mm | 14 mm | 3 mm | 3,2 mm | 9,8 mm | 11 g | Jetzt entdecken |
Technologien und Leistungsmerkmale
Anti-Slip-Drive
The AS-Drive® profile enables highforce transmission without damaging the fasteners. While the force acts on the flats of the screws, the corners are left free and are not rounded off.
High Performance Quality (HPQ®)
High-performance steel, extremely resilient, yet thin-walled and ideal for working in confined spaces.
Double T-profile.
The double T-profile used for the STAHLWILLE open-jaw and ring spanners saves material where it is not needed and guarantees two things at once: peak dimensional stability and extremely low weight, whichever spanner size you pick up.
As a result, tool-kits from STAHLWILLE weigh considerably less. But that is not all: the double T-profile from STAHLWILLE fits snugly in the hand, allows fatiguefree working and can be gripped comfortably and safely. This also increases user safety.
Shaft Offset Design
As the greatest forces act on the connection between the jaw and the shaft, this area is enforced at STAHLWILLE. The special design makes the stress zones more stable - and thus reduces the risk of breakage to a minimum.
Eigenschaften
- ISO 3318
- Chrome-alloy steel, chrome plated
Produkt-Highlights
More Choice.
As one of only a few manufacturers, STAHLWILLE offers a comprehensively diverse range of metric, imperial, spline drive and TORX® spanners.
More Accurate.
Our very tight manufacturing tolerances and reproducible dimensional accuracy ensure that one STAHLWILLE spanner is as close-fitting as the next. In this way, both open-jaw and ring spanners will always firmly hug the fastener head – for excellent power-lock.
