Combination spanners
Combination spanners
OPEN BOX 13a
Artikel-Nr. 40481212|EAN 4018754020058
- High-quality Combination spanners OPEN BOX, imperial , ring and jaw side 15 ° angled, length 95 mm, DIN 3113 Form A / ISO 7738 Form A, Chrome Alloy Steel, 40481212.
Produktvideo
Produkt-Varianten

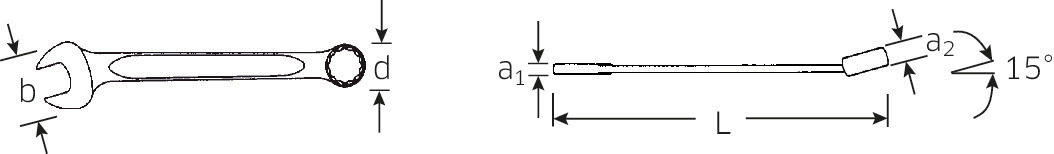

| Art. no. | Model | Spanner width 1 [inch] | Spanner width s 2 [inch] | Length mm (L) | Width mm (b) | a1 | a2 | d | Weight | |
|---|---|---|---|---|---|---|---|---|---|---|
| 40481212 | OPEN BOX 13a | 3/16 " | 3/16 " | 95 mm | 14 mm | 3 mm | 3,2 mm | 9,8 mm | 10 g | |
| 40481313 | OPEN BOX 13a | 13/64 " | 13/64 " | 95 mm | 14 mm | 3 mm | 3,2 mm | 9,8 mm | 10 g | Jetzt entdecken |
| 40481414 | OPEN BOX 13a | 7/32 " | 7/32 " | 95 mm | 14 mm | 3 mm | 3,2 mm | 9,8 mm | 10 g | Jetzt entdecken |
| 40481515 | OPEN BOX 13a | 15/64 " | 15/64 " | 95 mm | 14 mm | 3 mm | 3,2 mm | 9,8 mm | 10 g | Jetzt entdecken |
| 40481616 | OPEN BOX 13a | 1/4 " | 1/4 " | 105 mm | 15,5 mm | 3,6 mm | 6 mm | 10,2 mm | 14 g | Jetzt entdecken |
| 40481818 | OPEN BOX 13a | 9/32 " | 9/32 " | 110 mm | 17 mm | 3,9 mm | 6 mm | 11,3 mm | 15 g | Jetzt entdecken |
| 40482020 | OPEN BOX 13a | 5/16 " | 5/16 " | 115 mm | 18 mm | 4,2 mm | 7 mm | 12,4 mm | 20 g | Jetzt entdecken |
| 40482222 | OPEN BOX 13a | 11/32 " | 11/32 " | 120 mm | 21 mm | 4,5 mm | 7 mm | 13,4 mm | 26 g | Jetzt entdecken |
| 40482424 | OPEN BOX 13a | 3/8 " | 3/8 " | 125 mm | 23 mm | 4,8 mm | 7 mm | 14,3 mm | 32 g | Jetzt entdecken |
| 40482828 | OPEN BOX 13a | 7/16 " | 7/16 " | 135 mm | 26 mm | 4,8 mm | 8 mm | 16,4 mm | 41 g | Jetzt entdecken |
| 40483232 | OPEN BOX 13a | 1/2 " | 1/2 " | 160 mm | 30 mm | 5,3 mm | 8,5 mm | 18,8 mm | 57 g | Jetzt entdecken |
| 40483434 | OPEN BOX 13a | 9/16 " | 9/16 " | 165 mm | 32 mm | 5,3 mm | 8,5 mm | 20,6 mm | 70 g | Jetzt entdecken |
| 40483535 | OPEN BOX 13a | 19/32 " | 19/32 " | 170 mm | 35 mm | 5,3 mm | 8,5 mm | 21,9 mm | 74 g | Jetzt entdecken |
| 40483636 | OPEN BOX 13a | 5/8 " | 5/8 " | 180 mm | 37 mm | 5,8 mm | 10 mm | 23,2 mm | 88 g | Jetzt entdecken |
| 40483838 | OPEN BOX 13a | 11/16 " | 11/16 " | 200 mm | 40 mm | 6,7 mm | 11,5 mm | 25,3 mm | 116 g | Jetzt entdecken |
| 40484040 | OPEN BOX 13a | 3/4 " | 3/4 " | 230 mm | 42 mm | 6,7 mm | 11,5 mm | 27,5 mm | 144 g | Jetzt entdecken |
| 40484141 | OPEN BOX 13a | 25/32 " | 25/32 " | 235 mm | 45 mm | 7 mm | 13 mm | 29 mm | 175 g | Jetzt entdecken |
| 40484242 | OPEN BOX 13a | 13/16 " | 13/16 " | 260 mm | 47 mm | 7,3 mm | 13 mm | 30 mm | 204 g | Jetzt entdecken |
| 40484444 | OPEN BOX 13a | 7/8 " | 7/8 " | 260 mm | 49 mm | 7,3 mm | 13 mm | 31,8 mm | 217 g | Jetzt entdecken |
| 40484646 | OPEN BOX 13a | 15/16 " | 15/16 " | 280 mm | 53 mm | 7,8 mm | 14 mm | 34,9 mm | 255 g | Jetzt entdecken |
| 40484848 | OPEN BOX 13a | 1 " | 1 " | 300 mm | 55 mm | 8,4 mm | 14,5 mm | 37,2 mm | 286 g | Jetzt entdecken |
| 40485050 | OPEN BOX 13a | 1 1/16 " | 1 1/16 " | 300 mm | 60 mm | 8,4 mm | 14,5 mm | 39,2 mm | 327 g | Jetzt entdecken |
| 40485252 | OPEN BOX 13a | 1 1/8 " | 1 1/8 " | 330 mm | 64 mm | 8,9 mm | 16 mm | 41,4 mm | 380 g | Jetzt entdecken |
| 40485454 | OPEN BOX 13a | 1 3/16 " | 1 3/16 " | 332 mm | 66 mm | 8,9 mm | 16,5 mm | 43,2 mm | 398 g | Jetzt entdecken |
| 40485656 | OPEN BOX 13a | 1 1/4 " | 1 1/4 " | 360 mm | 70 mm | 9,4 mm | 16,5 mm | 45,8 mm | 504 g | Jetzt entdecken |
| 40485858 | OPEN BOX 13a | 1 5/16 " | 1 5/16 " | 450 mm | 74 mm | 9,6 mm | 17 mm | 47 mm | 617 g | Jetzt entdecken |
| 40486060 | OPEN BOX 13a | 1 3/8 " | 1 3/8 " | 460 mm | 80 mm | 10 mm | 18 mm | 49,3 mm | 796 g | Jetzt entdecken |
| 40486262 | OPEN BOX 13a | 1 7/16 " | 1 7/16 " | 461 mm | 80 mm | 10 mm | 18 mm | 51,4 mm | 760 g | Jetzt entdecken |
| 40486464 | OPEN BOX 13a | 1 1/2 " | 1 1/2 " | 480 mm | 87 mm | 11 mm | 19 mm | 53,6 mm | 950 g | Jetzt entdecken |
| 40486666 | OPEN BOX 13a | 1 5/8 " | 1 5/8 " | 480 mm | 88 mm | 11 mm | 19 mm | 58 mm | 1021 g | Jetzt entdecken |
| 40486969 | OPEN BOX 13a | 1 13/16 " | 1 13/16 " | 500 mm | 94,5 mm | 13 mm | 20 mm | 65,3 mm | 1343 g | Jetzt entdecken |
| 40487070 | OPEN BOX 13a | 1 7/8 " | 1 7/8 " | 530 mm | 103 mm | 14 mm | 21 mm | 68,4 mm | 1640 g | Jetzt entdecken |
| 40487272 | OPEN BOX 13a | 2 " | 2 " | 530 mm | 103 mm | 14 mm | 21 mm | 74 mm | 1700 g | Jetzt entdecken |
Technologien und Leistungsmerkmale
Anti-Slip-Drive
The special AS-Drive profile makes high force transmission to the flats of screws and bolts possible without damaging them. This also prevents stripping of the screw head.
Double-T profile
Our combination and ring spanners have an additional recess in the middle of the tool. Similar to the principle of a double-T beam, this provides a tremendous load capacity and maximum strength whilst reducing weight.
Thin-walled rings
The thin wall diameter of our rings makes it easier to work in confined spaces. The ring sides are taller than standard nuts, which prevents jamming.
Offset Shaft Design
Our spanners are specially designed with additional reinforcement in the load zones where the greatest amount of force is transmitted - namely where the jaw meets the shank - in order to prevent deformation.
Eigenschaften
- imperial, equal sizes
- jaw angled 15°
- ring with bi-hex and AS-Drive profile
- ring-end cranked 15°
- reinforced connection between jaw and shaft
- durable, slim and lightweight design
- high flexural strength due to double-T profile
- STAHLWILLE's rounded finish ensures a non-slip, pleasant feel
- drop-forged, hardened and cooled in an oil bath
- Chrome Alloy Steel, chrome-plated
Produkt-Highlights
Optimum power transmission.
Every spanner guarantees consistently excellent quality due to minimal manufacturing tolerances and highly reproducible precision. The jaws and ring always sit firmly on the screw, thus ensuring optimal power transmission.
Non-slip surface
STAHLWILLE spanners have a high-quality surface finish with good grip, making it possible to work safely and efficiently, even with greasy hands. The non-slip property improves control during handling.
A solution for every situation.
Our combination spanners are available in different versions (metric, imperial, long, with Spline-Drive profile) and as sets in textile bags, roll-up tool pouches or TCS inlays.
