Double-ended open-ring spanners, angled

Products/Spanners and screwdrivers/Spanners/Double-ended ring spanners

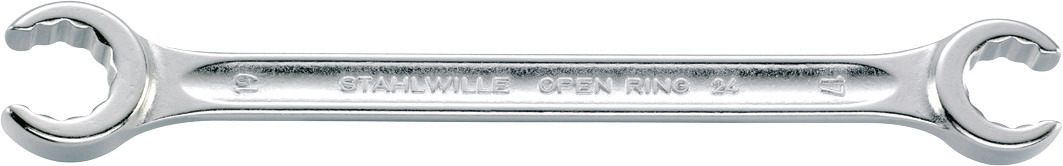

Double-ended open-ring spanners, angled

OPEN RING 24

Produktvarianten

Artikel-Nr. 41081417|EAN 4018754021949

Premium quality double-ended open ring spanners for working on threaded studs or long bolts, for example.

Online Kaufen

Händlersuche

Produkt-Varianten

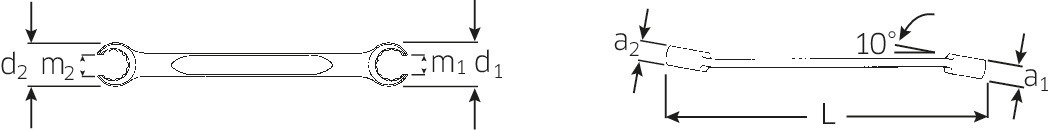

Art. no.	Model	Spanner width 1 [mm]	Spanner width 2 [mm]	Length mm (L)	a1	a2	Drive profile	d1	d2	m1	m2	Weight	Maß-Skizze
41081417	OPEN RING 24	14 mm	17 mm	200 mm	10,5 mm	12 mm	bi-hex AS-Drive	26 mm	30 mm	11 mm	14 mm	115 g
41081619	OPEN RING 24	16 mm	19 mm	220 mm	12 mm	13 mm	bi-hex AS-Drive	29 mm	33 mm	13 mm	15,8 mm	155 g	Jetzt entdecken
41081719	OPEN RING 24	17 mm	19 mm	220 mm	12 mm	13 mm	bi-hex AS-Drive	30 mm	33 mm	14 mm	15,8 mm	150 g	Jetzt entdecken
41081922	OPEN RING 24	19 mm	22 mm	230 mm	13 mm	15 mm	bi-hex AS-Drive	33 mm	37 mm	15,8 mm	17 mm	192 g	Jetzt entdecken
41082224	OPEN RING 24	22 mm	24 mm	245 mm	15 mm	16 mm	bi-hex AS-Drive	37 mm	40,5 mm	17 mm	18 mm	251 g	Jetzt entdecken
41082427	OPEN RING 24	24 mm	27 mm	270 mm	16 mm	17,5 mm	bi-hex AS-Drive	40,5 mm	44,5 mm	18 mm	20 mm	310 g	Jetzt entdecken
41082736	OPEN RING 24	27 mm	36 mm	300 mm	16 mm	19 mm	bi-hex AS-Drive	42 mm	54 mm	20 mm	27 mm	414 g	Jetzt entdecken
41083032	OPEN RING 24	30 mm	32 mm	300 mm	20 mm	22 mm	bi-hex AS-Drive	48,5 mm	50,5 mm	22 mm	24 mm	455 g	Jetzt entdecken

Technologien und Leistungsmerkmale

Anti-Slip-Drive

The special AS-Drive profile makes high force transmission to the flats of screws and bolts possible without damaging them. This also prevents stripping of the screw head.

Thin-walled rings

The thin wall diameter of our rings makes it easier to work in confined spaces. The ring sides are taller than standard nuts, which prevents jamming.

Eigenschaften

metric, unequal sizes
cranked 10°
bi-hex with AS-Drive profile
durable, slim and lightweight design
high flexural strength due to double-T profile
STAHLWILLE's rounded finish ensures a non-slip, pleasant feel
drop-forged, hardened and cooled in an oil bath
Chrome Alloy Steel, chrome-plated
DIN 3118 / ISO 3318

Downloads

Produktdatenblatt: STAHLWILLE_41081417_OPEN RING 24 14 x 17_en.pdf

PDF | 0.16 MB

Konformitaetserklaerung: REACH_KE_01-Schluessel.pdf

PDF | 0.12 MB
