Double ended ring spanners

Double ended ring spanners

21TX

Artikel-Nr. 41250608|EAN 4018754022342
  • For external TORX® screws
  • Besonderes Fertigungsverfahren ermöglicht dünnwandige Ringe – vorwiegend für etwas tiefer liegende Schraubverbindungen.
  • Das AS-Drive®-Profil verhindert Kantenbeschädigung durch Kraftansatz auf die Flanken der Schraube bzw. Mutter.
  • Das Doppel-T-Profil gewährt dem Schlüssel eine hohe Biegefestigkeit.
  • STAHLWILLE: For over 160 years, we as a traditional German company from Wuppertal have stood for tools that are appreciated around the world for their excellent quality

Produkt-Varianten

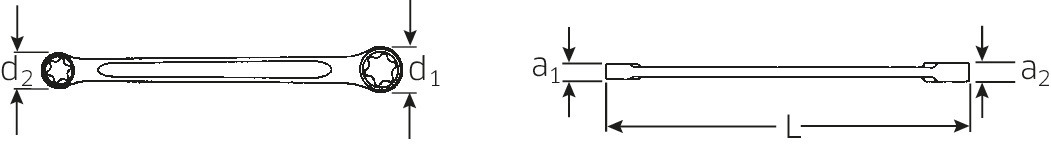

CodeLength mm (L)Output profileSize Output profileWeight
41250608115,5 mmTORX®E6 x E817 g
41251012149,5 mmTORX®E10 x E1233 g
Jetzt entdecken
41251418185 mmTORX®E14 x E1871 g
Jetzt entdecken
41252024227 mmTORX®E20 x E24129 g
Jetzt entdecken

Technologien und Leistungsmerkmale

Anti-Slip-Drive

The AS-Drive® profile enables highforce transmission without damaging the fasteners. While the force acts on the fl­ats of the screws, the corners are left free and are not rounded off.

High Performance Quality (HPQ®)

High-performance steel, extremely resilient, yet thin-walled and ideal for working in confined spaces.

Double T-profile.

The double T-profile used for the STAHLWILLE open-jaw and ring spanners saves material where it is not needed and guarantees two things at once: peak dimensional stability and extremely low weight, whichever spanner size you pick up. As a result, tool-kits from STAHLWILLE weigh considerably less. But that is not all: the double T-profile from STAHLWILLE fits snugly in the hand, allows fatiguefree working and can be gripped comfortably and safely. This also increases user safety.

Eigenschaften

    • for external TORX® screws
    • straight
    • Chrome Alloy Steel, chrome plated

Produkt-Highlights

More Choice.

As one of only a few manufacturers, STAHLWILLE offers a comprehensively diverse range of metric, imperial, spline drive and TORX® spanners.

Slimmer.

Extremely thin-walled rings facilitate work in confined spaces. In addition, the rings are higher than standard nuts – which prevents the spanner seizing on the nut.

More Accurate.

Our very tight manufacturing tolerances and reproducible dimensional accuracy ensure that one STAHLWILLE spanner is as close-fitting as the next. In this way, both open-jaw and ring spanners will always firmly hug the fastener head – for excellent power-lock.

Downloads

Produktdatenblatt: STAHLWILLE_41250608_21 TX E 6 X E 8_en.pdf
PDF | 0.12 MB
Konformitaetserklaerung: REACH_KE_01-Schluessel.pdf
PDF | 0.12 MB
In unserem Kundenportal bieten wir weitere Informationen und Downloads.
