Double ended ring spanners

Double ended ring spanners

220a

Artikel-Nr. 41431416|EAN 4018754156771
  • Extra long
  • Besonderes Fertigungsverfahren ermöglicht dünnwandige Ringe – vorwiegend für etwas tiefer liegende Schraubverbindungen.
  • Das AS-Drive®-Profil verhindert Kantenbeschädigung durch Kraftansatz auf die Flanken der Schraube bzw. Mutter.
  • Das Doppel-T-Profil gewährt dem Schlüssel eine hohe Biegefestigkeit.
  • STAHLWILLE: For over 160 years, we as a traditional German company from Wuppertal have stood for tools that are appreciated around the world for their excellent quality

Produkt-Varianten

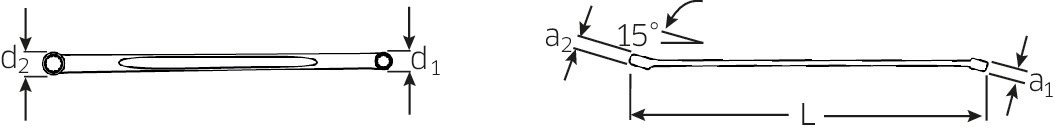

CodeSize 1 [inch]Size 2 [inch]Length mm (L)Output profileWeight
414314167/32 "1/4 "184 mmDouble hexagon AS-drive29 g
414316201/4 "5/16 "205 mmDouble hexagon AS-drive33 g
Jetzt entdecken
414324283/8 "7/16 "250 mmDouble hexagon AS-drive79 g
Jetzt entdecken
414332341/2 "9/16 "290 mmDouble hexagon AS-drive160 g
Jetzt entdecken
414336405/8 "3/4 "363 mmDouble hexagon AS-drive298 g
Jetzt entdecken
4143384011/16 "3/4 "365 mmDouble hexagon AS-drive291 g
Jetzt entdecken

Technologien und Leistungsmerkmale

Anti-Slip-Drive

The AS-Drive® profile enables highforce transmission without damaging the fasteners. While the force acts on the fl­ats of the screws, the corners are left free and are not rounded off.

High Performance Quality (HPQ®)

High-performance steel, extremely resilient, yet thin-walled and ideal for working in confined spaces.

Double T-profile.

The double T-profile used for the STAHLWILLE open-jaw and ring spanners saves material where it is not needed and guarantees two things at once: peak dimensional stability and extremely low weight, whichever spanner size you pick up. As a result, tool-kits from STAHLWILLE weigh considerably less. But that is not all: the double T-profile from STAHLWILLE fits snugly in the hand, allows fatiguefree working and can be gripped comfortably and safely. This also increases user safety.

Eigenschaften

    • extra long
    • 15° angled
    • SAE AS 954-E (test loads)
    • HPQ® high performance steel, chrome plated

Produkt-Highlights

More Choice.

As one of only a few manufacturers, STAHLWILLE offers a comprehensively diverse range of metric, imperial, spline drive and TORX® spanners.

Slimmer.

Extremely thin-walled rings facilitate work in confined spaces. In addition, the rings are higher than standard nuts – which prevents the spanner seizing on the nut.

More Accurate.

Our very tight manufacturing tolerances and reproducible dimensional accuracy ensure that one STAHLWILLE spanner is as close-fitting as the next. In this way, both open-jaw and ring spanners will always firmly hug the fastener head – for excellent power-lock.

Downloads

Produktdatenblatt: STAHLWILLE_41431416_220A 7-32 X 1-4_en.pdf
PDF | 0.13 MB
Konformitaetserklaerung: REACH_KE_01-Schluessel.pdf
PDF | 0.12 MB
