Double-ended ring spanners
Double-ended ring spanners
220
- High-quality double-ended ring spanner in extra-long version for greater power transmission, with metric size.
- A special manufacturing process enables thin-walled rings - slim for use in confined areas and at the same time robust enough for high loads.
- The bi-hex AS-Drive profile protects screws and nuts because the force is applied specifically to the flanks - not the edges.
- The distinctive STAHLWILLE rounded finish gives the combination spanner a non-slip and comfortable feel for safe working, even with oily hands.
- Made from robust HPQ® high performance steel and additionally chrome-plated for high durability, reliable corrosion protection and enormous wear resistance.
Produkt-Varianten

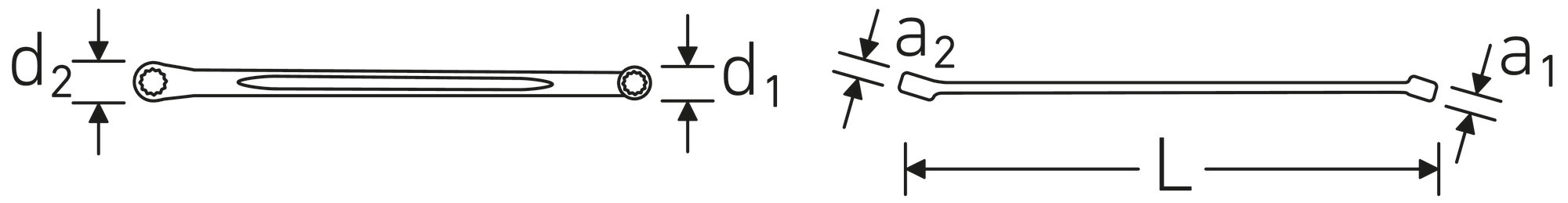

| Product no. | Model | Size 1 [mm] | Size 2 [mm] | Length mm (L) | a1 | a2 | Drive profile | d1 | d2 | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 41030608 | 220 | 6 mm | 8 mm | 205 mm | 5,6 mm | 6 mm | bi-hex AS-Drive | 9,8 mm | 12,1 mm | 34 g | Jetzt entdecken |
| 41030911 | 220 | 9 mm | 11 mm | 250 mm | 8 mm | 8,7 mm | bi-hex AS-Drive | 14,2 mm | 16,7 mm | 80 g | Jetzt entdecken |
| 41031011 | 220 | 10 mm | 11 mm | 250 mm | 8 mm | 8,7 mm | bi-hex AS-Drive | 15,5 mm | 16,7 mm | 80 g | Jetzt entdecken |
| 41031214 | 220 | 12 mm | 14 mm | 290 mm | 9,5 mm | 9,5 mm | bi-hex AS-Drive | 18,3 mm | 20,7 mm | 162 g | |
| 41031314 | 220 | 13 mm | 14 mm | 290 mm | 9,5 mm | 9,5 mm | bi-hex AS-Drive | 18,7 mm | 20,7 mm | 160 g | Jetzt entdecken |
| 41031719 | 220 | 17 mm | 19 mm | 365 mm | 11 mm | 12 mm | bi-hex AS-Drive | 25 mm | 27,5 mm | 296 g | Jetzt entdecken |
| 41031819 | 220 | 18 mm | 19 mm | 365 mm | 11 mm | 12 mm | bi-hex AS-Drive | 25,5 mm | 27,5 mm | 295 g | Jetzt entdecken |
| 41031922 | 220 | 19 mm | 22 mm | 408 mm | 13 mm | 14,3 mm | bi-hex AS-Drive | 27,5 mm | 31,5 mm | 520 g | Jetzt entdecken |
| 41032022 | 220 | 20 mm | 22 mm | 409 mm | 13 mm | 14,3 mm | bi-hex AS-Drive | 28,5 mm | 31,5 mm | 515 g | Jetzt entdecken |
| 41035507 | 220 | 5,5 mm | 7 mm | 185 mm | 5,3 mm | 5,8 mm | bi-hex AS-Drive | 8,8 mm | 11 mm | 28 g | Jetzt entdecken |
Technologien und Leistungsmerkmale
Double-T profile
Anti-Slip-Drive
High Performance Quality (HPQ®)
Thin-walled rings
Eigenschaften
- metric, differing end sizes
- cranked 15°
- bi-hex with AS-Drive profile
- extra long design for less effort with constant torque
- suitable for working in confined spaces
- durable, slim and lightweight design
- high flexural strength due to double-T profile
- STAHLWILLE's rounded finish ensures a non-slip, pleasant feel
- HPQ® high performance steel, chrome-plated
Produkt-Highlights
For high torques.
Designed in an extra-long version, the double-ended ring spanner enables a significantly higher leverage effect: the desired torque is achieved with less force - while maintaining a constant load on the screw or nut. This is a big advantage when loosening tight screw connections, e.g. on wheel suspensions and brakes, agricultural and construction machinery, couplings/drive trains, as well as on valves, fittings, steel structures and in plant maintenance.
Optimum power transmission.
Each spanner guarantees consistently excellent quality thanks to minimal manufacturing tolerances and high reproducible precision. The jaw and ring always fit securely on the screw, ensuring optimum power transmission.
Non-slip surface.
STAHLWILLE spanners feature a high-quality, non-slip surface texture that enables safe working even with oily hands. The non-slip texture increases control during handling.
Solid, stable, durable.
Made from solid, extremely durable HPQ® high performance steel, the spanner offers high stability and resilience even in continuous use - no deformation, no warping, even when used vigorously. It is also chrome-plated for corrosion resistance.
