Double-ended ring spanners
Double-ended ring spanners
180a
- High-quality double-ended ring spanner in short version for working in confined spaces with minimal swivel range, with imperial size.
- A special manufacturing process enables thin-walled rings - slim for use in confined areas and at the same time robust enough for high loads.
- High bending stiffness ensures added safety even in the event of overload.
- The distinctive STAHLWILLE rounded finish gives the combination spanner a non-slip and comfortable feel for safe working, even with oily hands.
- Made from robust HPQ® high performance steel and additionally chrome-plated for high durability, reliable corrosion protection and enormous wear resistance.
Produkt-Varianten

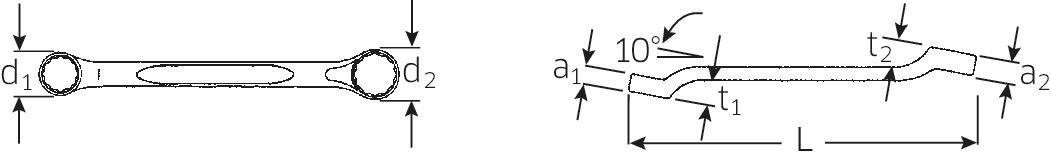

| Product no. | Model | Size 1 [inch] | Size 2 [inch] | Length mm (L) | a1 | a2 | Drive profile | d1 | d2 | t1 | t2 | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 41601620 | 180a | 1/4 " | 5/16 " | 107 mm | 7 mm | 8 mm | bi-hex AS-Drive | 10,2 mm | 11,8 mm | 7,2 mm | 7,4 mm | 26 g | |
| 41602428 | 180a | 3/8 " | 7/16 " | 122 mm | 6,7 mm | 7,8 mm | bi-hex AS-Drive | 14,6 mm | 16,7 mm | 9 mm | 10 mm | 42 g | Jetzt entdecken |
| 41603234 | 180a | 1/2 " | 9/16 " | 141 mm | 8,7 mm | 9,5 mm | bi-hex AS-Drive | 18,5 mm | 20,7 mm | 11 mm | 12 mm | 62 g | Jetzt entdecken |
| 41603436 | 180a | 9/16 " | 5/8 " | 148 mm | 9,5 mm | 10,5 mm | bi-hex AS-Drive | 20,7 mm | 22,6 mm | 11,5 mm | 12,5 mm | 90 g | Jetzt entdecken |
Technologien und Leistungsmerkmale
Double-T profile
High Performance Quality (HPQ®)
Thin-walled rings
Eigenschaften
- imperial, differing end sizes
- short, flat cranked
- bi-hex
- durable, slim and lightweight design
- high flexural strength due to double-T profile
- STAHLWILLE's rounded finish ensures a non-slip, pleasant feel
- HPQ® high performance steel, chrome-plated
- Fed. Spec. GGG-W-636 E / S.B.A.C. Techn. Spec. T.S. 48 up to 1/2"
Produkt-Highlights
For confined spaces with little room for manoeuvre.
The short, flat-cranked double-ended ring spanner shows its strength when screw connections are located close to housings, covers or adjacent components. Whether on aggregates, inside machines or during maintenance work under panelling: the compact design can be used where longer spanners cannot be applied - and enables clean, controlled work even in confined spaces.
Optimum power transmission.
Each spanner guarantees consistently excellent quality thanks to minimal manufacturing tolerances and high reproducible precision. The jaw and ring always fit securely on the screw, ensuring optimum power transmission.
Non-slip surface.
STAHLWILLE spanners feature a high-quality, non-slip surface texture that enables safe working even with oily hands. The non-slip texture increases control during handling.
Solid, stable, durable.
Made from solid, extremely durable HPQ® high performance steel, the spanner offers high stability and resilience even in continuous use - no deformation, no warping, even when used vigorously. It is also chrome-plated for corrosion resistance.
