Double-ended ring spanners
Double-ended ring spanners
StahlwilleSTABIL® 20a
Artikel-Nr. 41441620|EAN 4018754022410

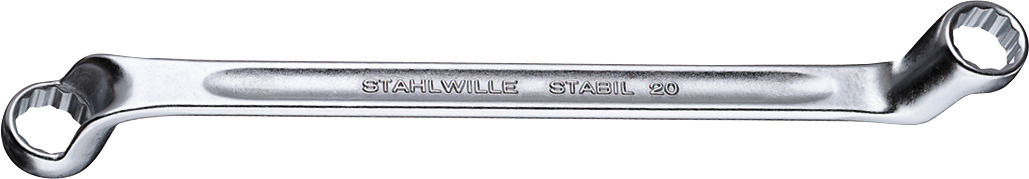

- High quality double-ended ring spanner, deeply cranked, in imperial AF spanner sizes.
Produkt-Varianten

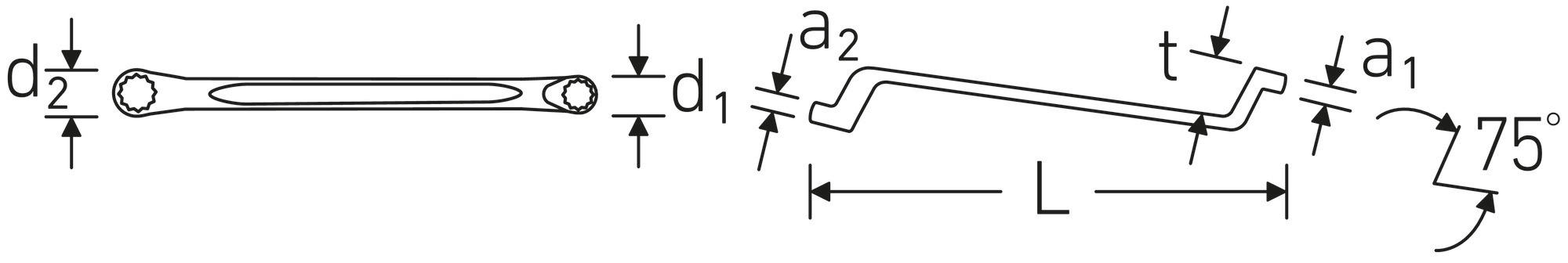

| Art. no. | Model | Spanner width 1 [inch] | Spanner width s 2 [inch] | Length mm (L) | a1 | a2 | Drive profile | d1 | d2 | t | Weight | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 41441620 | StahlwilleSTABIL® 20a | 1/4 " | 5/16 " | 180 mm | 7 mm | 7 mm | bi-hex AS-Drive | 11,8 mm | 13,1 mm | 20 mm | 55 g | |
| 41442428 | StahlwilleSTABIL® 20a | 3/8 " | 7/16 " | 200 mm | 9 mm | 9 mm | bi-hex AS-Drive | 15,8 mm | 17,2 mm | 23 mm | 88 g | Jetzt entdecken |
| 41443234 | StahlwilleSTABIL® 20a | 1/2 " | 9/16 " | 220 mm | 9 mm | 10 mm | bi-hex AS-Drive | 20 mm | 21,3 mm | 25 mm | 120 g | Jetzt entdecken |
| 41443436 | StahlwilleSTABIL® 20a | 9/16 " | 5/8 " | 245 mm | 10 mm | 12 mm | bi-hex AS-Drive | 21,3 mm | 25,3 mm | 27 mm | 168 g | Jetzt entdecken |
| 41443538 | StahlwilleSTABIL® 20a | 19/32 " | 11/16 " | 255 mm | 11 mm | 12 mm | bi-hex AS-Drive | 23,9 mm | 25,3 mm | 27 mm | 175 g | Jetzt entdecken |
| 41443640 | StahlwilleSTABIL® 20a | 5/8 " | 3/4 " | 270 mm | 12 mm | 13 mm | bi-hex AS-Drive | 23,9 mm | 28 mm | 29 mm | 235 g | Jetzt entdecken |
| 41443842 | StahlwilleSTABIL® 20a | 11/16 " | 13/16 " | 300 mm | 12 mm | 13 mm | bi-hex AS-Drive | 25,3 mm | 30,7 mm | 31 mm | 280 g | Jetzt entdecken |
| 41444044 | StahlwilleSTABIL® 20a | 3/4 " | 7/8 " | 300 mm | 13 mm | 14 mm | bi-hex AS-Drive | 28 mm | 32,1 mm | 31 mm | 299 g | Jetzt entdecken |
| 41444142 | StahlwilleSTABIL® 20a | 25/32 " | 13/16 " | 300 mm | 13 mm | 14 mm | bi-hex AS-Drive | 29,4 mm | 32,1 mm | 31 mm | 333 g | Jetzt entdecken |
| 41444446 | StahlwilleSTABIL® 20a | 7/8 " | 15/16 " | 330 mm | 14 mm | 14 mm | bi-hex AS-Drive | 32,1 mm | 34,7 mm | 34 mm | 363 g | Jetzt entdecken |
| 41444648 | StahlwilleSTABIL® 20a | 15/16 " | 1 " | 330 mm | 14 mm | 15 mm | bi-hex AS-Drive | 34,7 mm | 37,3 mm | 34 mm | 419 g | Jetzt entdecken |
| 41445258 | StahlwilleSTABIL® 20a | 1 1/8 " | 1 5/16 " | 365 mm | 15 mm | 16 mm | bi-hex AS-Drive | 42,6 mm | 45,4 mm | 37 mm | 581 g | Jetzt entdecken |
Technologien und Leistungsmerkmale
Anti-Slip-Drive
The special AS-Drive profile makes high force transmission to the flats of screws and bolts possible without damaging them. This also prevents stripping of the screw head.
Thin-walled rings
The thin wall diameter of our rings makes it easier to work in confined spaces. The ring sides are taller than standard nuts, which prevents jamming.
Eigenschaften
- imperial, unequal sizes
- deeply cranked
- bi-hex with AS-Drive profile
- durable, slim and lightweight design
- high flexural strength due to double-T profile
- STAHLWILLE's rounded finish ensures a non-slip, pleasant feel
- drop-forged, hardened and cooled in an oil bath
- Chrome Alloy Steel, chrome-plated
