Double-ended ring spanners

StahlwilleSTABIL® 20

Artikel-Nr. 41040607|EAN 4018754020782

High quality double-ended ring spanner, deeply cranked, in metric spanner sizes.
A special manufacturing process makes thin-walled rings possible - primarily for slightly lower-lying screw connections.
The AS-Drive profile prevents damage to the fastener caused by force being applied to the edges of the nut or bolt.
The distinctive STAHLWILLE rounded finish ensures the combination spanner is comfortable to hold and is easy to grip, ensuring safe working, even with oily hands.
Manufactured from durable Chrome Alloy Steel for a long service life and resistance to wear.

Produkt-Varianten

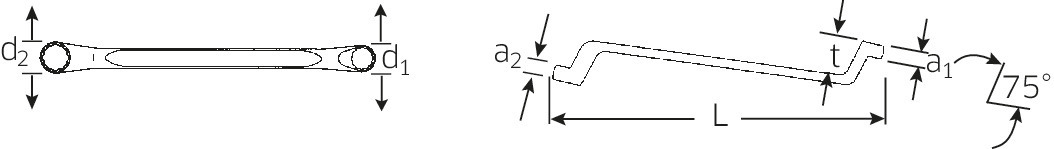

Art. no.	Model	Spanner width 1 [mm]	Spanner width 2 [mm]	Length mm (L)	a1	a2	Drive profile	d1	d2	t	Weight	Maß-Skizze
41040607	StahlwilleSTABIL® 20	6 mm	7 mm	165 mm	6 mm	7 mm	bi-hex AS-Drive	10,5 mm	11,8 mm	18 mm	46 g
41040809	StahlwilleSTABIL® 20	8 mm	9 mm	180 mm	7 mm	8 mm	bi-hex AS-Drive	13,1 mm	14,5 mm	20 mm	62 g	Jetzt entdecken
41040810	StahlwilleSTABIL® 20	8 mm	10 mm	180 mm	7 mm	9 mm	bi-hex AS-Drive	13,1 mm	15,8 mm	21 mm	61 g	Jetzt entdecken
41041011	StahlwilleSTABIL® 20	10 mm	11 mm	200 mm	9 mm	9 mm	bi-hex AS-Drive	15,8 mm	17,2 mm	23 mm	93 g	Jetzt entdecken
41041013	StahlwilleSTABIL® 20	10 mm	13 mm	220 mm	9 mm	10 mm	bi-hex AS-Drive	15,8 mm	20 mm	25 mm	122 g	Jetzt entdecken
41041213	StahlwilleSTABIL® 20	12 mm	13 mm	220 mm	9 mm	10 mm	bi-hex AS-Drive	18,6 mm	20 mm	25 mm	126 g	Jetzt entdecken
41041317	StahlwilleSTABIL® 20	13 mm	17 mm	245 mm	10 mm	12 mm	bi-hex AS-Drive	20 mm	25,3 mm	27 mm	169 g	Jetzt entdecken
41041415	StahlwilleSTABIL® 20	14 mm	15 mm	245 mm	10 mm	12 mm	bi-hex AS-Drive	21,3 mm	22,6 mm	27 mm	163 g	Jetzt entdecken
41041617	StahlwilleSTABIL® 20	16 mm	17 mm	255 mm	11 mm	12 mm	bi-hex AS-Drive	23,9 mm	25,3 mm	27 mm	181 g	Jetzt entdecken
41041719	StahlwilleSTABIL® 20	17 mm	19 mm	270 mm	12 mm	13 mm	bi-hex AS-Drive	25,3 mm	28 mm	29 mm	220 g	Jetzt entdecken
41041819	StahlwilleSTABIL® 20	18 mm	19 mm	275 mm	12 mm	13 mm	bi-hex AS-Drive	26,6 mm	28 mm	29 mm	220 g	Jetzt entdecken
41041821	StahlwilleSTABIL® 20	18 mm	21 mm	300 mm	12 mm	13 mm	bi-hex AS-Drive	26,6 mm	30,7 mm	31 mm	279 g	Jetzt entdecken
41041922	StahlwilleSTABIL® 20	19 mm	22 mm	300 mm	13 mm	14 mm	bi-hex AS-Drive	28 mm	32,1 mm	31 mm	315 g	Jetzt entdecken
41042022	StahlwilleSTABIL® 20	20 mm	22 mm	300 mm	13 mm	14 mm	bi-hex AS-Drive	29,4 mm	32,1 mm	31 mm	317 g	Jetzt entdecken
41042123	StahlwilleSTABIL® 20	21 mm	23 mm	315 mm	13 mm	14 mm	bi-hex AS-Drive	30,7 mm	33,4 mm	31 mm	312 g	Jetzt entdecken
41042124	StahlwilleSTABIL® 20	21 mm	24 mm	330 mm	13 mm	14 mm	bi-hex AS-Drive	30,7 mm	34,7 mm	34 mm	384 g	Jetzt entdecken
41042224	StahlwilleSTABIL® 20	22 mm	24 mm	330 mm	14 mm	14 mm	bi-hex AS-Drive	32,1 mm	34,7 mm	34 mm	368 g	Jetzt entdecken
41042426	StahlwilleSTABIL® 20	24 mm	26 mm	330 mm	14 mm	15 mm	bi-hex AS-Drive	34,7 mm	37,3 mm	34 mm	427 g	Jetzt entdecken
41042427	StahlwilleSTABIL® 20	24 mm	27 mm	330 mm	14 mm	15 mm	bi-hex AS-Drive	34,7 mm	38,6 mm	34 mm	447 g	Jetzt entdecken
41042528	StahlwilleSTABIL® 20	25 mm	28 mm	350 mm	14 mm	15 mm	bi-hex AS-Drive	36 mm	40 mm	34 mm	414 g	Jetzt entdecken
41042730	StahlwilleSTABIL® 20	27 mm	30 mm	360 mm	15 mm	15 mm	bi-hex AS-Drive	38,3 mm	42,6 mm	37 mm	595 g	Jetzt entdecken
41042732	StahlwilleSTABIL® 20	27 mm	32 mm	360 mm	15 mm	16 mm	bi-hex AS-Drive	39,3 mm	47,2 mm	37 mm	596 g	Jetzt entdecken
41043032	StahlwilleSTABIL® 20	30 mm	32 mm	365 mm	15 mm	16 mm	bi-hex AS-Drive	42,6 mm	45,4 mm	37 mm	640 g	Jetzt entdecken
41043034	StahlwilleSTABIL® 20	30 mm	34 mm	365 mm	15 mm	16 mm	bi-hex AS-Drive	42,6 mm	48 mm	37 mm	660 g	Jetzt entdecken
41043641	StahlwilleSTABIL® 20	36 mm	41 mm	440 mm	17 mm	18 mm	bi-hex AS-Drive	53 mm	60 mm	40 mm	1015 g	Jetzt entdecken
41044650	StahlwilleSTABIL® 20	46 mm	50 mm	535 mm	19 mm	20 mm	bi-hex AS-Drive	65,2 mm	73 mm	45 mm	1709 g	Jetzt entdecken

metric, unequal sizes
deeply cranked
bi-hex with AS-Drive profile
durable, slim and lightweight design
high flexural strength due to double-T profile
STAHLWILLE's rounded finish ensures a non-slip, pleasant feel
drop-forged, hardened and cooled in an oil bath
Chrome Alloy Steel, chrome-plated
