Small double open-ended spanners
Small double open-ended spanners
ELECTRIC 12
Artikel-Nr. 40060404|EAN 4018754018550
Produkt-Varianten

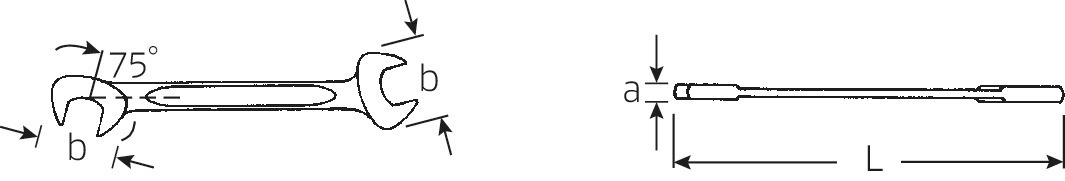

| Art. no. | Model | Spanner width 1 [mm] | Spanner width 2 [mm] | Length mm (L) | Width mm (b) | a | Weight | |
|---|---|---|---|---|---|---|---|---|
| 40060404 | ELECTRIC 12 | 4 mm | 4 mm | 70 mm | 10,5 mm | 2 mm | 5 g | |
| 40060505 | ELECTRIC 12 | 5 mm | 5 mm | 78 mm | 12,6 mm | 2 mm | 7 g | Jetzt entdecken |
| 40060606 | ELECTRIC 12 | 6 mm | 6 mm | 78 mm | 12,6 mm | 2 mm | 6 g | Jetzt entdecken |
| 40060707 | ELECTRIC 12 | 7 mm | 7 mm | 91 mm | 14,7 mm | 2 mm | 9 g | Jetzt entdecken |
| 40060808 | ELECTRIC 12 | 8 mm | 8 mm | 96 mm | 16,8 mm | 3 mm | 16 g | Jetzt entdecken |
| 40060909 | ELECTRIC 12 | 9 mm | 9 mm | 103 mm | 18,9 mm | 3 mm | 19 g | Jetzt entdecken |
| 40061010 | ELECTRIC 12 | 10 mm | 10 mm | 105 mm | 21 mm | 3 mm | 22 g | Jetzt entdecken |
| 40061111 | ELECTRIC 12 | 11 mm | 11 mm | 116 mm | 24,2 mm | 3 mm | 27 g | Jetzt entdecken |
| 40061212 | ELECTRIC 12 | 12 mm | 12 mm | 116 mm | 24,2 mm | 3 mm | 27 g | Jetzt entdecken |
| 40061313 | ELECTRIC 12 | 13 mm | 13 mm | 131 mm | 28,3 mm | 3 mm | 37 g | Jetzt entdecken |
| 40061414 | ELECTRIC 12 | 14 mm | 14 mm | 131 mm | 28,3 mm | 3 mm | 36 g | Jetzt entdecken |
| 40063232 | ELECTRIC 12 | 3,2 mm | 3,2 mm | 70 mm | 10,5 mm | 2 mm | 5 g | Jetzt entdecken |
| 40063535 | ELECTRIC 12 | 3,5 mm | 3,5 mm | 70 mm | 10,5 mm | 2 mm | 5 g | Jetzt entdecken |
| 40064545 | ELECTRIC 12 | 4,5 mm | 4,5 mm | 70 mm | 10,5 mm | 2 mm | 5 g | Jetzt entdecken |
| 40065555 | ELECTRIC 12 | 5,5 mm | 5,5 mm | 78 mm | 12,6 mm | 2 mm | 7 g | Jetzt entdecken |
Technologien und Leistungsmerkmale
Double-T profile
Our combination and ring spanners have an additional recess in the middle of the tool. Similar to the principle of a double-T beam, this provides a tremendous load capacity and maximum strength whilst reducing weight.
Offset Shaft Design
Our spanners are specially designed with additional reinforcement in the load zones where the greatest amount of force is transmitted - namely where the jaw meets the shank - in order to prevent deformation.
Eigenschaften
- metric, identical end sizes
- straight design, jaws angled 15° and 75°
- durable, slim and lightweight design
- high flexural strength due to double-T profile
- STAHLWILLE's rounded finish ensures a non-slip, pleasant feel
- Chrome Alloy Steel, chrome-plated
