Double-ended open-jaw spanners

Double-ended open-jaw spanners

10

Artikel-Nr. 40030405|EAN 4018754017690
  • The use of high-quality special steel and an elaborate forging process make the double open-end wrench durable and robust
  • The use of high-quality special steel and an elaborate forging process make the double open-end wrench durable and robust
  • Particularly low manufacturing tolerances guarantee that the jaw always sits securely on the screw
  • Ideal for a wide range of car, bicycle, motorcycle, and industrial jobs
  • Sturdy tool with top quality for the professional user, DIN 3110, ISO 10102 – Made in Germany

Produkt-Varianten

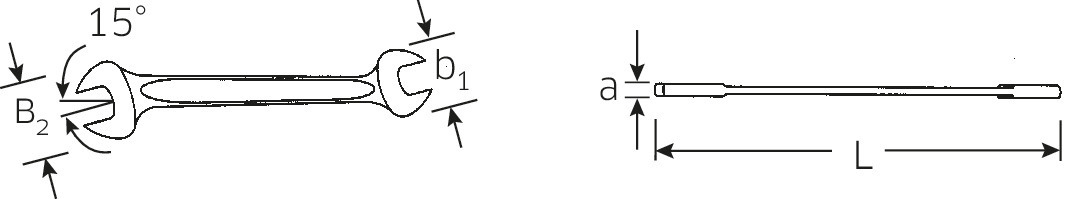

CodeSize [mm]Size 1 [mm]Size 2 [mm]Length mm (L)b1b2aWeight
400304054 x 5 mm4 mm5 mm100 mm12,5 mm14 mm3,4 mm11 g
400306076 x 7 mm6 mm7 mm120 mm15,5 mm17 mm3,7 mm17 g
Jetzt entdecken
400307087 x 8 mm7 mm8 mm140 mm17 mm18 mm4,0 mm25 g
Jetzt entdecken
400308098 x 9 mm8 mm9 mm140 mm18 mm21 mm4,0 mm27 g
Jetzt entdecken
400308108 x 10 mm8 mm10 mm140 mm18 mm23 mm4,5 mm33 g
Jetzt entdecken
4003101110 x 11 mm10 mm11 mm155 mm23 mm26 mm4,8 mm47 g
Jetzt entdecken
4003101210 x 12 mm10 mm12 mm170 mm23 mm28 mm5,3 mm51 g
Jetzt entdecken
4003101310 x 13 mm10 mm13 mm171 mm23 mm30 mm5,3 mm57 g
Jetzt entdecken
4003111311 x 13 mm11 mm13 mm170 mm26 mm30 mm5,3 mm55 g
Jetzt entdecken
4003121312 x 13 mm12 mm13 mm170 mm28 mm30 mm5,3 mm75 g
Jetzt entdecken
4003121412 x 14 mm12 mm14 mm170 mm28 mm32 mm5,3 mm63 g
Jetzt entdecken
4003131413 x 14 mm13 mm14 mm190 mm30 mm32 mm5,3 mm70 g
Jetzt entdecken
4003131513 x 15 mm13 mm15 mm190 mm30 mm35 mm5,3 mm73 g
Jetzt entdecken
4003131713 x 17 mm13 mm17 mm205 mm30 mm38 mm5,8 mm92 g
Jetzt entdecken
4003141514 x 15 mm14 mm15 mm190 mm32 mm35 mm5,3 mm81 g
Jetzt entdecken
4003141714 x 17 mm14 mm17 mm205 mm32 mm38 mm5,8 mm99 g
Jetzt entdecken
4003161716 x 17 mm16 mm17 mm205 mm36 mm38 mm5,8 mm100 g
Jetzt entdecken
4003161816 x 18 mm16 mm18 mm220 mm36 mm40 mm6,7 mm125 g
Jetzt entdecken
4003171917 x 19 mm17 mm19 mm220 mm38 mm42 mm6,7 mm131 g
Jetzt entdecken
4003181918 x 19 mm18 mm19 mm220 mm40 mm42,5 mm6,7 mm147 g
Jetzt entdecken
4003182118 x 21 mm18 mm21 mm235 mm40 mm47 mm7,3 mm170 g
Jetzt entdecken
4003192219 x 22 mm19 mm22 mm235 mm42 mm49 mm7,3 mm179 g
Jetzt entdecken
4003202220 x 22 mm20 mm22 mm235 mm45 mm49 mm7,3 mm185 g
Jetzt entdecken
4003212321 x 23 mm21 mm23 mm250 mm47 mm51 mm7,8 mm225 g
Jetzt entdecken
4003212421 x 24 mm21 mm24 mm250 mm47 mm53 mm7,8 mm215 g
Jetzt entdecken
4003222422 x 24 mm22 mm24 mm250 mm49 mm53 mm7,8 mm225 g
Jetzt entdecken
4003242624 x 26 mm24 mm26 mm270 mm53 mm57,5 mm8,3 mm293 g
Jetzt entdecken
4003242724 x 27 mm24 mm27 mm280 mm53 mm60 mm8,3 mm299 g
Jetzt entdecken
4003252825 x 28 mm25 mm28 mm285 mm55 mm62 mm8,3 mm309 g
Jetzt entdecken
4003273027 x 30 mm27 mm30 mm300 mm60 mm66 mm9,4 mm412 g
Jetzt entdecken
4003273227 x 32 mm27 mm32 mm300 mm60 mm70 mm9,4 mm418 g
Jetzt entdecken
4003303230 x 32 mm30 mm32 mm300 mm66 mm70 mm9,4 mm450 g
Jetzt entdecken
4003303430 x 34 mm30 mm34 mm300 mm66 mm75 mm9,4 mm480 g
Jetzt entdecken
4003323632 x 36 mm32 mm36 mm325 mm70 mm80 mm10 mm546 g
Jetzt entdecken
4003343634 x 36 mm34 mm36 mm325 mm75 mm80 mm10 mm619 g
Jetzt entdecken
4003364136 x 41 mm36 mm41 mm375 mm80 mm88 mm11 mm800 g
Jetzt entdecken
4003414641 x 46 mm41 mm46 mm425 mm88 mm94,5 mm12 mm980 g
Jetzt entdecken
400355075,5 mm x 7 mm5,5 mm7 mm120 mm14,8 mm17 mm3,7 mm17 g
Jetzt entdecken

Technologien und Leistungsmerkmale

Double T-profile.

The double T-profile used for the STAHLWILLE open-jaw and ring spanners saves material where it is not needed and guarantees two things at once: peak dimensional stability and extremely low weight, whichever spanner size you pick up. As a result, tool-kits from STAHLWILLE weigh considerably less. But that is not all: the double T-profile from STAHLWILLE fits snugly in the hand, allows fatiguefree working and can be gripped comfortably and safely. This also increases user safety.

Eigenschaften

    • Straight design, jaw position 15°
    • Sturdy, slim and lightweight intelligent design
    • High bending strength due to double T-profile
    • STAHLWILLE round finish ensures a surface that is pleasant to the skin and has a good grip
    • Extremely sturdy, exceptionally durable
    • Drop-forged, hardened and cooled in oil bath
    • Chrome-alloy steel, chrome plated
    • DIN 3110, ISO 10102

Produkt-Highlights

More Choice.

As one of only a few manufacturers, STAHLWILLE offers a comprehensively diverse range of metric, imperial, spline drive and TORX® spanners.

More robust.

When force is applied to a spanner, the greatest force acts on the area between the jaw and the shank, which is why STAHLWILLE spanners are reinforced at this point. The special design makes the load zones more resilient, which reduces the risk of breakage to a minimum.

More Accurate.

Our very tight manufacturing tolerances and reproducible dimensional accuracy ensure that one STAHLWILLE spanner is as close-fitting as the next. In this way, both open-jaw and ring spanners will always firmly hug the fastener head – for excellent power-lock.
