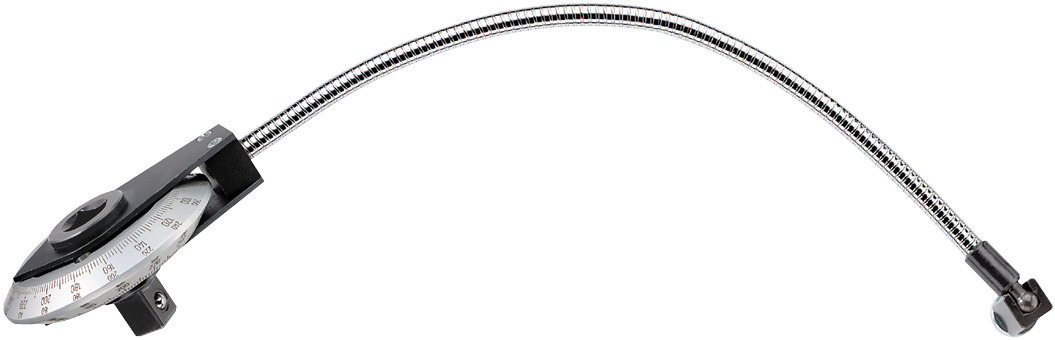

Angle measuring discs
Angle measuring discs
7380N/7385N
Artikel-Nr. 54010002|EAN 4018754136131
- For rotation angle controlled screw tightening, with stationary reading point.
Produkt-Varianten

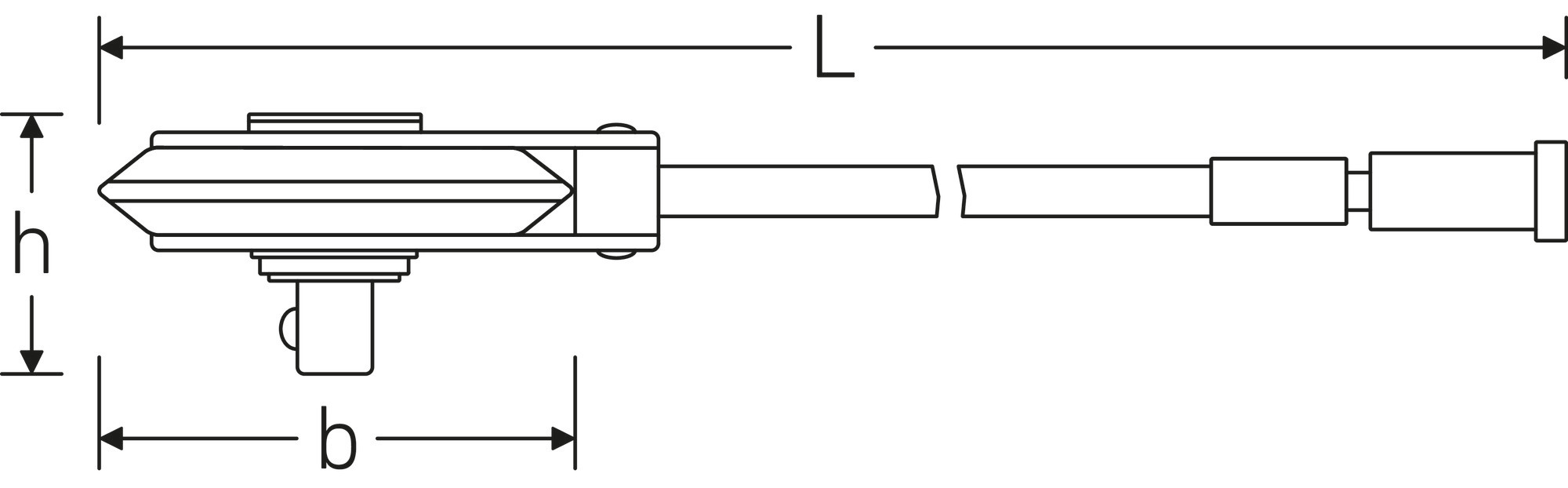

| Product no. | Model no. | Scale division | Length mm (L) | Width mm (b) | Height mm (h) | External square [inch] | Internal square [inch] | Weight | |
|---|---|---|---|---|---|---|---|---|---|
| 54010001 | 7380N | 2° | 416 mm | 78 mm | 43 mm | 1/2 " | 1/2 " | 505 g | Jetzt entdecken |
| 54010002 | 7385N | 2° | 416 mm | 78 mm | 76 mm | 3/4 " | 3/4 " | 720 g |
Eigenschaften
- for angle controlled bolt/screw tightening, with static read-off point
- read-off possible from any angle thanks to a pair of angled scales
- removable magnet for attaching sockets with 1/2" internal square drive
- for use in conjunction with tightening tools such as service MANOSKOP® No 730N
- since this tightening method requires a pre-determined snug torque to be applied, it is essential to choose a torque wrench covering both snug torque as well as maximum torque required to reach the recommended tightening angle
- whether 1/2" or 3/4" square drive torque angle gauge is used depends upon the square drive of the appropriate torque wrench employed
