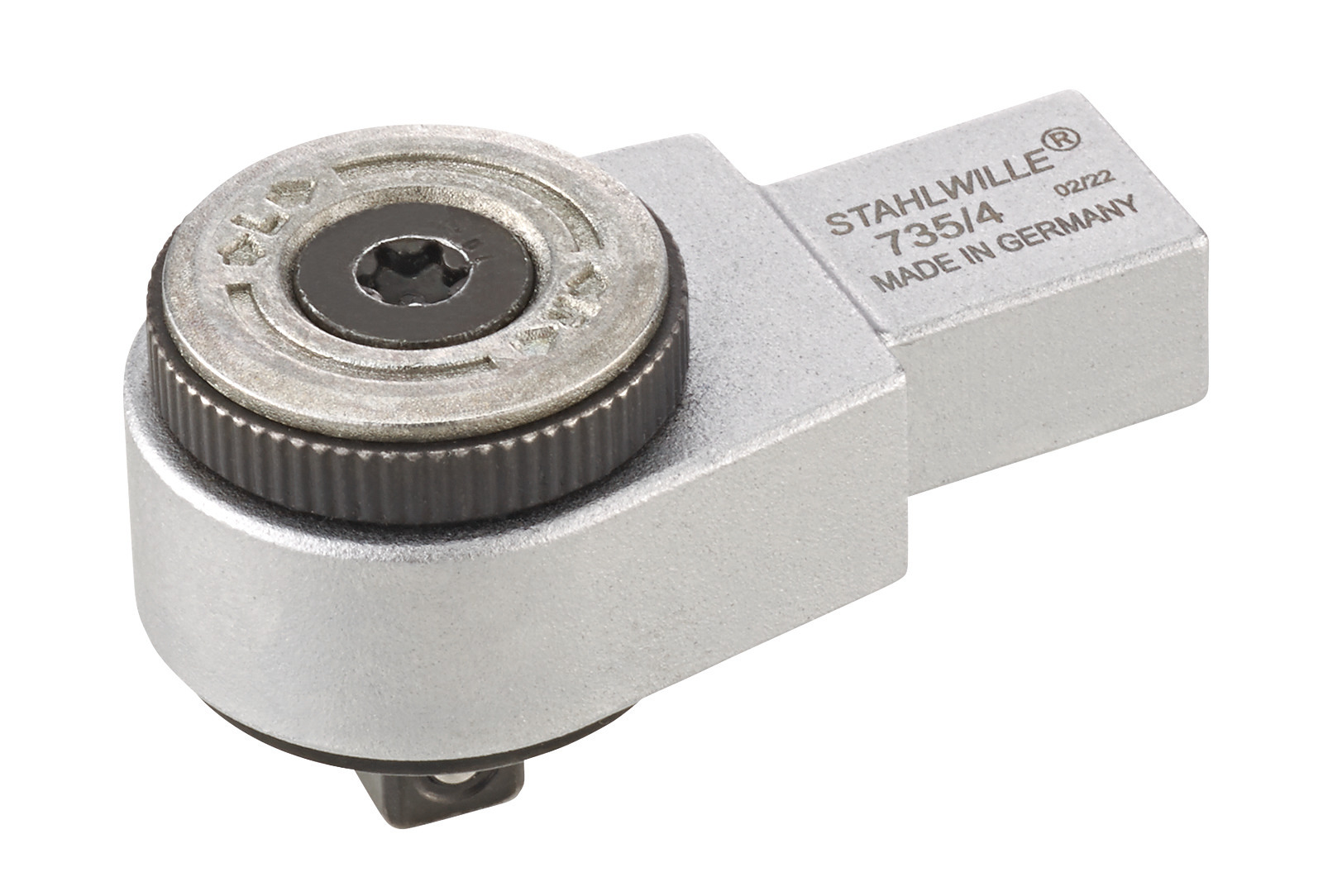

Fine-tooth ratchet insert adaptor
Fine-tooth ratchet insert adaptor
735
Artikel-Nr. 58250004|EAN 4018754334735
- Made in Germany – STAHLWILLE fine-tooth ratchet for {369}sockets, interchangeable, chrome alloy steel, 58250004.
- Suitable for all tools (independent of manufacturer) with9 x 12 mm recording
- 60 sprockets allow for a working angle of only 6 °° – facilitating efficient working even in confined spaces
- Maximum torque: 42 N·m
Produkt-Varianten
| Art. no. | Size | External square drive (inch) | Number of teeth | Working angle | Size square socket [inside square drive] | max. torque | S | Weight | |
|---|---|---|---|---|---|---|---|---|---|
| 58250004 | 4 | 1/4 | 60 | 6 ° | 9 x 12 mm | 42 N·m | 17,5 mm | 82 g | |
| 58250005 | 5 | 3/8 | 60 | 6 ° | 9 x 12 mm | 100 N·m | 17,5 mm | 150 g | Jetzt entdecken |
| 58250010 | 10 | 1/2 | 60 | 6 ° | 9 x 12 mm | 100 N·m | 17,5 mm | 147 g | Jetzt entdecken |
| 58250020 | 20 | 1/2 | 60 | 6 ° | 14 x 18 mm | 300 N·m | 25 mm | 302 g | Jetzt entdecken |
| 58250040 | 40 | 3/4 | 60 | 6 ° | 14 x 18 mm | 400 N·m | 25 mm | 515 g | Jetzt entdecken |
| 58250065 | 40HD | 3/4 | 60 | 6 ° | 14 x 18 mm | 650 N·m | 30 * mm | 725 g | Jetzt entdecken |
Eigenschaften
- reversible
- 60 teeth
