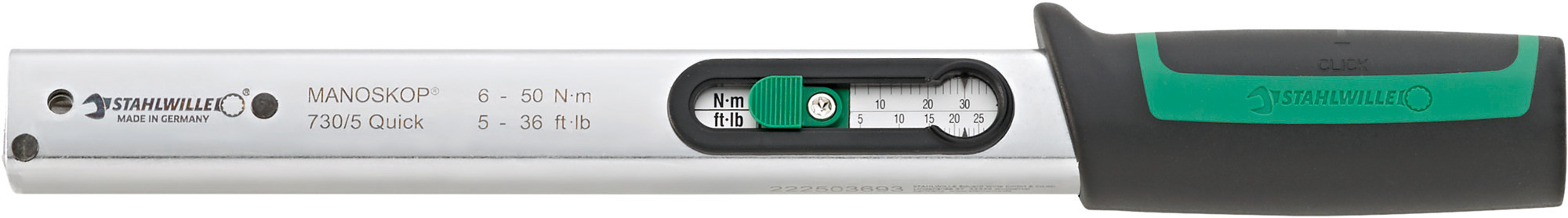

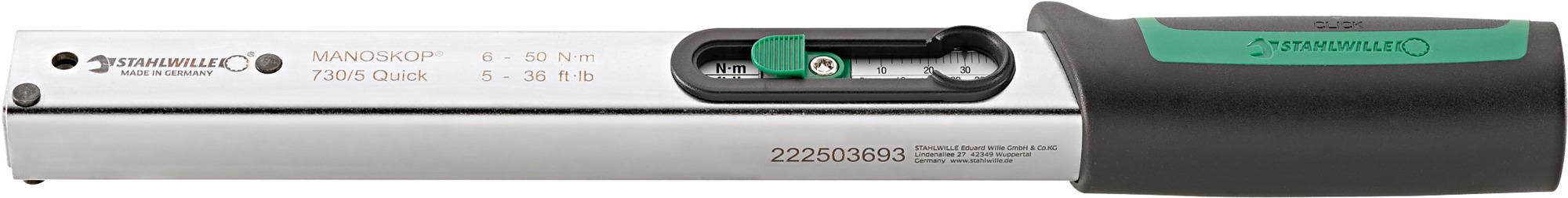

Torque wrench service MANOSKOP® with holder for insert tools
Torque wrench service MANOSKOP® with holder for insert tools
730/5 Quick
Artikel-Nr. 50184005|EAN 4018754268856
- Fast setting with easy-to-operate clamping lever in the handle, integrated lens for better readability of the set value
- Efficient. No reset to "0" necessary, as measuring element is only strained during the tightening process
- Ergonomically shaped, non-slip adjustment element with thumb recess and optimised ball handle for fatigue-free work
- Releasing torque wrench with receptacle for exchangeable plug-in tools, double stop signal (tactile and audible), left-hand tightening by turning over the plug-in tools
- With calibration certificate, display deviation ± 4%
Produktvideo
Produkt-Varianten
| Art. no. | Size | Measuring range N·m | Measuring range ft·lb | Scale division [E1] | Scale division [E2] | Length mm (L) | Width mm (b) | Height mm (h) | Size square socket [inside square drive] | LF | SF | Weight | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50184005 | 5 | 6-50 N·m | 5-36 ft·lb | 2 N·m | 1 ft·lb | 315 mm | 28 mm | 23 mm | 9 x 12 mm | 288 mm | 17,5 mm | 780 g | |
| 50184010 | 10 | 20-100 N·m | 15-72,5 ft·lb | 2,5 N·m | 2,5 ft·lb | 370 mm | 28 mm | 23 mm | 9 x 12 mm | 343 mm | 17,5 mm | 936 g | Jetzt entdecken |
| 50184012 | 12 | 25-130 N·m | 20-95 ft·lb | 2,5 N·m | 2,5 ft·lb | 410 mm | 28 mm | 23 mm | 14 x 18 mm | 390 mm | 25 mm | 1074 g | Jetzt entdecken |
| 50184020 | 20 | 40-200 N·m | 30-145 ft·lb | 5 N·m | 5 ft·lb | 455 mm | 28 mm | 23 mm | 14 x 18 mm | 435 mm | 25 mm | 1310 g | Jetzt entdecken |
| 50184030 | 30 | 60-300 N·m | 50-220 ft·lb | 10 N·m | 10 ft·lb | 520 mm | 28 mm | 23 mm | 14 x 18 mm | 500 mm | 25 mm | 1400 g | Jetzt entdecken |
| 50184040 | 40 | 80-400 N·m | 60-300 ft·lb | 10 N·m | 10 ft·lb | 590 mm | 28 mm | 23 mm | 14 x 18 mm | 570 mm | 25 mm | 1540 g | Jetzt entdecken |
| 50184065 | 65 | 130-650 N·m | 100-480 ft·lb | 20 N·m | 20 ft·lb | 875 mm | 30,6 mm | 25,6 mm | 14 x 18 mm | 855 mm | 25 mm | 3192 g | Jetzt entdecken |
| 50184565 | II/65 | 130-650 N·m | 100-480 ft·lb | 20 N·m | 20 ft·lb | 897 mm | 30,6 mm | 25,6 mm | 22 x 28 mm | 907 mm | 55 mm | 4104 g | Jetzt entdecken |
Technologien und Leistungsmerkmale
QuickRelease
The QuickRelease safety lock prevents unintentional loss of insert tools. These click securely into place and are only released again at the push of a button for a quick tool change.
Eigenschaften
- click-type
- the measuring element is only under load while force is being applied, no need for manual reset to zero
- mount for interchangeable insert/shell tools
- QuickRelease safety lock (sizes 5–65)
- rapid setting thanks to easy-action locking lever in the handle (sizes 5–65)
- ergonomically designed, non-slip adjuster with a thumb recess
- optimised convex handle for strain-free working
- dual stop signal
- twin scales N·m/ft·lb and N·m/in·lb (sizes 5–80)
- on request also available as an N·m-only version without twin scale (sizes 5-65)
- can be applied for either clockwise or anticlockwise tightening by turning the inserts over
- any force applied to the tool after the 'click' or applied in the opposite direction to the current function – e.g. forcible loosening of a jammed screw - does not act on the trigger mechanism and cannot cause damage to it
- calibration using perfectControl® calibrating unit No 7794 or calibration system No 7706. Readjustment does not require disassembly
- certificate in accordance with DIN EN ISO 6789-2:2017
- display deviation value ± 4%
Produkt-Highlights
Fast.
Rapid setting thanks to the easy-action locking lever in the handle. Ergonomically designed, non-slip adjuster with a thumb recess for fast, safe setting of the slider.
Simple.
Quick adjustment from outside, no disassembly of the torque wrench required, with two adjustment points for the maximum & minimum values.
Protected.
The internal mechanism is extremely resistant to mechanical wear and well protected against dirt and soiling inside the outer housing.
Flexible rod principle.
Mechanical torque wrenches from STAHLWILLE have a wear-resistant trigger system with a ¢exible rod. In contrast to conventional torque wrenches with spiral springs, the STAHLWILLE system eliminates one key work step: once the fastener has been tightened, it is not necessary to reset the wrench to »0«.
