Torque wrench MANOSKOP® with fixed square drive
Torque wrench MANOSKOP® with fixed square drive
720NF/80
Artikel-Nr. 50190081|EAN 4018754031931
- 160-800 N·m.
Produkt-Varianten

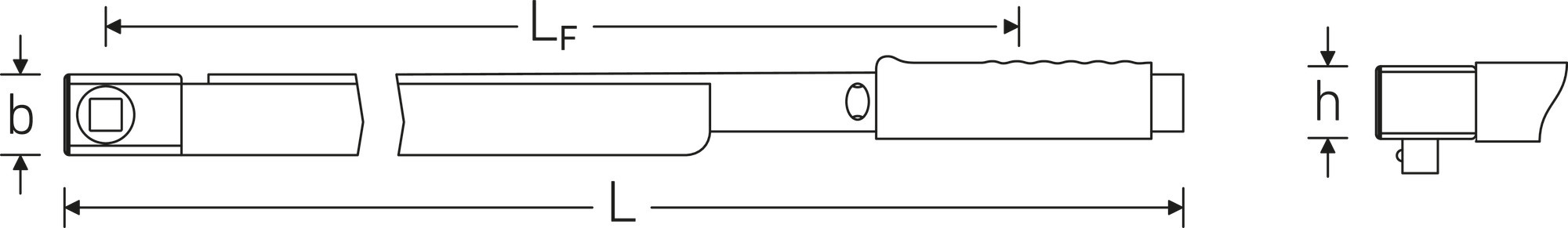

| Product no. | Measuring range N·m | Measuring range ft·lb | MA N·m | Nominal value N·m | External square drive (inch) | Length mm (L) | Width mm (b) | Height mm (h) | LF | Weight | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50190081 | 160-800 N·m | 120-600 ft·lb | 160 N·m | 800 N·m | 3/4 | 1034 mm | 45 mm | 42 mm | 938 mm | 5650 g |
Technologien und Leistungsmerkmale
Factory calibration certificate (ISO calibration)
Our torque tools, transducers and test equipment are delivered with a factory calibration certificate in accordance with DIN EN ISO 6789-2 and based on DKD-R 10-8 for traceability of the measuring equipment.
Low-wear flexible rod system
Our torque wrench is equipped with a low-wear trigger system with a bending beam. Unlike conventional torque wrenches with coiled springs, the flexible rod is not preloaded in unloaded state, which means that the "spring" does not need to be reset to "0" after use.
Eigenschaften
160-800 N·m
3/4" external square drive
Produkt-Highlights
Adjustment does not require disassembly.
Quick adjustment from outside, no disassembly of the torque wrench required, with two adjustment points for the maximum & minimum values.
