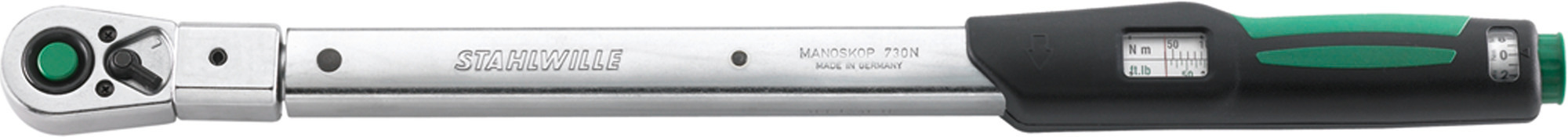

Torque wrench service MANOSKOP® with fixed QuickRelease ratchet
Torque wrench service MANOSKOP® with fixed QuickRelease ratchet
730NR/5QR FK
Artikel-Nr. 96502105|EAN 4018754180493
- Display deviation ± 4 %.
Produkt-Varianten

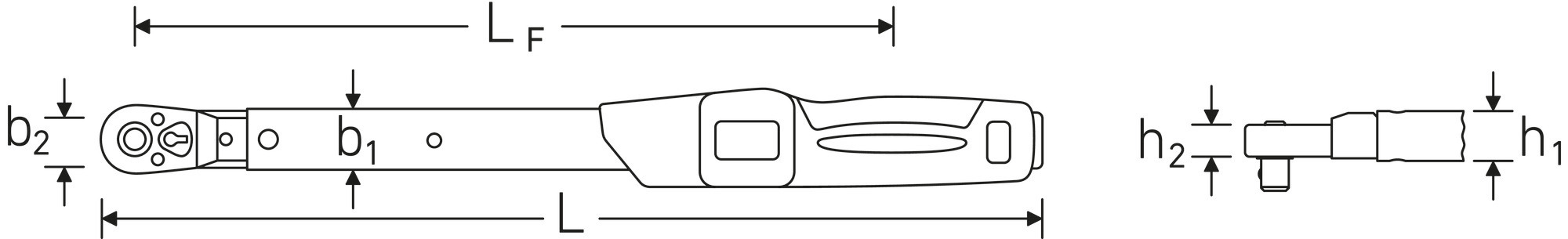

| Product no. | Size | Measuring range N·m | Measuring range ft·lb | External square drive (inch) | Length mm (L) | Width mm (b) | b1 | b2 | Height mm (h) | Height mm (h1) | Height mm (h2) | Fine scale division | LF | Weight | Weight with box | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 96502105 | 5QR FK | 10-50 N·m | 7-37 ft·lb | 3/8 | 372,5 mm | 92 mm | 28 mm | 29 mm | 70 mm | 23 mm | 14,5 mm | 0,25 N·m | 291 mm | 961 g | 1386 g | |
| 96502110 | 10QR FK | 20-100 N·m | 15-75 ft·lb | 1/2 | 428,5 mm | 92 mm | 28 mm | 29 mm | 70 mm | 23 mm | 14,5 mm | 0,5 N·m | 346,5 mm | 1129 g | 1554 g | Jetzt entdecken |
| 96502120 | 20QR FK | 40-200 N·m | 30-150 ft·lb | 1/2 | 526 mm | 92 mm | 28 mm | 41 mm | 70 mm | 23 mm | 18 mm | 1 N·m | 438,5 mm | 1589 g | 2014 g | Jetzt entdecken |
Technologien und Leistungsmerkmale
QuickRelease
The QuickRelease safety lock prevents unintentional loss of insert tools. These click securely into place, and are only released again at the push of a button for a quick tool change.
Factory calibration certificate (ISO calibration)
Our torque tools, transducers and test equipment are delivered with a factory calibration certificate in accordance with DIN EN ISO 6789-2 and based on DKD-R 10-8 for traceability of the measuring equipment.
Low-wear flexible rod system
Our torque wrench is equipped with a low-wear trigger system with a bending beam. Unlike conventional torque wrenches with coiled springs, the flexible rod is not preloaded in unloaded state, which means that the "spring" does not need to be reset to "0" after use.
2-component handle
Our 2-component handle is non-slip and ergonomically designed. It is resistant to the most common oils, greases, fuels, brake fluids and Skydrol. The arrow markings on the handle indicate the direction of operation.
Eigenschaften
- in sturdy plastic box
- with QuickRelease safety lock
- deviation of indication ± 4%
Produkt-Highlights

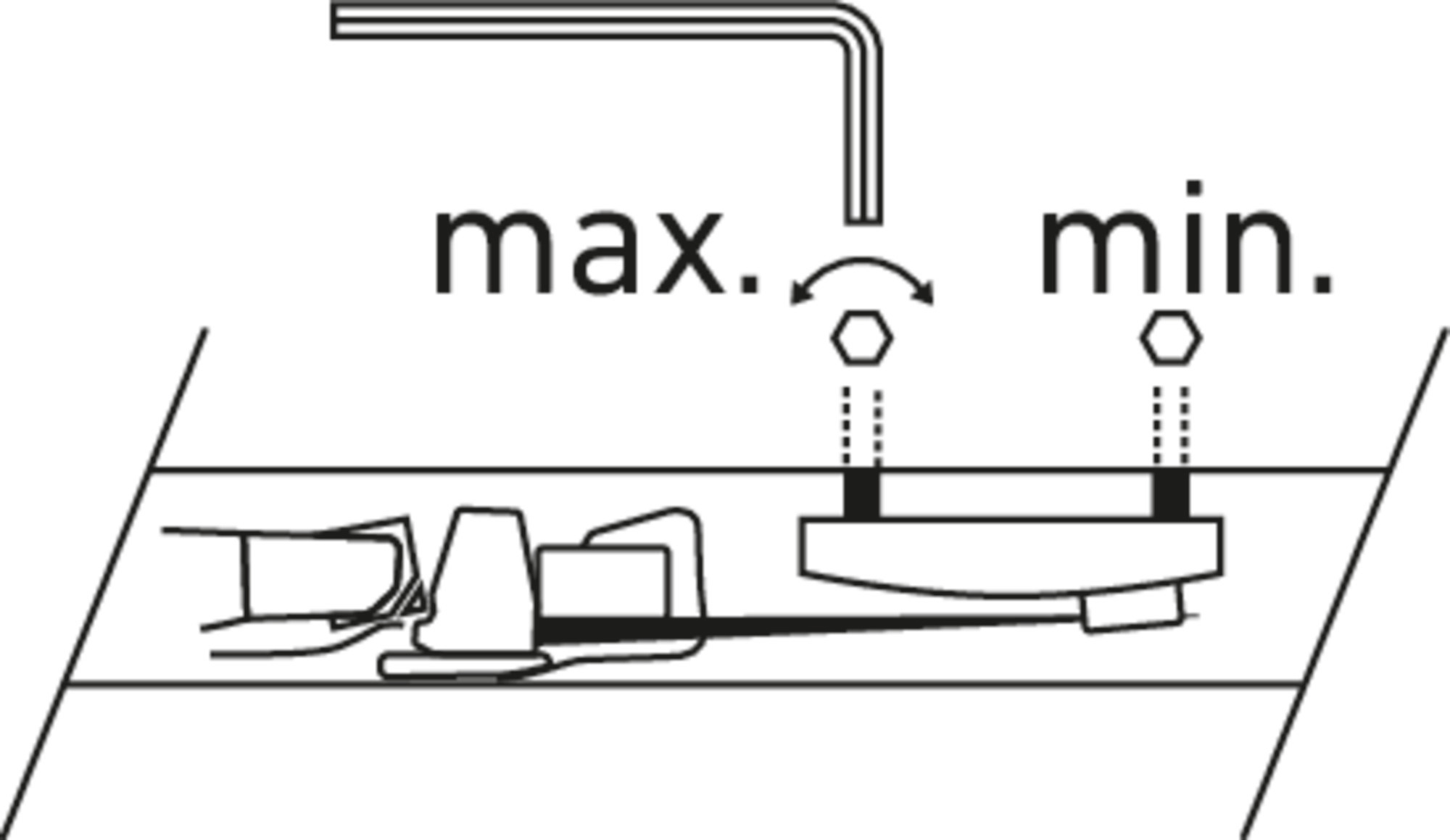

Adjustment does not require disassembly.
Quick adjustment from outside, no disassembly of the torque wrench required, with two adjustment points for the maximum & minimum values.
Clear fine adjustment.
The easy-to-use and easy-to-read double scale in N·m/ft·lb allows precise and easy target torque adjustment for reliable and accurate application.
Triggering dual stop signal.
When the target torque is reached, MANOSKOP® 730N provides a noticeable tactile dual stop signal.
