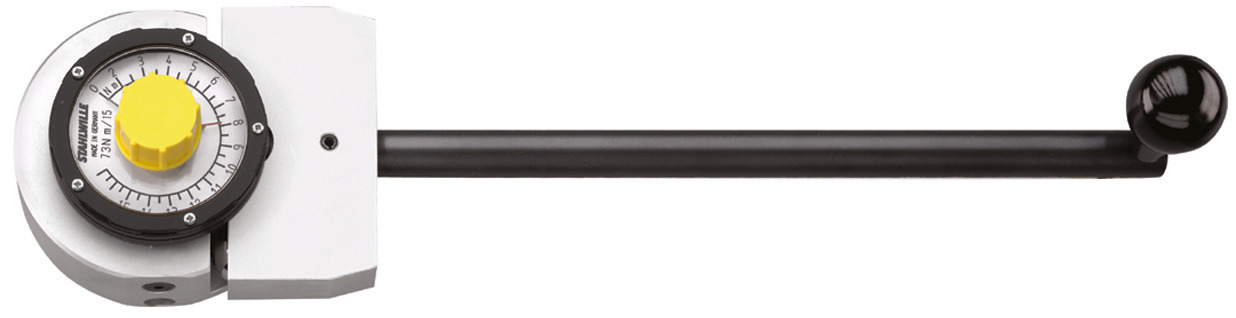

Friction gauge
Friction gauge
73Nm/15
Artikel-Nr. 50240015|EAN 4018754163830
Produkt-Varianten

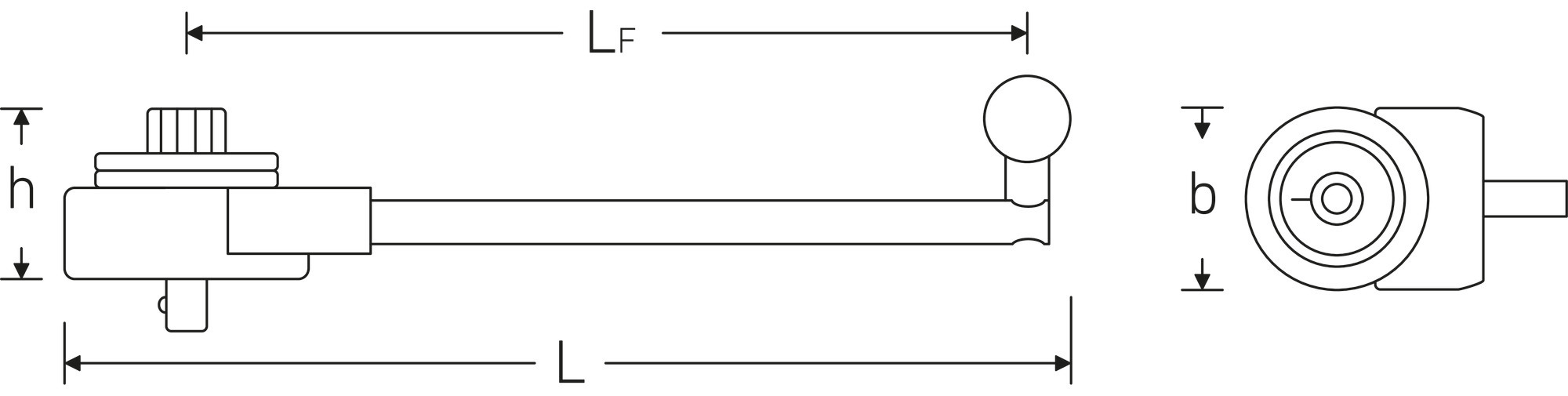

| Art. no. | Model | Measuring range N·m | MA N·m | Nominal value N·m | External square drive (inch) | Length mm (L) | Width mm (b) | Height mm (h) | LF | Weight | Scale division N·m | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50240015 | 73Nm/15 | 2-15 N·m | 2 N·m | 15 N·m | 1/2 | 298,5 mm | 72 mm | 50 mm | 250 mm | 676 g | 0,5 N·m |
Technologien und Leistungsmerkmale
Factory calibration certificate (ISO calibration)
Our torque tools, transducers, and test equipment are delivered with a factory calibration certificate in accordance with DIN EN ISO 6789-2:2017, and based on DKD-R 10-8 for traceability of the measuring equipment.
Eigenschaften
- indicating type
- drag indicator dial gauge
- with built-in square for clockwise measurements
- no 'blinking cursor' during the measurement process
- weight reduction through use of aluminium inserts
- calibration certificate in accordance with DIN EN ISO 6789-2:2017
- accuracy ± 4%
In unserem Kundenportal bieten wir weitere Informationen und Downloads.
