7707-2W

Artikel-Nr. 96521072|EAN 4018754155781
  • Electronic workshop testing device for checking and adjusting indicating and setting torque wrenches.
  • Simple, quick and reliable testing of torque wrenches to ensure quality in production.
  • Measurement in the large torque range up to 1,100 N·m.
  • Simple changing of transducers enables quick adjustment to different measuring tasks and specific testing requirements.

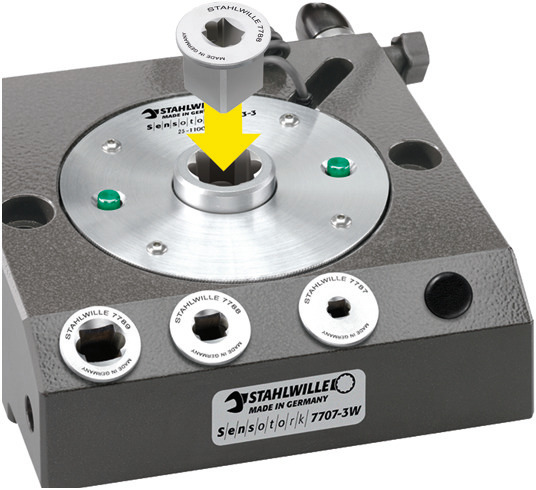

  • The interchangeable square adaptors stored in the base allow flexible use with standard square drive sizes.

Produkt-Varianten

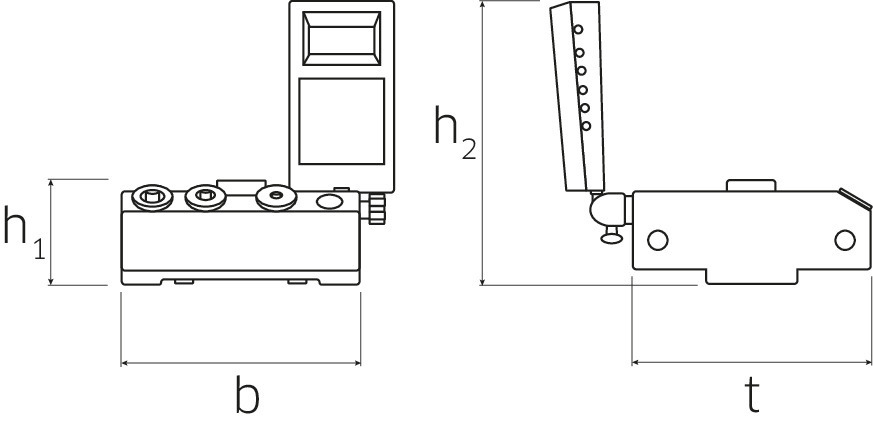

Art. no.ModelModel no.Measuring range N·mWidth mm (b)Height mm (h1)Height mm (h2)Internal square [inch]tWeightWeight with box
965210727707-2W7707-2W2-100 N·m180 mm79 mm215 mm3/8 "180 mm7025 g10300 g
965210807707-1W7707-1W0,4-20 N·m180 mm79 mm215 mm1/4 "180 mm6255 g9500 g
Jetzt entdecken
965210827707-3W7707-3W25-1100 N·m180 mm79 mm215 mm3/4 "180 mm7495 g11000 g
Jetzt entdecken
965210837707 W7707-2-1W4-200 N·m180 mm79 mm215 mm1/2 "180 mm7511 g10975 g
Jetzt entdecken
965210847707 W7707-2-2W8-400 N·m180 mm79 mm215 mm3/4 "180 mm7654 g11100 g
Jetzt entdecken
965210857707 W7707-1-2W0,2-10 N·m180 mm79 mm215 mm1/4 "180 mm6255 g9500 g
Jetzt entdecken
965210867707 W7707-1-3W0,2-10 N·m180 mm79 mm215 mm1/4 "180 mm6255 g9500 g
Jetzt entdecken

Technologien und Leistungsmerkmale

QuickRelease

The QuickRelease safety lock helps you to quickly mount and change transducers. The sensors lock into the calibration system adapter and only unlock again at the push of a button.

Factory calibration certificate (ISO calibration)

Our torque tools, transducers, and test equipment are delivered with a factory calibration certificate in accordance with DIN EN ISO 6789-2:2017, and based on DKD-R 10-8 for traceability of the measuring equipment.

Eigenschaften

    • for testing indicating and clicking torque wrenches
    • compact electronic testing device consisting of:

    1 patented transducer

    1 safety lock

    1 display

    1 stand with 1.5 metre cable for the display unit

    1 spiral cable

    1 power supply (110-230 V with interchangeable plug adaptors)

    4 interchangeable square drive adaptors for the square drive

    • large LC display for optimum readability
    • horizontal or vertical orientation
    • for controlled right and left measurements
    • 3 operating modes: running display of the applied torque (Track), display of the torque on triggering/click point detection (First-Peak), peak value display (Peak-Hold)
    • additional control from the display of the actual tightened torque on triggering torque wrenches
    • with QuickRelease safety lock
    • low transverse forces due to flat transducers
    • automatic detection of transducers
    • particularly large measurement range from about 2-100 % of the nominal value
    • 3 measuring units (N·m, ft·lb, in·lb)
    • software no. 7759-4, including USB adaptor and jack cable, allows the measured values to be transmitted to a PC (no additional external power source, power from the PC)
    • when recalibrating the individual transducers, the test equipment remains operational on site
    • complies with the specifications of guideline DKD-R 10-8
    • with accreditated calibration certificate
    • delivered in a sturdy plastic box
    • accuracy ± 1%

Produkt-Highlights

Flexible mounting.

Whether mounted horizontally or vertically - the well-designed mounting points, compact design and rotatable display allow flexible positioning anywhere in the workshop.

Customised drive solution.

Up to 4 square adapters are integrated into the mounting block of the device, within easy reach, to enable flexible use with standard square drive sizes.

Adaptive measuring system.

Our SENSOTORK® 7707W features easily interchangeable transducers. This gives it the ability to be customised for individual measurement requirements.

Resistance to transverse forces.

The high level of accuracy is achieved by flat transducers and a special technology for immediate data processing directly in the transducer. Thanks to an integrated measurement amplifier, the testing device is resistant to bending moments and transverse forces.
