Torque screwdriver tester
Torque screwdriver tester
SmartCheck USB
- Electronic testing device for checking and adjusting indicating and triggering torque wrenches.
- Simple, quick and reliable testing of torque screwdrivers to ensure quality in production.
- Simple documentation of the measured values on the PC via USB interface.
- For maximum user-friendliness, the device can be mounted in a horizontal or vertical test position.
- The large LCD can be rotated 180° and is easy to read from any position.
Produkt-Varianten
| Art. no. | Model | Model no. | Measuring range N·m | Measuring range ft·lb | Measuring range in·lb | Width mm (b) | Height mm (h) | Internal square [inch] | t | Weight | Weight with box | Number of digits | Keywords | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 96521206 | SmartCheck USB | SmartCheck USB 10S | 1-10 N·m | 0,74-7,4 ft·lb | 8,9-88,5 in·lb | 120 mm | 124 mm | 1/4 " | 167 mm | 5210 g | 6556 g | 4 | ||
| 96521207 | SmartCheck 10 USB | SmartCheck USB 10 | 1-10 N·m | 0,74-7,4 ft·lb | 8,9-88,5 in·lb | 120 mm | 124 mm | 1/4 " | 167 mm | 5210 g | 6556 g | 4 | Jetzt entdecken | |
| 96521208 | SmartCheck 100 USB | SmartCheck USB 100 | 10-100 N·m | 7-74 ft·lb | 89-885 in·lb | 120 mm | 124 mm | 3/8 " | 167 mm | 5310 g | 6656 g | 4 | Jetzt entdecken | |
| 96521209 | SmartCheck 400 USB | SmartCheck USB 400 | 40-400 N·m | 30-295 ft·lb | 354-3540 in·lb | 120 mm | 124 mm | 3/4 " | 167 mm | 5690 g | 7036 g | 4 | Jetzt entdecken | |
| 96521210 | SmartCheck 800 USB | SmartCheck USB 800 | 80-800 N·m | 59-590 ft·lb | 708-7081 in·lb | 120 mm | 124 mm | 3/4 " | 167 mm | 5690 g | 7036 g | 4 | Jetzt entdecken | |
| 96521211 | SmartCheck USB 1500 | SmartCheck USB 1500 | 150-1500 N·m | 111-1106 ft·lb | 1328-13276 in·lb | 120 mm | 124 mm | 1 " | 167 mm | 5912 g | 7258 g | 4 | Jetzt entdecken |
Eigenschaften
- for testing indicating and triggering torque screwdrivers
- large LCD display for optimum readability
- the display, the display holder, and the base can be rotated 180°
- compact design
- waterproof display and foil keyboard; case made of impact-resistant plastic
- simple installation thanks to pre-drilled holes in the mounting bracket
- horizontal or vertical installations
- for controlled right and left-hand torque testing
- 3 operating modes: running display of the applied torque (Track), display of the torque on triggering/kink point detection (First-Peak), peak value display (Peak-Hold)
- customized input of target torques and tolerances for evaluating the measured value possible
- with integrated visual and acoustic overload protection
- 3 measuring units (N·m, ft·lb, in·lb)
- micro USB interface for data export and for optional power supply
- data storage for up to 200 data records, including date and time stamp
- CheckMaster documentation software for transferring values and creating test certificates is available free of charge at www.stahlwille.de
- operation via included power supply, batteries or rechargeable batteries (4 x AAA or 1 x 9V block, including adapter)
- with factory calibration certificate
- delivered in a sturdy plastic box
- display deviation ± 1%
Produkt-Highlights

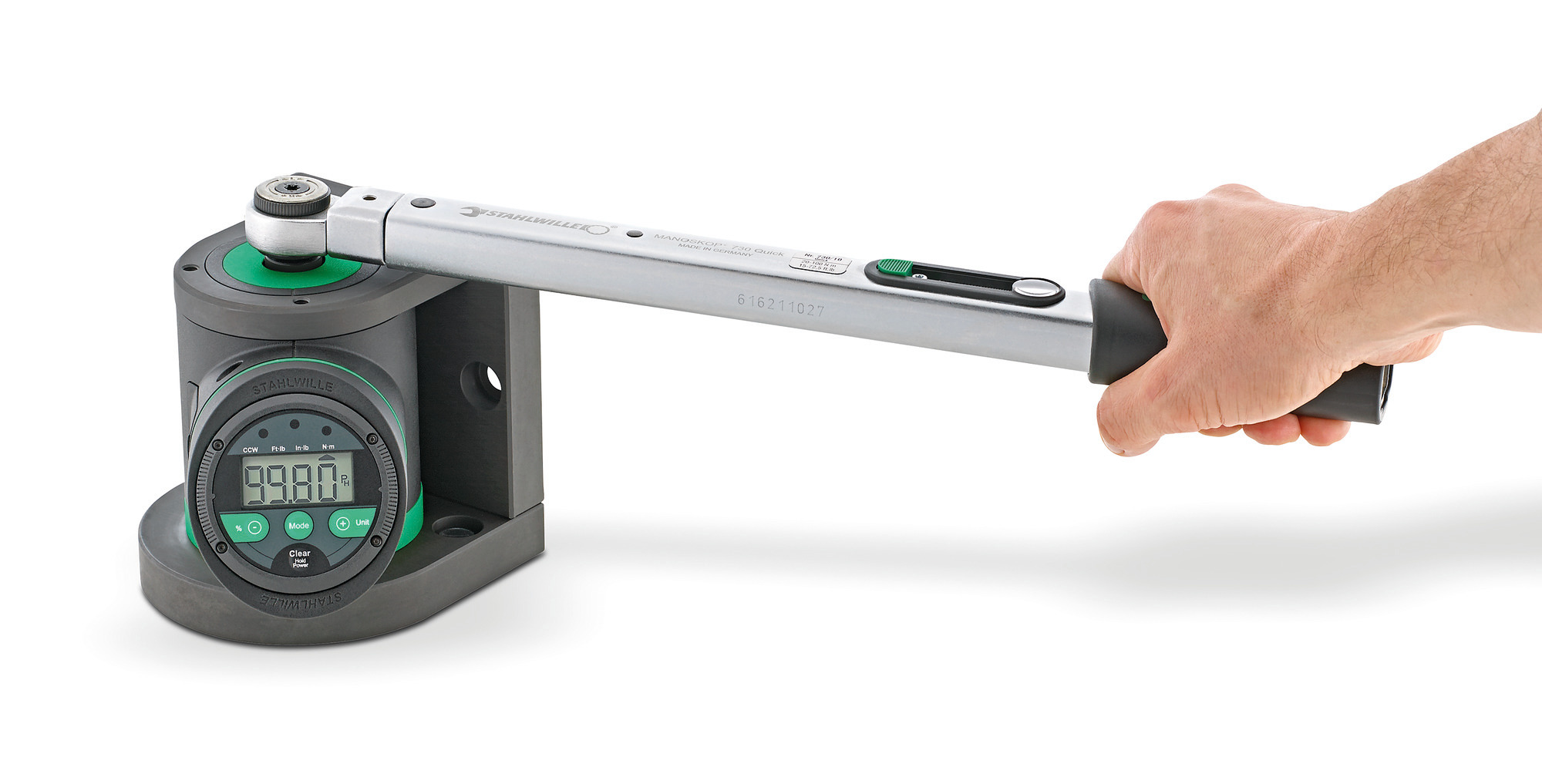

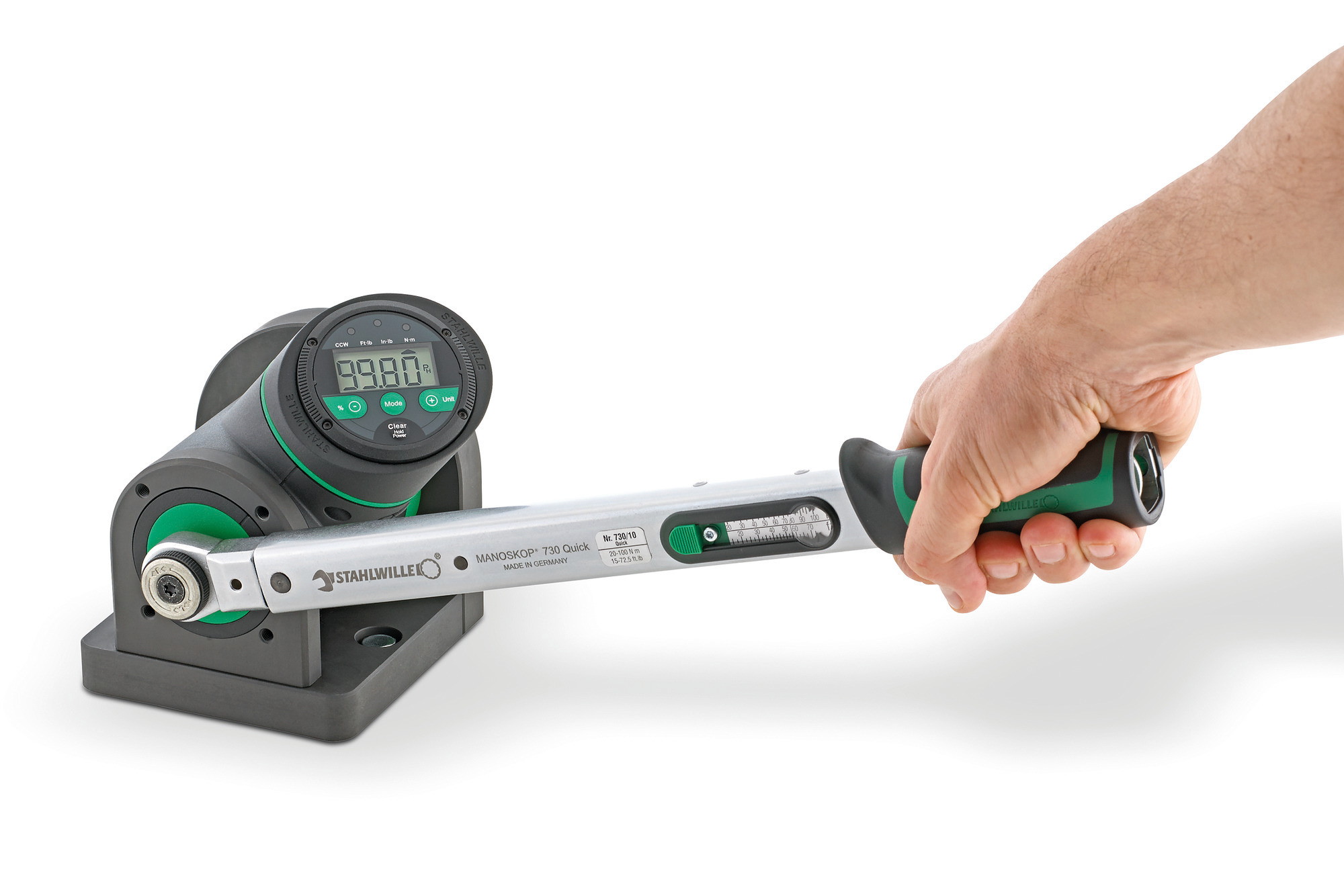

Flexible mounting.
Whether mounted horizontally or vertically, the well-designed mounting points, compact design and rotatable display allow flexible positioning anywhere in the workshop.
Optimum viewing angle.
The compact testing device can be adjusted to the optimum individual viewing angle. The display can be viewed from practically anywhere, as not only the large LCD, but also the display holder and the base body can be rotated by 180°.
Communication and power supply via USB.
SmartCheck is equipped with a convenient micro-USB interface that allows stored test values to be read out and simplifies their transfer to external systems. The USB port also serves as an optional power supply for the device.
Comprehensive documentation.
The SmartCheck testing device can be easily configured with CheckMaster software, allowing direct evaluation of measurement results. This means that all data can be read out and saved on the PC for better monitoring and optimisation of the work processes.
Plug and Work.
Our SmartCheck is intuitive and ready to use right away. It is space-saving and can be mounted flexibly with its versatile mounting options. The device is powered by either a mains power supply or batteries and can therefore be easily positioned at any workstation, even if no power outlet is available.
