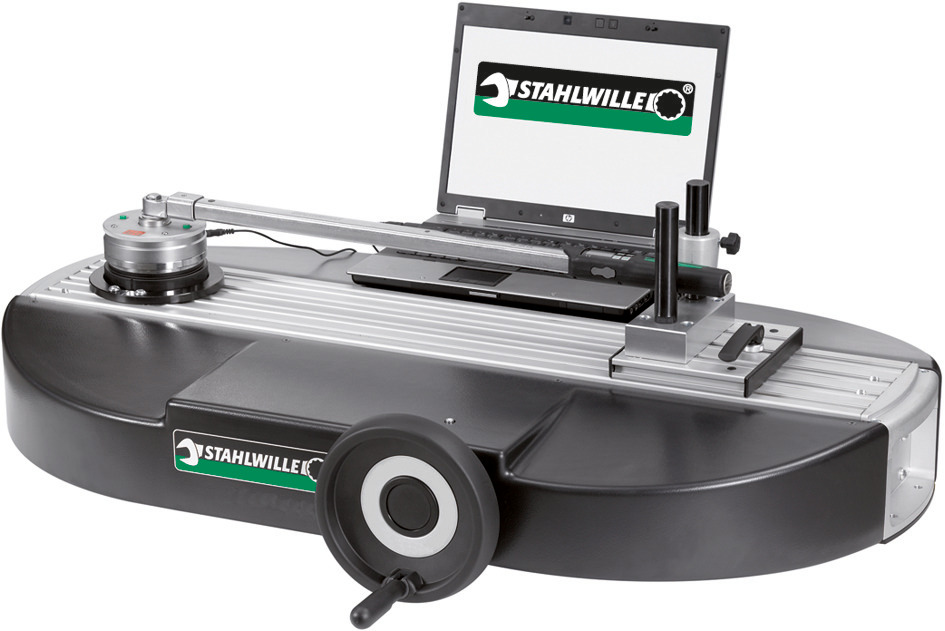

Manual calibrating unit

Manual calibrating unit

7794-1

Artikel-Nr. 96521092|EAN 4018754214884
  • Design as perfectControl® No. 7794-2, but drive via ergonomically shaped handwheel.

Produktvideo

Produkt-Varianten

Art. no.Length mm (L)Width mm (b)Height mm (h)Range N·mFunctional length (LF) max. mmfor transducersWeightProfile width
965210921060 mm705 mm355 mm1-400 N·m815 mm7728 (sizes 1-100)46400 g180 mm

Eigenschaften

    • as for perfectControl® No 7794-2, but the drive is via an ergonomically designed handwheel
    • calibration up to 1000 N·m is possible using the easily attached extension unit No 7791-1
    • protected by national and international patents
    • supplied without torque wrench, transducer or notebook

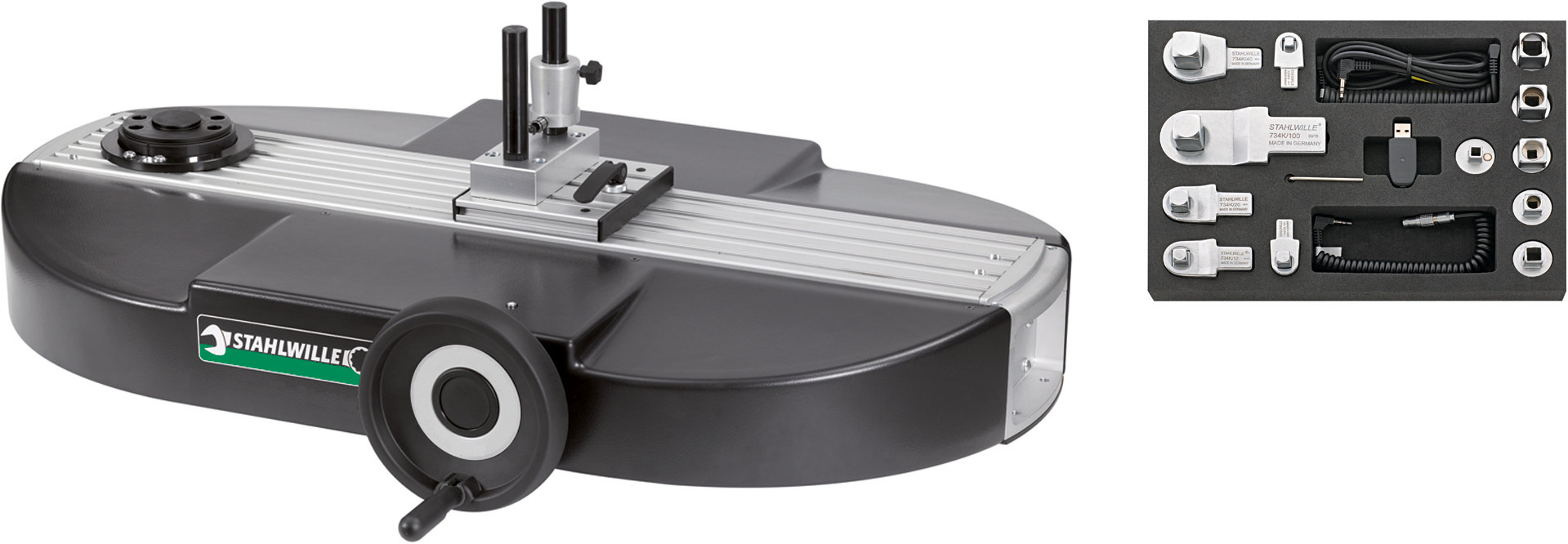

    Content:

    6 calibrating square drive insert tools No 734K (sizes 4, 5, 12, 20, 40, 100)

    6 square drive adaptors (No 409M, No 7787, No 7788, No 7789, No 7789-4, No 7789-5)

    1 USB adaptor No 7757-1

    1 software TorkMaster 7731-1

    1 jack cable No 7751

    1 spiral cable No 7752

    1 spiral cable No 7751-2 with jack plug and self-locking precision plug

    1 low-temperature cable connector

    1 hexagon key wrench No 10760CV size 2 mm are included

Downloads

Flyer: 91973048-stahlwille-br-kalibrierkonzept-en-web.pdf
PDF | 8.08 MB
Produktdatenblatt: STAHLWILLE_96521092_7794 - 1_en.pdf
PDF | 0.40 MB
