Eigenschaften

• The electronic perfectControl calibration device with manual drive significantly reduces the effort and time required for calibrations and adjustments of torque wrenches.
• Measurement without shifting the point of application of force
• avoidance of incorrect measurements with the help of the precisely mounted spindle and the ergonomically shaped handwheel
• extremely precise calibration through optimisation of the bearing and the square receptacles of the transducers
• Quick and easy change of transducers due to QuickRelease locking mechanism
• Convenient key operation for clockwise and anticlockwise measurements with automatic speed adjustment
• Time-saving by fixing the bridge support with an eccentric clamp that can be operated with one hand
• transfer of measured values via USB interface to a PC for further processing and archiving
• a calibration certificate can be printed out after calibration or saved as a PDF file
• input and output calibrations can be documented
• DIN EN ISO 6789 is supported in numerous languages during calibration. Other standards and factory specifications on request
• Can be upgraded to perfectControl calibration device no. 7794-3 for angle wrenches
• calibrations up to 1000 N·m with the help of the easy-to-mount extension no. 7791-1
• registered design, patents pending
• triggering and measuring torque spanners can be calibrated
• Calibration of transducers with the aid of torque reference spanners No. 7770-100 and 7770-1000 possible on request

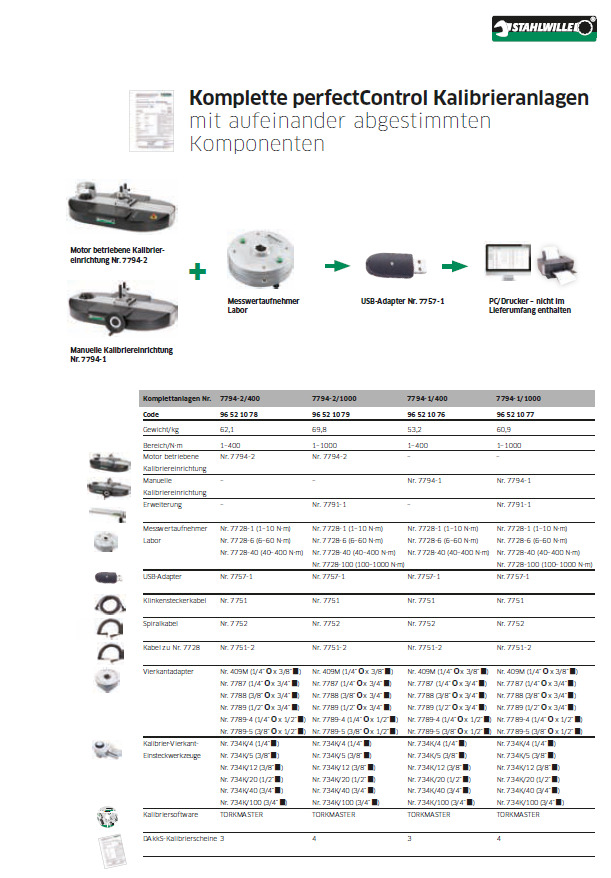

• Included in delivery:

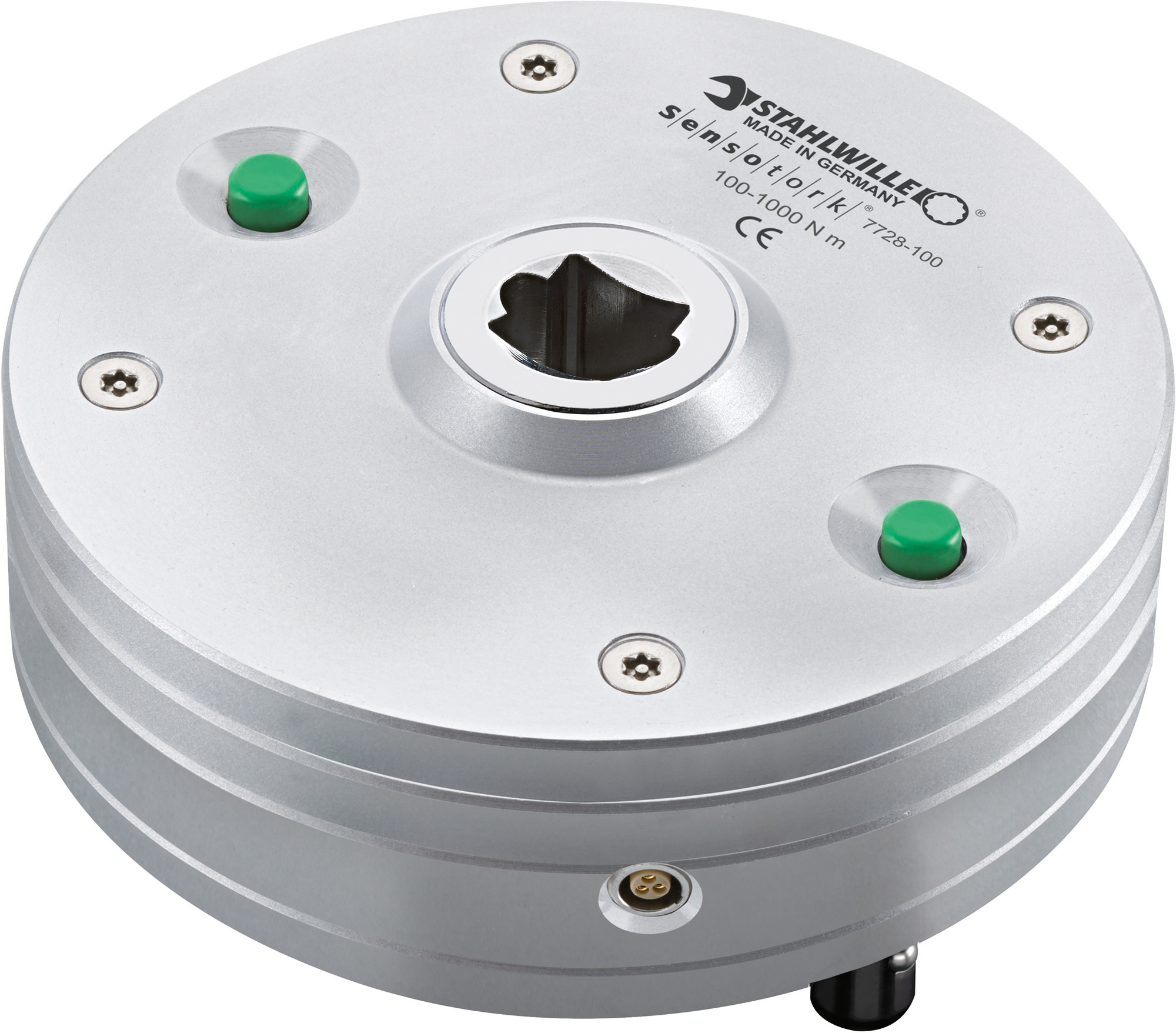

• 3 transducers
• 6 calibration square insertion tools No. 734K (sizes 4, 5, 12, 20, 40, 100)
• 6 square adapters (No. 409M, No. 7787, No. 7788, No. 7789, No. 7789-4, No. 7789-5)
• 1 USB adapter No. 7757-1
• 1 Torkmaster software no. 7731-1
• 1 jack plug cable No. 7751
• 1 spiral cable no. 775
• 1 spiral cable no. 7751-2 with jack plug and precision plug connector with self-locking mechanism
• 1 cold appliance cable set
• 1 offset screwdriver No. 10760CV SW 2 mm
• delivery without torque spanner and laptop
