Double open-ended spanner set
Double open-ended spanner set
Artikel-Nr. 96400314|EAN 4018754180486

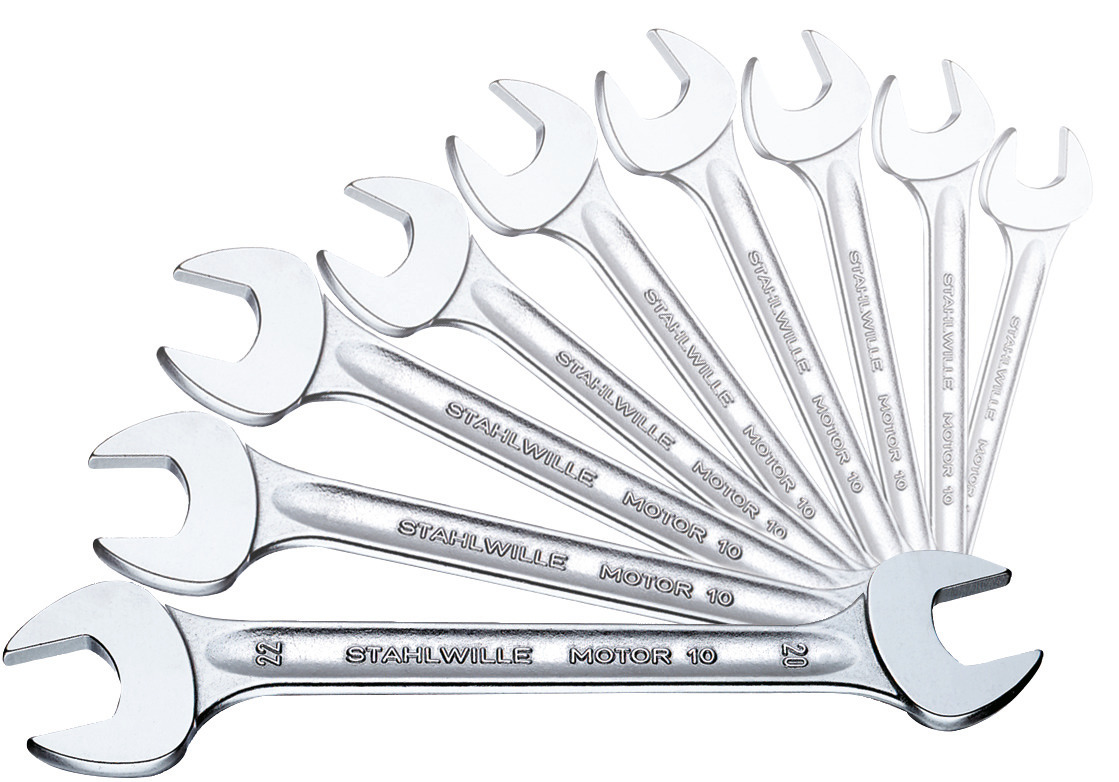

- Made in Germany – STAHLWILLE double open-ended spanner set in sturdy roll-up pouch, 9 pcs., 6-24 mm, jaw 15° angle, DIN 3113 Form A, chrome alloy steel, chrome-plated, 96400314.
- Slim construction - perfect for working in hard-to-reach places.
- Extremely resilient and durable - stronger than any screw.
- High-quality, non-slip surface texture - for safe working even with oily hands.
Produkt-Varianten
| Art. no. | Capacy | Model no. | Number of tools | Weight | |
|---|---|---|---|---|---|
| 96400314 | 6 x 7; 8 x 9; 10 x 11; 12 x 13; 14 x 15; 16 x 17; 18 x 19; 20 x 22; 21 x 24 mm | 10/9N | 9 pcs. | 918 g |
Technologien und Leistungsmerkmale
Double-T profile
Our combination and ring spanners have an additional recess in the middle of the tool. Similar to the principle of a double-T beam, this provides a tremendous load capacity and maximum strength whilst reducing weight.
Offset Shaft Design
Our spanners are specially designed with additional reinforcement in the load zones where the greatest amount of force is transmitted - namely where the jaw meets the shank - in order to prevent deformation.
Eigenschaften
- metric, differing end sizes
- straight design, jaws angled 15°
- durable, slim and lightweight design
- high flexural strength due to double-T profile
- STAHLWILLE's rounded finish ensures a non-slip, pleasant feel
- drop-forged, hardened, and cooled in an oil bath
- Chrome Alloy Steel, chrome-plated
- DIN 3110, ISO 10102
- in cardboard packaging
