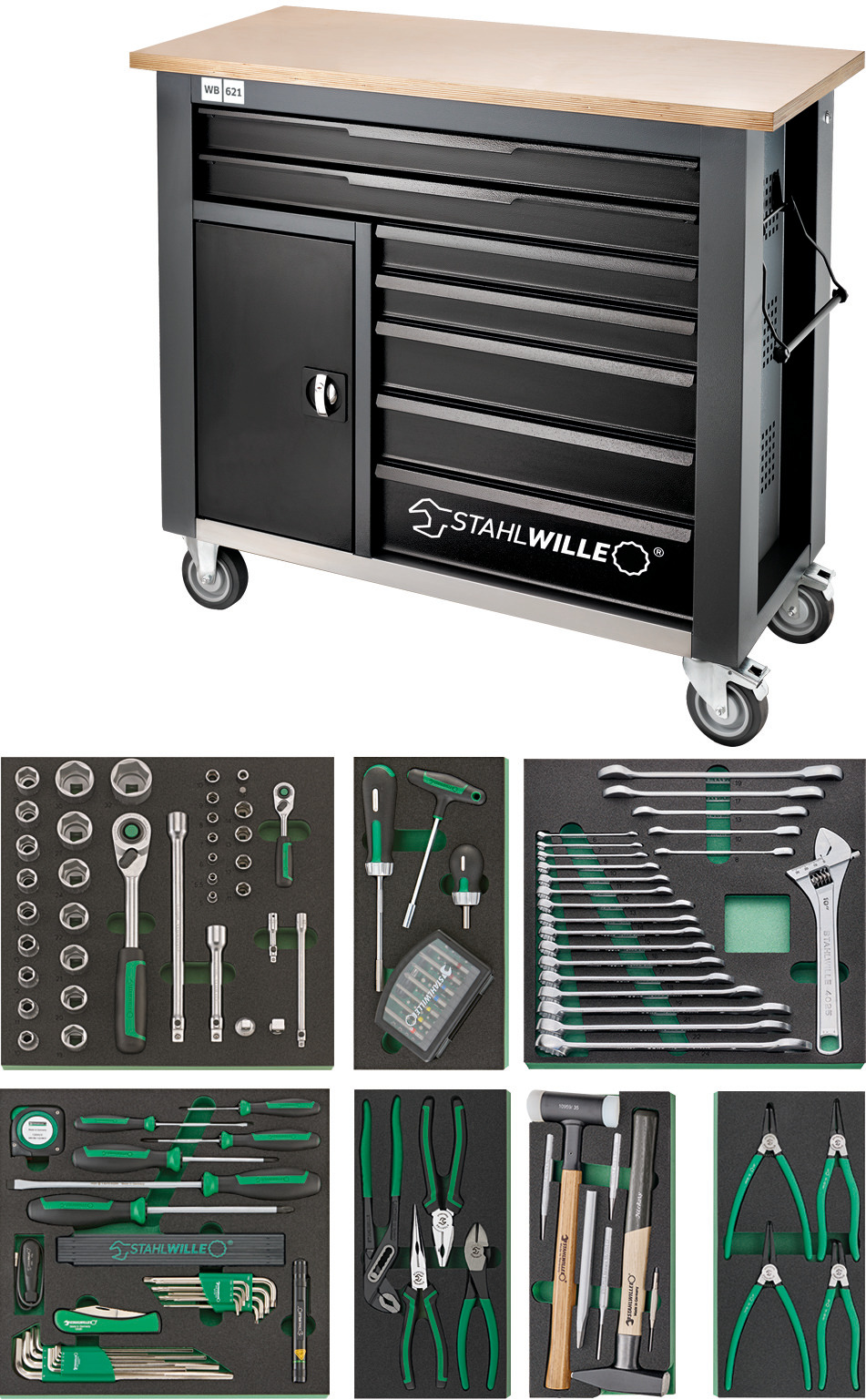

QuickRelease tool assortment with workbench

WB 621/161QR

Artikel-Nr. 98830194|EAN 4018754343355

Robust, mobile workbench including 161-piece tool set for use in various industrial ranges.
Extensive set for the highest demands: QR fine-tooth ratchets with extensions, sockets up to 32 mm, bit ratchet screwdriver and bit box, screwdriver, various pliers and much more.
Tools for high force transmissions: 1/2" sockets, locking pliers, various screwdrivers, etc.
WB 621 with 7 fully extendable drawers, a cabinet section with height-adjustable shelf and cabling.
The tools are securely integrated in durable, chemical-resistant TCS inlays with precise recesses and signal surfaces.

Product no.	Model	Length mm (L)	Width mm (b)	Height mm (h)	Number of drawers	Number of tools	Colour	Weight (g)
98830194	WB 621/161QR	500 mm	1150 mm	1045 mm	7 + 1 Fach	161 pcs.	anthracite, RAL 7016	107500 g

Product no.

Model

Length mm (L)

Width mm (b)

Height mm (h)

Number of drawers

Number of tools

Colour

Weight (g)

98830194

WB 621/161QR

500 mm

1150 mm

1045 mm

7 + 1 Fach

161 pcs.

anthracite, RAL 7016

107500 g

Eigenschaften

Key features workbench WB 621

for service and maintenance work on industrial systems
metric tools
three-stage safety concept:
- central locking with a lateral cylinder lock and folding key
- individual locks prevent inadvertent opening during transit
- tilt protection - it is not possible to pull out several drawers at the same time
7 easily removable drawers with full extension and ball bearing cage guide
2 drawers in generous XXL format, 880 mm
lockable cabinet section with height-adjustable shelf (70 mm grid)
cabling through 2 rubberized grommets
removable cable duct on the backside
oil and acid-resistant wheels (Ø 125 mm) with bearings protected from the ingress of dirt and fibres, and 2 parking brakes
RAL 7016 body, RAL 9005 drawers with durable industrial powder coating
safely integrated in the modular Tool Control System (TCS)

1 workbench, anthracite No. WB 621: 7 drawers and cabinet compartment

Contains 161-pieces:

96830264

11 sockets with hex 1/4" No. 40: 5; 5.5; 6; 7; 8; 9; 10; 11; 12; 13; 14 mm

17 sockets with hex 1/2" No. 52: 10; 11; 12; 13; 14; 15; 16; 17; 18; 19; 20; 21; 22; 24; 27; 30; 32 mm

2 QuickRelease extensions 1/4" No. 405QR: L. 54; 150 mm

1 QuickRelease fine-tooth ratchet 1/4" No. 415QR N: L. 117 mm

1 bit adaptor, manual 1/4" No. 3116: L 25 mm

2 QuickRelease extensions 1/2" No. 509QR: L. 130; 255 mm

1 QuickRelease fine-tooth ratchet 1/2" No. 512QR N: L. 265.5 mm

1 square drive adaptor No. 410: 1/4 to 1/2"

1 square drive adaptor No. 513: 1/2 to 3/8"

1 bit holder 1/4" No. 412: L. 25 mm

96830265

2 bit ratchet screwdrivers 1/4" No. 4008: L. 95; 250 mm

1 bit holder 1/4" No. 4009: L. 176 mm

1 bit box No. 1206: 1 bit holder | L. 25 mm: SL4;5;6 mm (2x) | PH1;2;3 (3x) | PZ1;2;3 (3x) | T10;15;20;25;27;30;40 (2x) | T BO10;15;20;25;27;30;40 | INHEX 3;4;5 mm | L. 75 mm: SL6 mm | PH2;3 | PZ1;2 | T20;25 | 56-pieces

96830266

1 water pump pliers No. 6551: L. 240 mm

1 heavy-duty side cutter No. 6721: L. 180 mm

1 telephone pliers No. 6730: L. 200 mm

1 combination pliers No. 6700: L. 180 mm

96830267

16 combination spanners No. 13: 6; 7; 8; 10; 11; 12; 13; 14; 15; 16; 17; 18; 19; 21; 22; 24 mm

1 adjustable spanner No. 4025: max. 34 mm

5 combination ratchet spanners, flat No. 17F: 8; 10; 13; 17; 19 mm

96830268

1 electrician's slotted screwdriver No. 4628: 0.4 x 2.5 x 60 mm

2 slotted screwdrivers No. 4620: 0.8 x 4 x 100; 1.6 x 10 x 200 mm

3 PH cross-head screwdrivers No. 4630: PH1; PH2; PH3

1 cable knife No. 12320: Blade length: 90 mm

1 tape measure No. 12935: L. 3 m

1 mini magnetic lifter No. 12600: 270 g

1 torch No. 13132: 130 lm

1 wooden folding ruler No. 13112: L. 2 m

1 ball-ended L-Key set TORX® No. 10771/8: T9; T10; T15; T20; T25; T27; T30; T40

1 ball-ended L-Key set hex No. 10767/9: 1.5; 2; 2.5; 3; 4; 5; 6; 8; 10 mm

96830269

1 engineer’s hammer No. 10961: 500 g

1 dead blow hammer No. 10959: Ø 35 mm

1 flat chisel No. 102: W. 21; L. 175 mm

1 pin punch No. 108: Ø 6 mm

1 centre punch No. 105: Ø 10 mm

1 pin punch No. 109: Ø 3.4 mm

1 drift punch No. 104: Ø 4 mm

96830273

4 circlip pliers No. 6543-6546: J2; J21; A2; A21

Produkt-Highlights

Complete solution for industry.

Our extensive range includes high-quality tools for a wide range of applications, such as vehicle maintenance, general repairs or assembly and disassembly work. It includes spanners with various sizes, sockets up to 32 mm, a large bit set, a wide selection of pliers and much more. With this equipment, you get a broad foundation for a wide range of applications in the automotive, electrical and mechanical engineering industries.

Mobile workstation.

The 7 full-extension drawers are pre-equipped with STAHLWILLE tools in safety foam inserts. A separate, lockable cabinet section with height-adjustable shelf provides additional storage space. The spacious 115 cm long work surface allows you to examine large components. Organised cable routing increases your safety in the workplace. With a working height of 104 cm and four smooth-running wheels, you have the ideal conditions for ergonomic and mobile working, both in and outside the workshop.

Secure down to the last detail.

The central lock with countersunk, side-mounted cylinder lock, together with the foldable key, protects against injury and damage. The individual locking mechanism prevents unintentional opening during transit - the anti-tilt protection makes it impossible to pull out multiple drawers simultaneously.

Smart cable management.

A detachable cable duct helps to neatly route and organise cables for electrical devices. This reduces the risk of tripping over or damaging the cable, thus increasing safety in the workplace. 2 cable outlets on the back also facilitate the power supply, e.g., when charging stowed battery-powered devices.
