Workbench

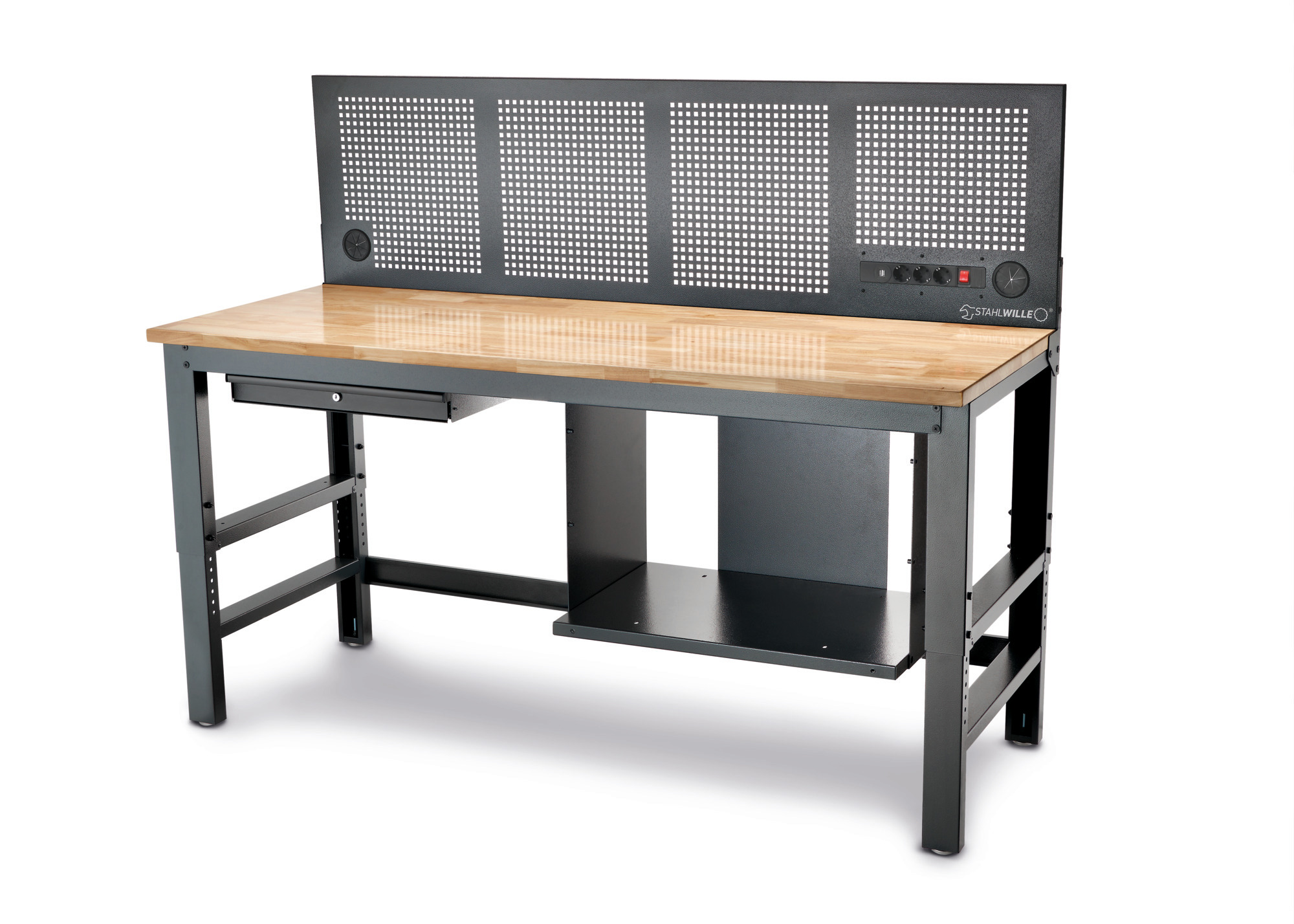

WB 630
- Generous working surface with a width of 2,000 mm with solid rubberwood worktop, FSC certified.
- Variable table height and sturdy levelling feet support efficient and ergonomic working even on uneven floors.
- With spacious, lockable drawer with full extension and ball bearing guide and custom-made safety lock for our TOP BOX 93.
- Integrated socket and 2 USB connections with cable outlets allow easy use and charging of power tools and mobile devices.
- The addition of the TOP BOX 93 (81200157) and the 157-pieces tool set TCS 821/6 (97830255) increases the functionality of the workbench.
Produkt-Varianten
| Product no. | Model | Length mm (L) | Width mm (b) | Number of drawers | Load capacity | Internal drawer dimensions mm | Drawer load capacity | Colour | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|
| 85010630 | WB 630 | 725 mm | 2000 mm | 1 | 1,000 kg | 530 x 350 x 74,5 mm | 30 kg | anthracite, RAL 7016; black, RAL 9005 | 102500 g |
Technologien und Leistungsmerkmale
Tool Control System
Modular Inlay System
Eigenschaften
- ready-to-install design
- chest holder including fastening material suitable for No. 93 TOP BOX

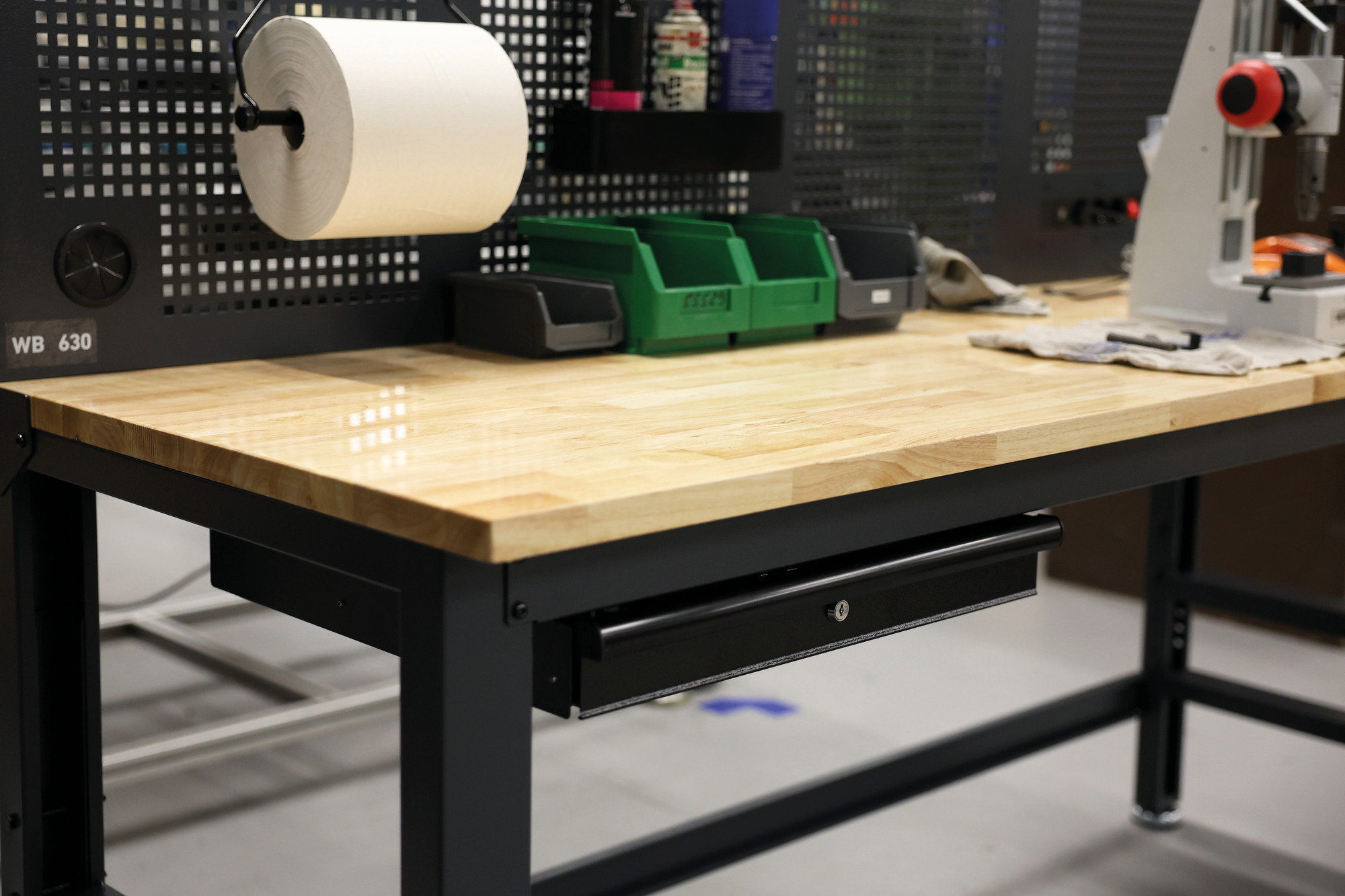

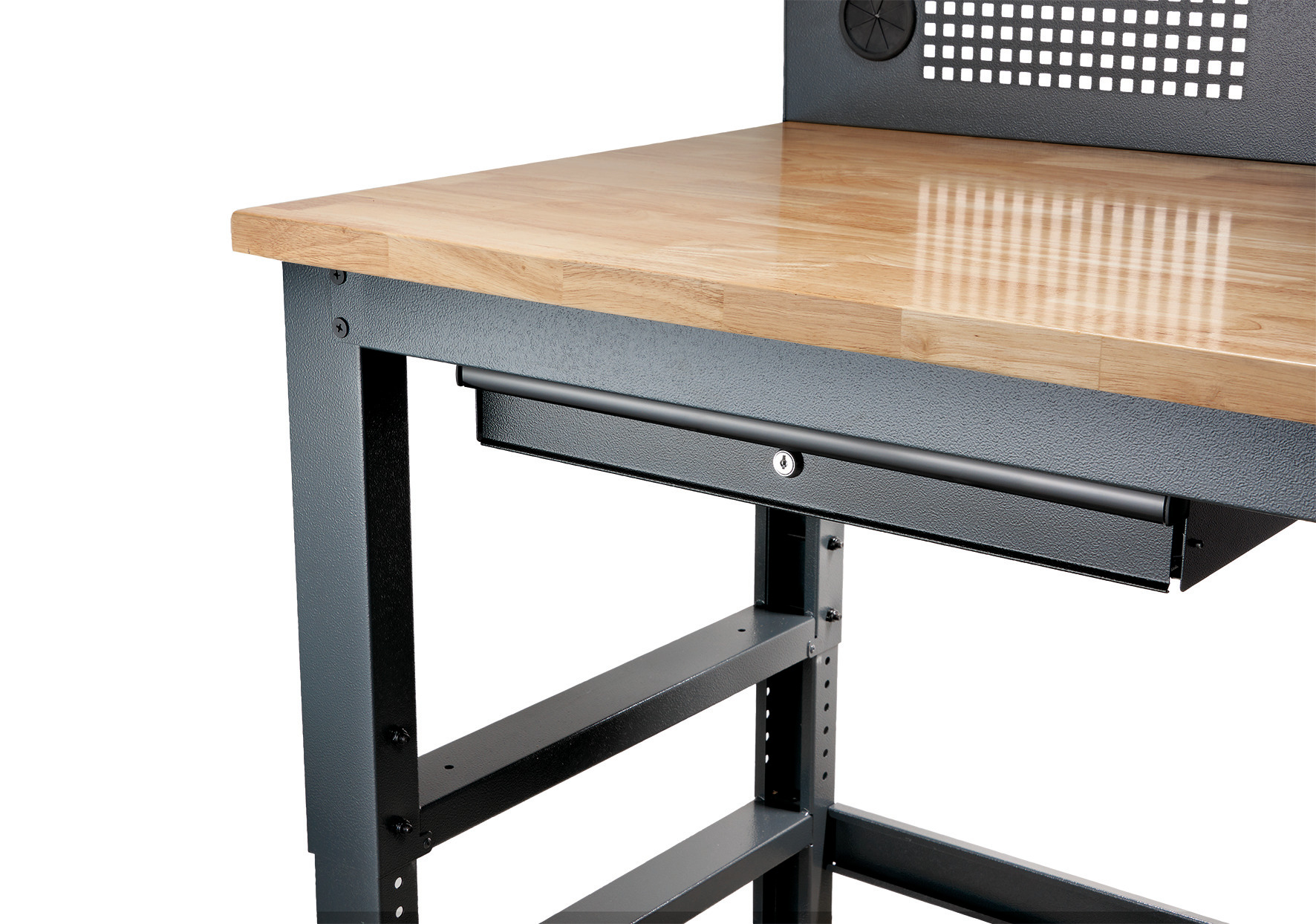

- lockable drawer (including 2 keys) with full extension and ball cage guide
- with non-slip drawer mat
- large work surface with rubberwood worktop, 30 mm thick, with FSC certification
- integrated perforated back panel for fitting tools and e.g. hooks, spray can holder, paper roll holder, etc.

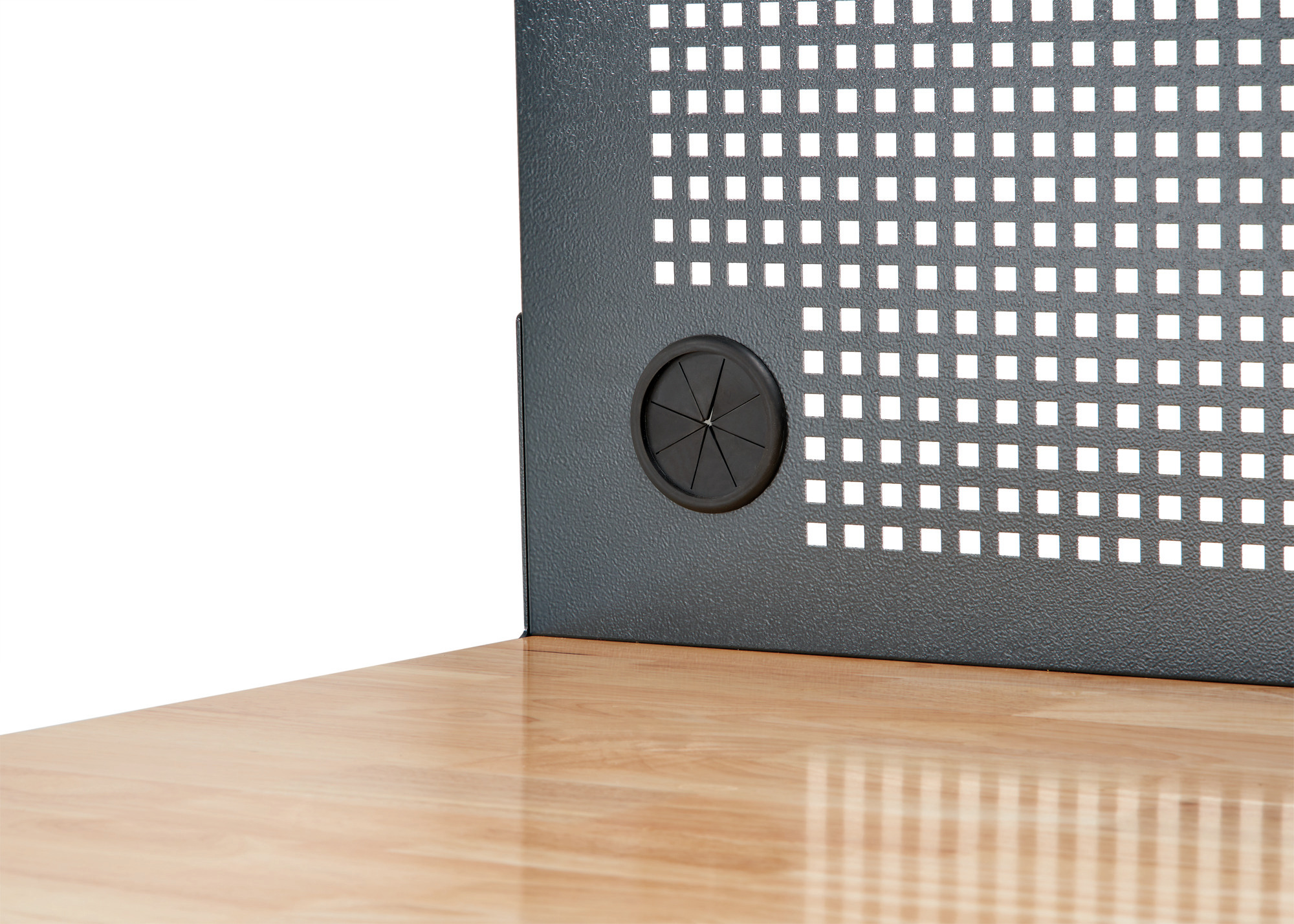

- with EU 3-way plug adapter, 2 USB ports, and 2 rubberised cable grommets

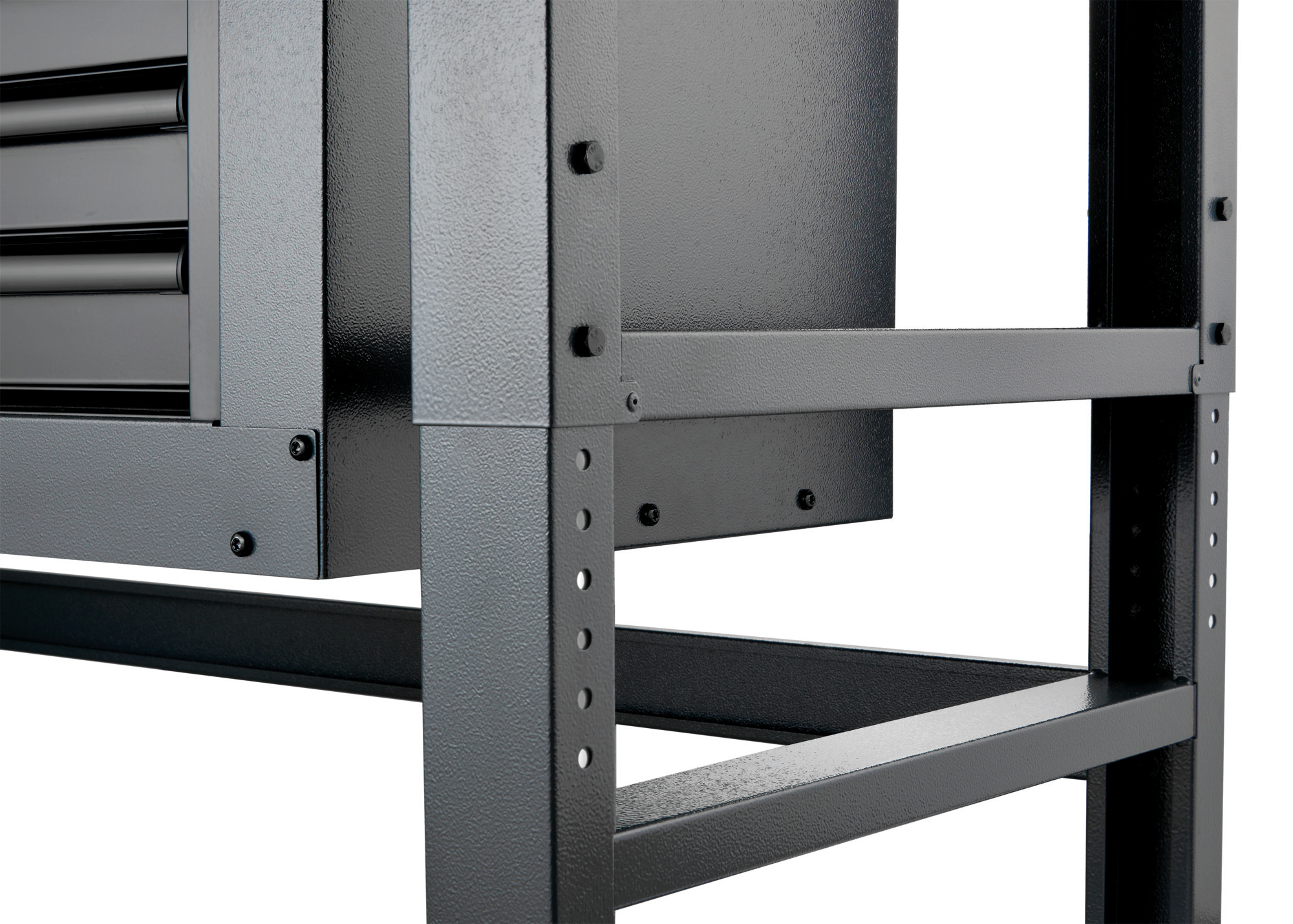

- height-adjustable legs (by 305 mm) with levelling feet (M12)
- body RAL 7016, in durable, industrial powder coating

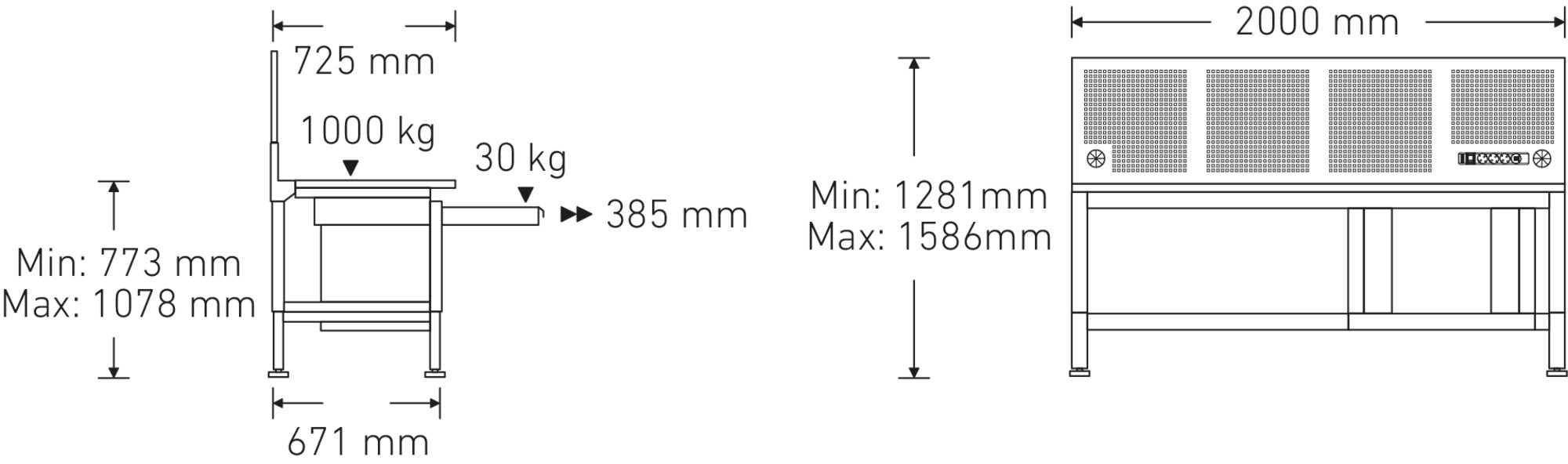

- dimensions: width 2,000 mm, depth 725 mm, adjustable height with back panel: 1,281-1,586 mm, without back panel: 773-1,078 mm
- internal drawer dimensions: 530 x 350 x 74.5 mm
- can be equipped with STAHLWILLE TCS inlays
- optionally available: Tool box TOP BOX 93 (81200157) and assortment tools TCS 821/6 (97830255)
Produkt-Highlights
Work surface for the highest demands.
The solid FSC-certified rubberwood plate is particularly large with a width of 2,000 mm and provides a stable base for demanding daily work.
Ergonomic working.
Thanks to adjustable legs, the table height can be flexibly adjusted to individual needs and for optimal ergonomic working in a 25 mm grid height adjustment.
Modular storage solution.
With its modular organisation, the workbench offers plenty of space for your tools. This enables our TOP BOX tool box with 4 drawers to be perfectly integrated into the matching holder. A large, lockable drawer on the opposite side provides additional secure storage space.
Optimum stability.

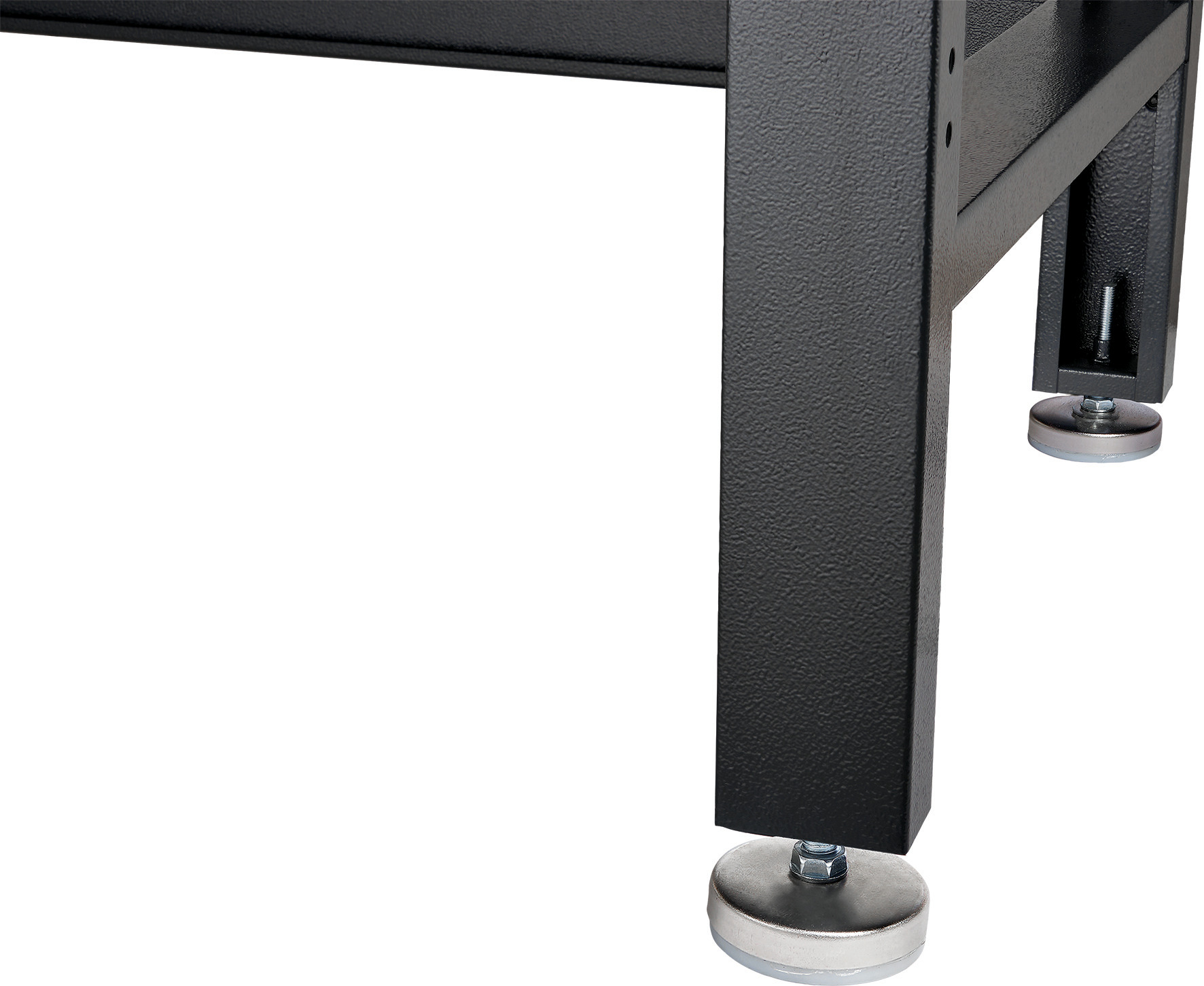

The levelling feet enable precise and stable alignment of the WB 630 for a secure positioning even on uneven surfaces.
Direct power supply.

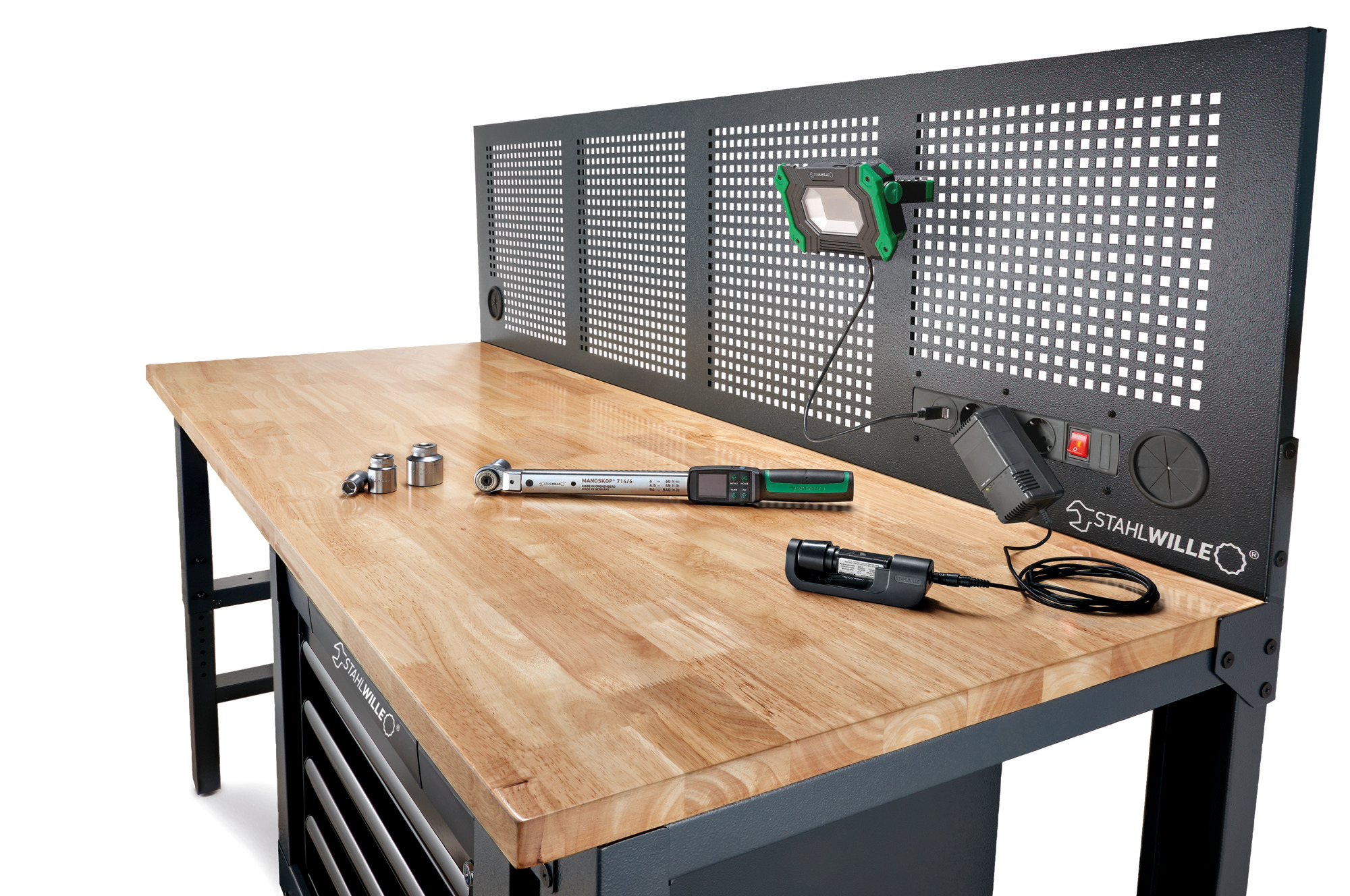

The workbench is equipped with 2 USB ports for charging electronic devices directly on site. A 3-way plug adapter and rubberised cable grommets on each side enable efficient power supply for cordless power tools.
Mobile and flexible.

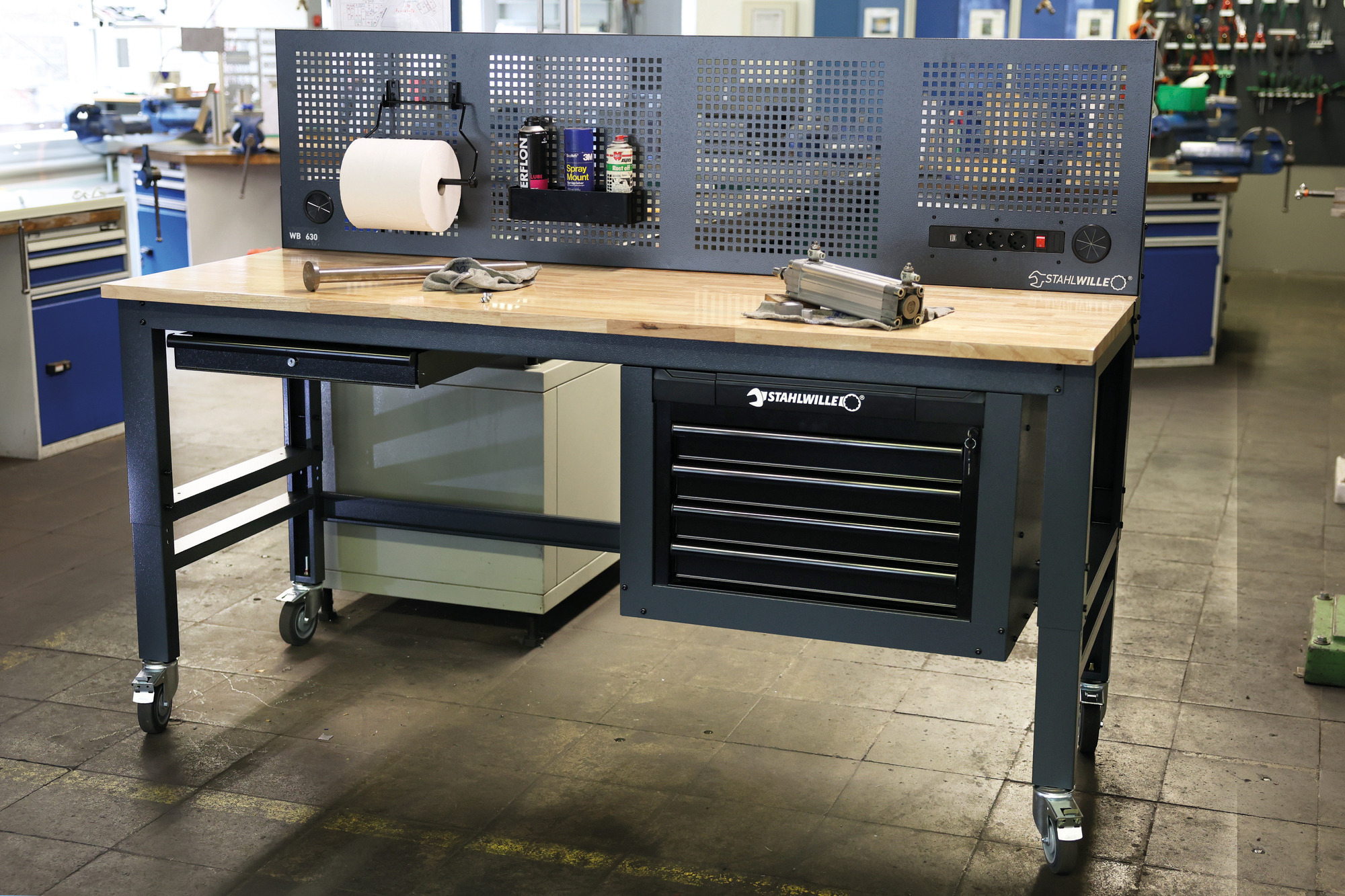

With the matching wheel set R 630, our workbench can now be used even more flexibly. 4 swivel castors with locking brakes ensure safe and stable working at the desired location. The high-quality rubber wheels (Ø 125 mm) offer smooth running and high driving comfort. Thanks to the height-adjustable design, the ergonomic working height is maintained even in mobile use. A thread guard prevents threads from wrapping around the axis and interfering with movement. Note: Retrofitting reduces the maximum static load capacity of the workbench from 1,000 kg to 600 kg.
