AOG-kit for aircraft in tool trolley No. 13217
AOG-kit for aircraft in tool trolley No. 13217
13221 WT/TS
- 206-piece metric AOG set with HPQ® aircraft tools in a tool trolley.
- Specially tailored tool set for fast, efficient, and reliable maintenance and repair.
- The professional tools combine the lowest manufacturing tolerances with the highest power transmission and durability.
- Thanks to the QuickRelease locking system, accidental tool loss is reliably prevented.
- Storing tools in the STAHLWILLE Tool Control System (TCS) combines the highest level of safety and efficiency.
Produkt-Varianten
| Art. no. | Model | Length mm (L) | Width mm (b) | Height mm (h) | Number of tools | Weight | |
|---|---|---|---|---|---|---|---|
| 98814915 | 13221 WT/TS | 381 mm | 581 mm | 455 mm | 206 pcs. | 29000 g |
Technologien und Leistungsmerkmale
High Performance Quality (HPQ®)
Foreign Object Damage
Tool Control System
QuickRelease
Eigenschaften
- for service and maintenance work on aircraft and helicopters
- robust and durable tool trolley made of polypropylene for professional use
- 7 easily removable, lockable drawers with pull-out stops in 2 different heights
- 1 removable shelf with 2 handles
- 2 transparent drawer lids beneath the upper lid
- 2 smooth-running double castors on the telescopic handle side
- drawers can be used as a separate toolbox thanks to the transparent lids
- with one upper and one front removable lid
- extendable telescopic handle and 2 side handles
- resistant to Skydrol, acetone, petrol and hydraulic oils
- lockable in 3 positions with a padlock
- with the Tool Control System (TCS) modular tool insert system
Key features of the tool trolley:
Contents: 206-piece set in TCS inserts
96830133, TCS 13217 WT 13221/1
10 double hex sockets 1/4" No. 40D: 5; 6; 7; 8; 9; 10; 11; 12; 13; 14 mm
10 double hex sockets 1/4" No. 40aDL: 3/16; 7/32; 1/4; 9/32; 5/16; 11/32; 3/8; 7/16; 1/2; 9/16"
10 double hex sockets 3/8" No. 45: 10; 11; 12; 13; 14; 15; 16; 17; 18; 19 mm
8 double hex sockets 3/8” No. 45a: 15/16; 1; 1/2"; 9/16; 19/32; 5/8; 11/16; 3/4"
1 bit ratchet No. 4008-1: 1/4"
2 QuickRelease extensions 3/8" No. 426QR: L. 75; 160 mm
2 QuickRelease extensions 1/4" No. 408QR: L. 55; 150 mm
1 QuickRelease universal joint 1/4" No. 407QR: L. 45 mm
1 Quick-Release universal joint 3/8" No. 428QR: L. 60 mm
1 QuickRelease fine tooth ratchet No. 415QR N: 1/4"
1 mini-bit fine tooth ratchet 1/4" No. 418B: L. 90 mm
1 QuickRelease fine tooth ratchet 3/8" No. 435QR N: L. 193 mm
1 LED torch No. 13128: 320 lumens
1 reducer No. 431: 1/4" outer square 3/8" inner square
1 bit holder No. 412: 1/4"
1 bit set No. 1208: 1 quick release chuck 1/4" | L. 25 mm: SL4.5;6.5;8 mm | PH1;2;3 (2x) | T6;15;20 | T-SET 4;6;8;10 (2x) | INHEX 5/64;9/64;1/8;3/16;5/32;7/64;3/32;7/32" | adaptor 1/4" 4KT/6KT | 30-piece
96830134, TCS 13217 WT 13221/2
1 FastGRIP pipe wrench No. 6572: L. 240 mm
1 telephone pliers No. 6731: L. 200 mm
1 connector pliers No. 6576 L. 230 mm
1 electronic wire cutter, polished No. 6707: L. 115 mm
1 combination pliers No. 6700: L. 160 mm
1 wire twisting pliers No. 6575 1: L. 230 mm
1 telescopic mirror No. 12921N: D. 50 mm
1 long nose gripping pliers No. 6571: L. 165 mm
1 Camloc plier 4P3: L. 190 mm
96830135, TCS 13217 WT 13221/3
1 measuring tape No. 12935/3: L. 3 m
1 spark plug brush No. 12375: L. 150 mm
1 precision feeler gauge No. 11095/20: 0.05; 0.10; 0.15; 0.20; 0.25; 0.30; 0.35; 0.40; 0.45; 0.50; 0.55; 0.60; 0.65; 0.70; 0.75; 0.80; 0.85; 0.90; 0.95; 1.00 mm
1 scriber No. 12321: L. 250 mm
1 calliper No. 12900N: L. 150 mm
1 claw gripper No. 12922: L. 540 mm
1 steel rulerNo. 13110: L. 300 mm
1 tweezers No. 13130: straight, L. 160 mm
1 plastic scraper, medium blade No. 10678: L. 170 mm
1 plastic scraper, narrow blade No. 10679: L. 170 mm
1 plastic scraper, angled blade No. 10680: L. 174 mm
1 plastic scraper, pointed blade No. 10681: L. 175 mm
1 brass mandrel No. 12495: L. 200 mm
1 pin magnet lifter No. 12601 : L. 145 mm
1 tyre tread caliper No. 12900/3: MB: 0-30 mm
1 safety knife (cutter) No. 12965N: L. 174 mm
96830136, TCS 13217 WT 13221/4
1 drive handle 1/4" No. 400: L. 150 mm
8 double hex sockets, long 1/4" No. 40DL: 5; 6; 7; 8; 10; 11; 12; 13 mm
1 key file setNo. 128000: 6-piece set
1 engineer’s hammer No. 10961: 500 g
1 soft-faced hammer No. 10959: D. 30 mm
1 step-up adapter 1/4" to 3/8" No. 409: L. 25 mm
4 pin punches No. 109: 1.4; 2.8; 3.4; 3.9 mm
96830137, TCS 13217 WT 13221/5
1 open-end spannerNo. 10: 27 x 32 mm
12 OPEN RATCH combination ratcheting spanners No. 17: 8; 9; 10; 11; 12, 13; 14; 15; 16; 17; 18; 19 mm
96830138, TCS 13217 WT 13221/6
1 offset screwdriver set No. 10767a/13: 13-piece set
1 ball-ended hex key set No. 10767H/9: 9-piece set
4 electronic slotted screwdriver No. 4751: 0.3 x 1.5 x 40; 0.4 x 2.0 x 60; 0.4 x 2.5 x 75; 0.5 x 3.0 x 75 mm
2 electronic PHILLIPS® screwdrivers No. 4752: PH0; PH1
1 DRALL® carburettor screwdriver for slotted screws No. 4724: 1.0 x 5.5 x 25 mm
1 PHILLIPS® screwdriver DRALL®No. 4744: PZ1
1 hook tool No. 13001: 45°
1 DRALL+ slotted screwdriver with impact cap No. 4622SK: 0.8 x 4.0 x 90 mm
1 PHILLIPS® DRALL+ screwdriver No. 4632SK: PH1
96830139, TCS 13217 WT 13221/7
9 open-end spannersNo. 10: 4 x 5; 6 x 7; 8 x 9; 10 x 11; 12 x 13; 14 x 15; 16 x 17; 18 x 21; 19 x 22
6 combination spanners OPEN BOX No. 13a: 3/8; 7/16; 1/2; 9/16; 5/8; 11/16"
1 spanner, adjustable No. 4025 6: AF max. 24 mm
96830140, TCS 13217 WT 13221/8
8 double-end ring spannerNo. 23: 6 x7; 8 x 9; 10 x 11; 12 x 13; 14 x 15; 16 x 17; 18 x 19; 20 x 22 mm
1 PHILLIPS® DRALL+ screwdriver No. 4632SK: PH2
2 TORQ-SET® screwdrivers DRALL®No. 4636: 4; 8 mm
1 DRALL+ slotted screwdriver with impact cap No. 4622SK: 1.2 x 6.5 x 125 mm
1 pin extractor No. 13009: L. 265 mm
1 PHILLIPS® DRALL+ screwdriver with impact cap No. 4632SK: PH3
1 round awl No. 10758: L. 280 mm
Produkt-Highlights
Optimal transport.

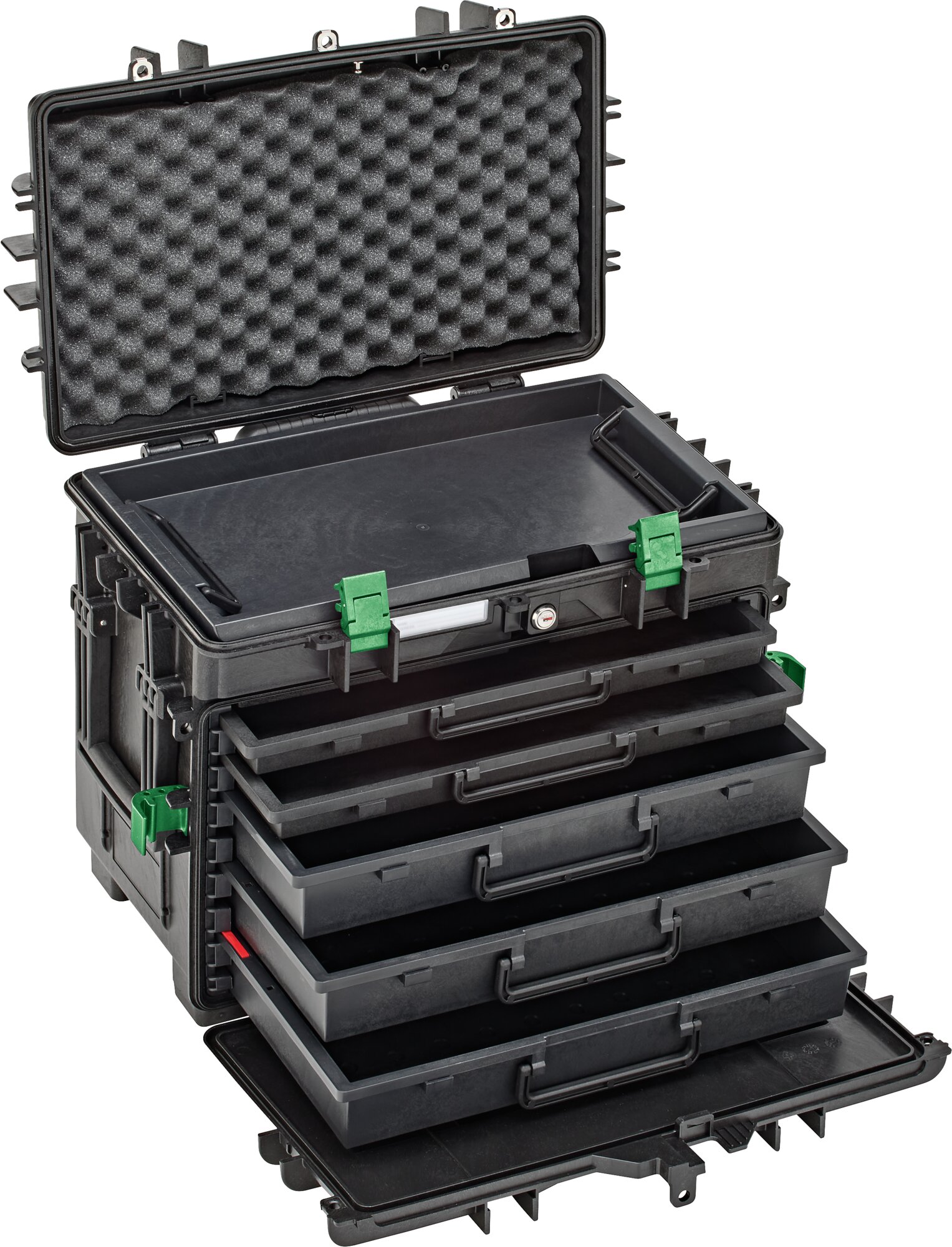

The supplied STAHLWILLE tool trolley 13217 is the professional companion for aircraft maintenance and enables optimal transport of the tool sets. Made of durable polypropylene, it is resistant to Skydrol, acetone, petrol and hydraulic oils. With removable drawers, telescopic handles and a padlock, this trolley is equipped for any situation and protects the tool from unauthorised access.
Safe and gentle.
Our QuickRelease tool is specifically adapted to the requirements of the aviation industry. The recessed release button in all extensions and universal joints ensures a secure hold and gentle screwing process on sensitive materials, even in the engine areas.
Special tools for aviation.
The set contains high-quality, common HPQ® tools that have been expertly assembled specifically for aviation maintenance. They are FOD safe and offer the tightest manufacturing tolerances, high force transmission and enormous resistance. Equipped with the patented QuickRelease locking system, the tool set sets new standards in terms of quality and reliability.
