Produkt-Varianten

Eigenschaften

Key features of the tool trolley:

• for the maintenance of aircraft and helicopters
• extremely robust and durable tool trolley for professional use, constructed from lightweight polypropylene
• 6 easily removable, locking drawers with transparent lids with pull-out stop in 2 different heights
• with one top and one front removable lid
• 1 removable tray with 2 handles and 2 transparent drawer lids under the top lid
• drawers can be used as a separate toolbox thanks to the attachable transparent lids
• 2 smooth-running double castors on the telescopic handle side
• extendable telescopic handle and 2 side handles
• resistant to Skydrol, acetone, petrol and hydraulic oils
• lockable in 3 places with a padlock

Contents: 179 tools, in TCS inserts

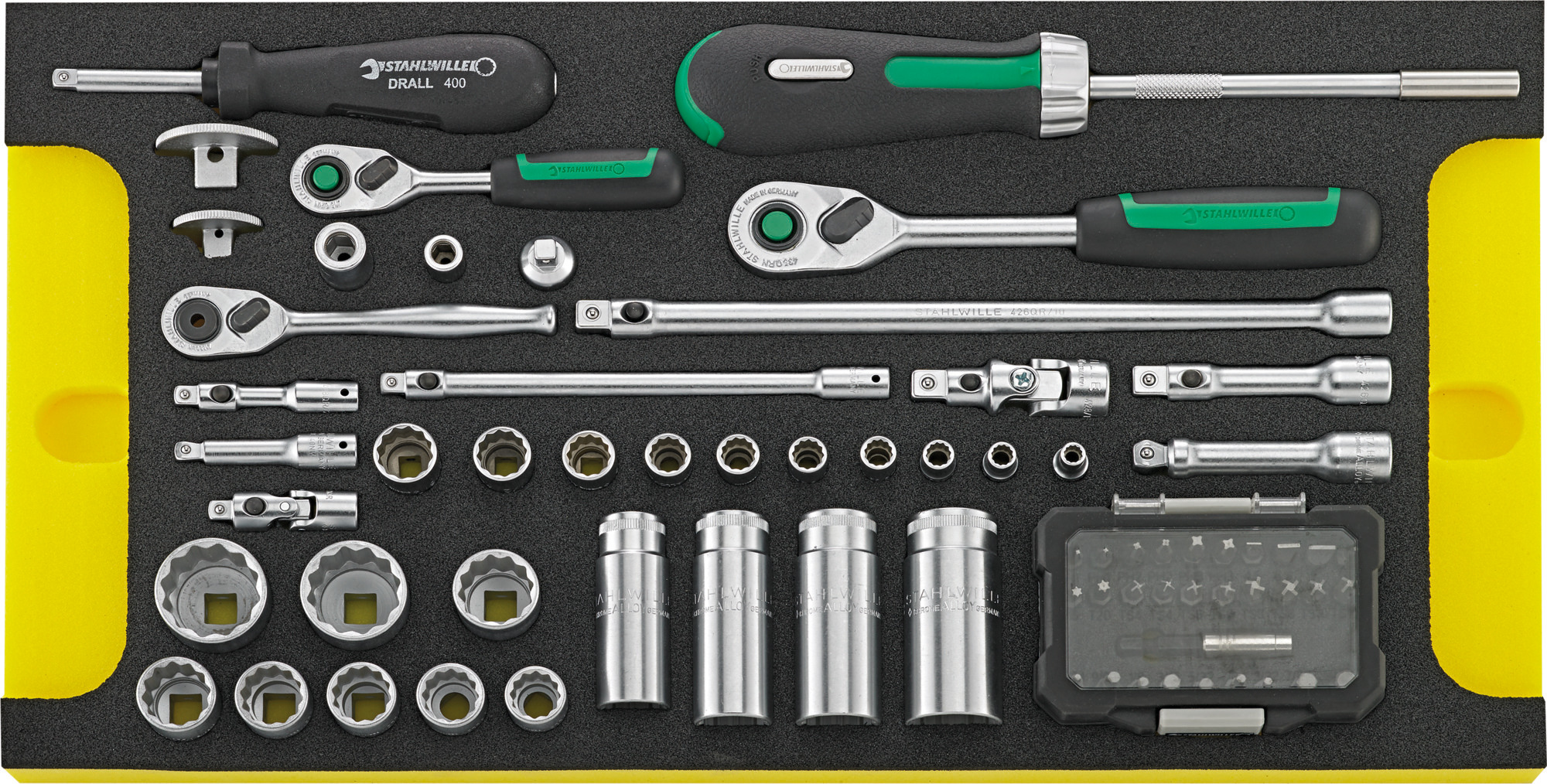

96830110, TCS 13217 WT 1/4-3/8

1 QuickRelease 1/4" fine-tooth ratchet No. 415QR N: L. 117 mm

10 double hex sockets 1/4”No. 40aD: 3/16; 7/32; 1/4; 9/32; 5/16; 11/32; 3/8; 7/16; 1/2; 9/16"

2 QuickRelease extensions 1/4" No. 408QR: L. 55; 150 mm

1 wobble drive extension 1/4" No. 405W/2: L.54 mm

1 QuickRelease universal joint 1/4" No. 407QR: L. 45 mm

1 enlarger No. 409: 1/4" inside to 3/8" outside

1 bit holder No. 412: 1/4"

1 QuickRelease fine-tooth ratchet 3/8" No. 435QR N: L.193 mm

4 double hex sockets 3/8" No. 46a: 5/8; 11/16; 3/4; 7/8"

8 double hex sockets 3/8” No. 45a: 1/2; 9/16; 19/32; 5/8; 11/16; 3/4; 15/16; 1"

2 QuickRelease extensions 3/8" No. 426QR: L. 75; 240 mm

1 wobble drive extension 3/8" No. 427W/3: L. 76 mm

1 Quick-Release universal joint 3/8" No. 428QR: L. 60 mm

1 enlargerNo. 432 M: 3/8 to 1/2"

1 reducer No. 431: 3/8 to 1/4"

1 bit fine-tooth ratchet 1/4" No. 415SGB: L. 117 mm

1 bit screwdriver with 1/4" ratchet No. 4008-1: Blades L. 127 mm

1 bit holder No. 443: 3/8"

1 bit set No. 1208: 1 1/4" quick release chuck | L. 25 mm: SL4,5;6,5;8mm | PH1;2;3 (2x) | T6;15;20 | T-SET 4;6;8;10 (2x) | INHEX 5/64;9/64;1/8;3/16;5/32;7/64;3/32;7/32" | Adaptor 1/4" 4KT/6KT | 30-piece

1 drive handle 1/4" No. 400: L. 150 mm



96830111, TCS 13217 WT HAMMERS

4 pin punches No. 109: 1.4; 2.8; 3.4; 3.9 mm

1 engineer’s hammer No. 10961: 500 g

1 soft-faced hammer No. 10959N: D.30 mm

1 steel ruler No. 13110: L. 300 mm

1 combination wrench No. 13 A: 1.1/8"

1 scriber No. 12321: L. 250 mm

1 pin magnet lifter No. 12601 : L. 145 mm, D.6 mm, pulling force 500 g

1 LED torch No. 13128: 320 lm

1 measuring tape No. 12935/3: L. 3 m

1 calliper No. 12900N: L. 150 mm



96830112, TCS 13217 WT PLIERS

1 telescopic mirror No. 12921M: L. 178-921 mm

1 FastGRIP pipe wrench No. 6572: L. 240 mm

1 wire twisting pliersNo. 6575: L. 230 mm

1 gripping pliers No. 6564: L. 175 mm

1 electronic wire cutter No. 67076000: L. 115 mm

1 combination pliers No. 67003160: L. 160 mm

1 telephone pliers No. 67313200: L. 200 mm

1 connector pliers No. 65765231: L. 230 mm



96830113, TCS 13217 WT VARIOUS

1 QuickRelease crank No. 453QR: L. 408 mm

6 flex sockets 1/4" No. 402 A: 1/4; 5/16; 3/8; 7/16; 1/2; 9/16"

10 double hex sockets 1/4", long No. 40aDL: 3/16; 7/32; 1/4; 9/32; 5/16; 11/32; 3/8; 7/16; 1/2; 9/16"

1 spanner, adjustable No. 4025 6: SW max. 24 mm

1 tyre tread caliper No. 12900/3

1 precision feeler gauge No. 11095/20: 0.05; 0.10; 0.15; 0.20; 0.25; 0.30; 0.35; 0.40; 0.45; 0.50; 0.55; 0.60; 0.65; 0.70; 0.75; 0.80; 0.85; 0.90; 0.95; 1.00 mm

1 claw gripperNo. 12922: Size 6

1 brass mandrel No. 12495

1 safety knife (cutter) No. 12965N: L. 174mm



96830114, TCS 13217 WT SCHL.13

3 double open-end spanner ELECTRIC No. 12a: 5/32, 7/32; 1/4"

17 combination spanners No. 13a: 3/16; 13/64: 7/32; 15/64: 1/4; 9/32; 5/16; 11/32; 3/8; 7/16; 1/2; 9/16; 19/32; 5/8; 11/16; 3/4; 25/32"

1 hacksaw No. 12053: L. 252 mm1 cable stripper No. 12320: blade length 90 mm



96830115, TCS 13217 WT SCREWDR.

2 DRALL+ slotted screwdrivers with impact cap No. 4622SK: 0.8 x 4.0 x 90; 1.2 x 6.5 x 125 mm

3 PHILLIPS® screwdrivers with impact cap DRALL+ No. 4632SK: PH1; PH2; PH3

1 slotted screwdriver No. 4724: 5.5 x 25 mm

1 PHILLIPS® screwdriver No. 4734: PH2 L. 25 mm

1 ball-ended hex key set No. 10767a/13: 5/64; 3/32; 1/8; 5/32; 3/16; 7/32; 1/4; 5/16"

4 plastic scrapers No. 10678, medium blade, No. 10679, narrow blade, No. 10680, angled blade, Nr. 10681, pointed blade

1 pin extractor No. 13009: L. 265 mm

1 hook tool No. 13001: 45° angled L. 155 mm

1 round awl No. 10758-2K: L. 175 mm



96830116, TCS 13217 WT SCHL.13-1

5 combination spanners No. 13a: 13/16; 7/8; 15/16; 1; 1.1/16"

1 key file setNo. 128000: 6-piece set

6 angled combination ratcheting spanners No. 17a: 1/4; 5/16; 3/8; 7/16; 1/2; 9/16"
