Socket set
Socket set
TCS 13214/1 WT/LM 1
Produkt-Varianten
| Product no. | Model | Square drive inner (inch) | Length mm (L) | Width mm (b) | Height mm (h) | Number of tools | Weight (g) | Manual/machine operation | |
|---|---|---|---|---|---|---|---|---|---|
| 96831100 | TCS 13214/1 WT/LM 1 | 1/4, 3/8, 1/2 " | 245 mm | 465 mm | 50 mm | 69 pcs. | 2550 g | für Handbetätigung |
Technologien und Leistungsmerkmale
QuickRelease
Eigenschaften
- for the removable tray of tool trolley No. 13217
- cannot be combined with transparent cover 13217 TA
- safely integrated in the modular Tool Control System (TCS)

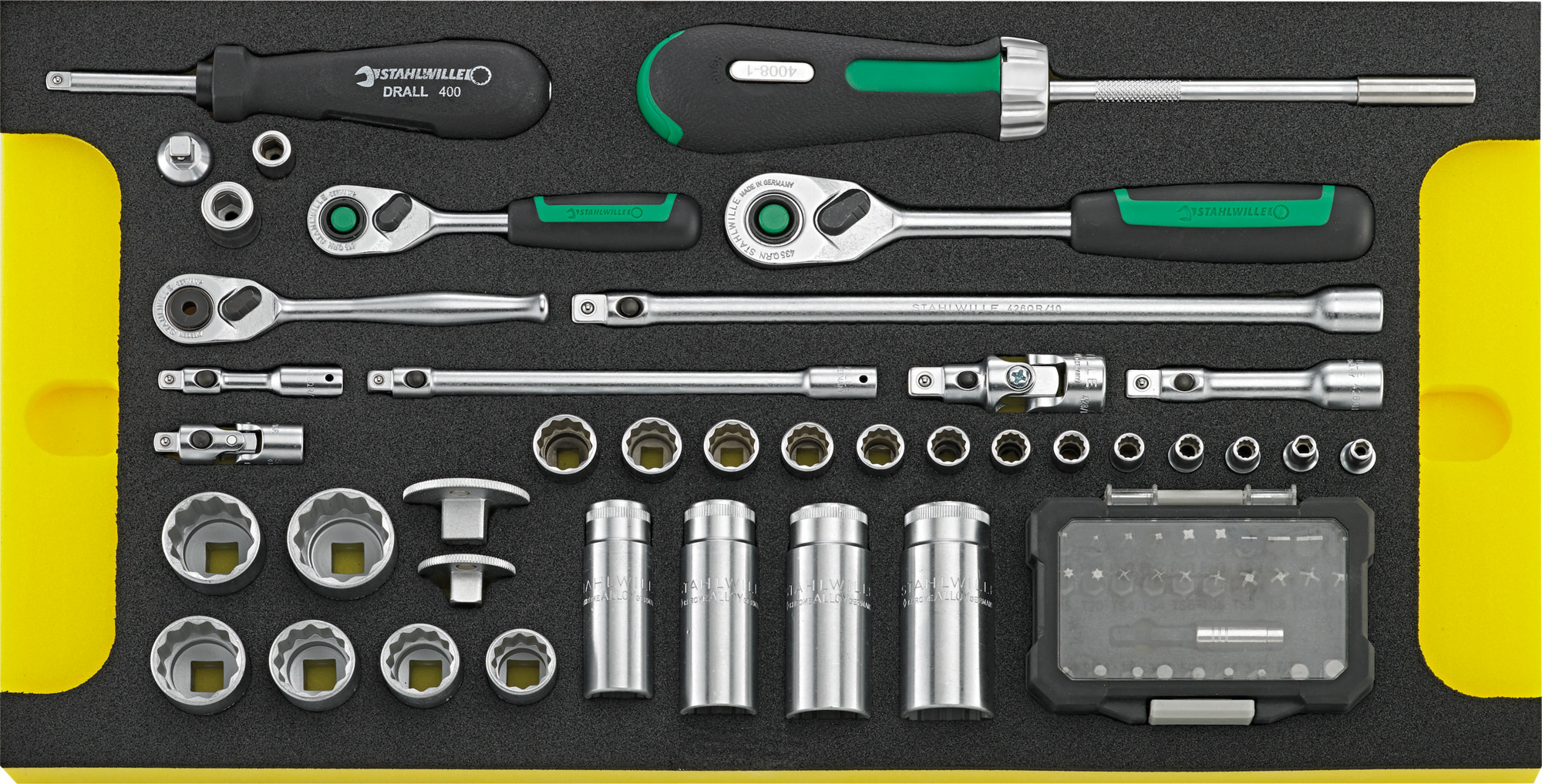

Contains 69-pieces:
2 sockets with hex 1/4" No. 40: 4; 4.5 mm
11 sockets with bi-hex 1/4" No. 40D: 5; 5.5; 6; 7; 8; 9; 10; 11; 12; 13; 14 mm
6 sockets with bi-hex 3/8" No. 45: 15; 17; 19; 21; 22; 24 mm
4 sockets long, with bi-hex 3/8" No. 46: 15; 17; 19; 21 mm
2 QuickRelease extensions 1/4" No. 408QR: L. 55; 150 mm
1 QuickRelease universal joint 1/4" No. 407/1QR: L. 45 mm
1 square drive adaptor No. 409M: 1/4 to 3/8"
1 QuickRelease fine-tooth ratchet 1/4" No. 415QR N: L. 117 mm
1 bit fine-tooth ratchet 1/4" No. 415SGB N: L. 117 mm
1 bit holder 1/4" No. 412: L. 25 mm
2 QuickRelease extensions 3/8" No. 426QR: L. 75; 240 mm
1 QuickRelease universal joint 3/8" No. 428/1QR: L. 60 mm
1 square drive adaptor No. 431: 3/8 to 1/4"
1 square drive adaptor No. 432M: 3/8 to 1/2"
1 QuickRelease fine-tooth ratchet 3/8" No. 435QR N: L. 193 mm
1 bit holder 5/16" No. 443: L. 32 mm
1 bit ratchet screwdriver 1/4" No. 4008: L. 250 mm
1 bit box No. 1208: 1 quick-change holder 1/4" | L. 25 mm: SL4,5;6,5;8 mm | PH1;2;3 (2x) | T6;15;20 | T-SET 4;6;8;10 (2x) | INHEX 5/64;9/64;1/8;3/16;5/32;7/64;3/32;7/32" | Adaptor 1/4" 4KT/6KT | 30-pieces
1 drive handle 1/4" No. 400N: L. 150 mm
