3/8" Tools in TCS inlay
3/8" Tools in TCS inlay
TCS 456/31/8
Artikel-Nr. 96830602|EAN 4018754162505
Produktvideo
Produkt-Varianten
| Product no. | Model | Contents | Square drive inner (inch) | Length mm (L) | Width mm (b) | Height mm (h) | Number of tools | Drawer dividers | Weight (g) | Manual/machine operation | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 96830602 | TCS 456/31/8 | 3/8 " | 350 mm | 350 mm | 32 mm | 39 pcs. | 2/3 | 2701 g | für Handbetätigung |
Technologien und Leistungsmerkmale
Tool Control System
The intelligent modular inlay system protects and organises the tools in tool boxes, tool trolleys and workbenches. Two-colour foam inlays make checking the completeness of the tools quick and easy.
QuickRelease
The QuickRelease safety lock prevents unintentional loss of insert tools. These click securely into place, and are only released again at the push of a button for a quick tool change.
In transducers: The QuickRelease safety lock helps you to quickly mount
and change transducers. The transducers lock into the calibration system and only unlock again at the push of the buttons.
Eigenschaften
- safely integrated in the modular Tool Control System (TCS)

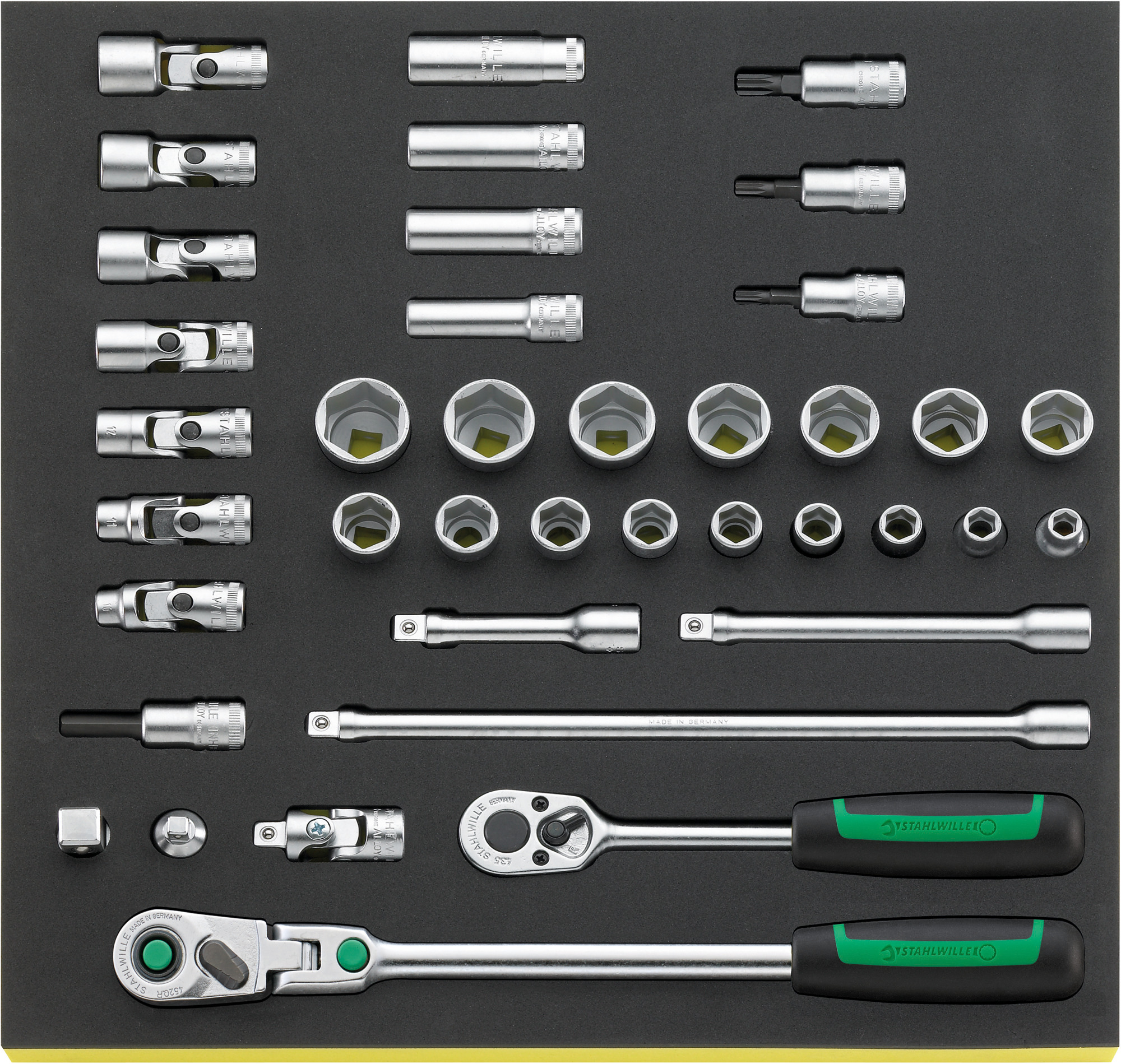

Contains 39-pieces:
16 sockets with hex 3/8" No. 456: 7; 8; 9; 10; 11; 12; 13; 14; 15; 16; 17; 18; 19; 20; 21; 22 mm
4 sockets with bi-hex 3/8" No. 46: 10; 11; 12; 13 mm
7 flex sockets with bi-hex 3/8" No. 47: 10; 11; 12; 13; 14; 15; 16 mm
1 screwdriver socket INHEX 3/8" No. 1049: 9 mm
3 screwdriver sockets XZN® 3/8" No. 49X: M6; M8; M10
3 extensions 3/8" No. 427: L. 76; 125; 240 mm
1 universal joint 3/8" No. 428: L. 46 mm
1 square drive adaptor No. 431: 3/8 to 1/4"
1 square drive adaptor No. 432: 3/8 to 1/2"
1 ratchet 3/8" No. 435-2K: L. 193 mm
1 QuickRelease fine-tooth flexible ratchet 3/8" No. 452QR: L. 300 mm
