Momentnøgler MANOSKOP® med optag til indstiksværktøj
Momentnøgler MANOSKOP® med optag til indstiksværktøj
755/20
Artikel-Nr. 50010020|EAN 4018754031641
- Releasing
Produkt-Varianten

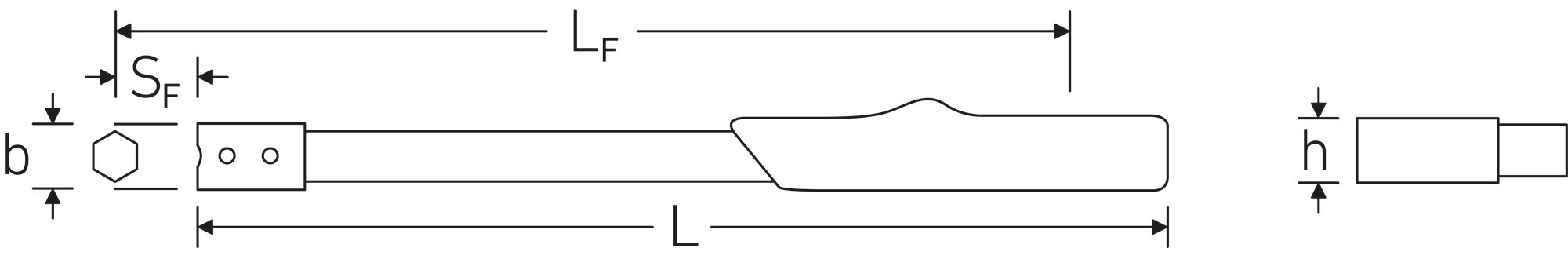

| Art. nr. | Str. | Måleområde N·m | Måleområde ft·lb | MA N·m | Nominel værdi N·m | Længde mm. (L) | Bredde mm. (b) | Højde mm. (h) | Værktøjsholderens størrelse [indvendig firkant] | LF | SF | Vægt (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50010004 | 4 | 4-40 N·m | 3-30 ft·lb | 4 N·m | 40 N·m | 201 mm | 22 mm | 18 mm | 9 x 12 mm | 172 mm | 17,5 mm | 500 g | Jetzt entdecken |
| 50010010 | 10 | 20-100 N·m | 15-74 ft·lb | 20 N·m | 100 N·m | 318 mm | 28 mm | 24 mm | 9 x 12 mm | 289 mm | 17,5 mm | 635 g | Jetzt entdecken |
| 50010020 | 20 | 40-200 N·m | 30-147 ft·lb | 40 N·m | 200 N·m | 457 mm | 28 mm | 24 mm | 14 x 18 mm | 435 mm | 25 mm | 1045 g | |
| 50010030 | 30 | 60-300 N·m | 40-220 ft·lb | 60 N·m | 300 N·m | 609 mm | 28 mm | 24 mm | 14 x 18 mm | 587 mm | 25 mm | 1210 g | Jetzt entdecken |
Eigenschaften
- For work on conveyor belts or in serial production. No adjustment scale; therefore adjustment with test equipment is required, e.g. with the STAHLWILLE test devices No. 7707 W, SmartCheck or the calibration systems No. 7794, No. 7706.
- Triggering
- Mount for interchangeable insert tools (755/4-30)
- Dual stop signal
- Particularly lightweight and easy to handle
- Handle and shaft made of square steel pipe
- Further loading after triggering or loads in the opposite direction of operation (max. up to the measurement range limit of the torque wrench) do not affect the trigger mechanism, which protects it from damage
- Counter-clockwise tightening with plug-in insert tools
- On request with pre-set trigger value (price surcharge 10%)
- Adjustment with torque wrench test device
- Display deviation ± 4 %
