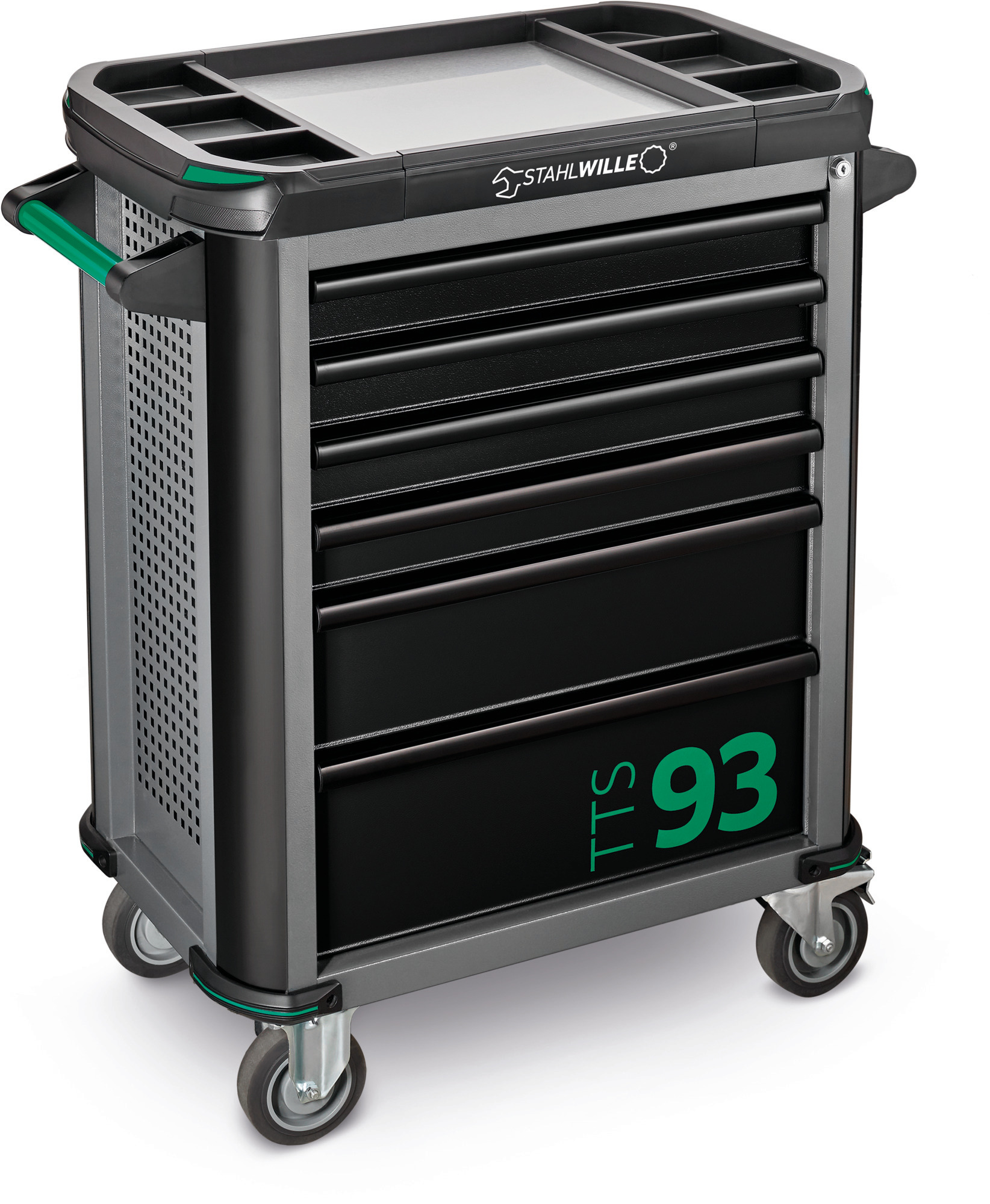

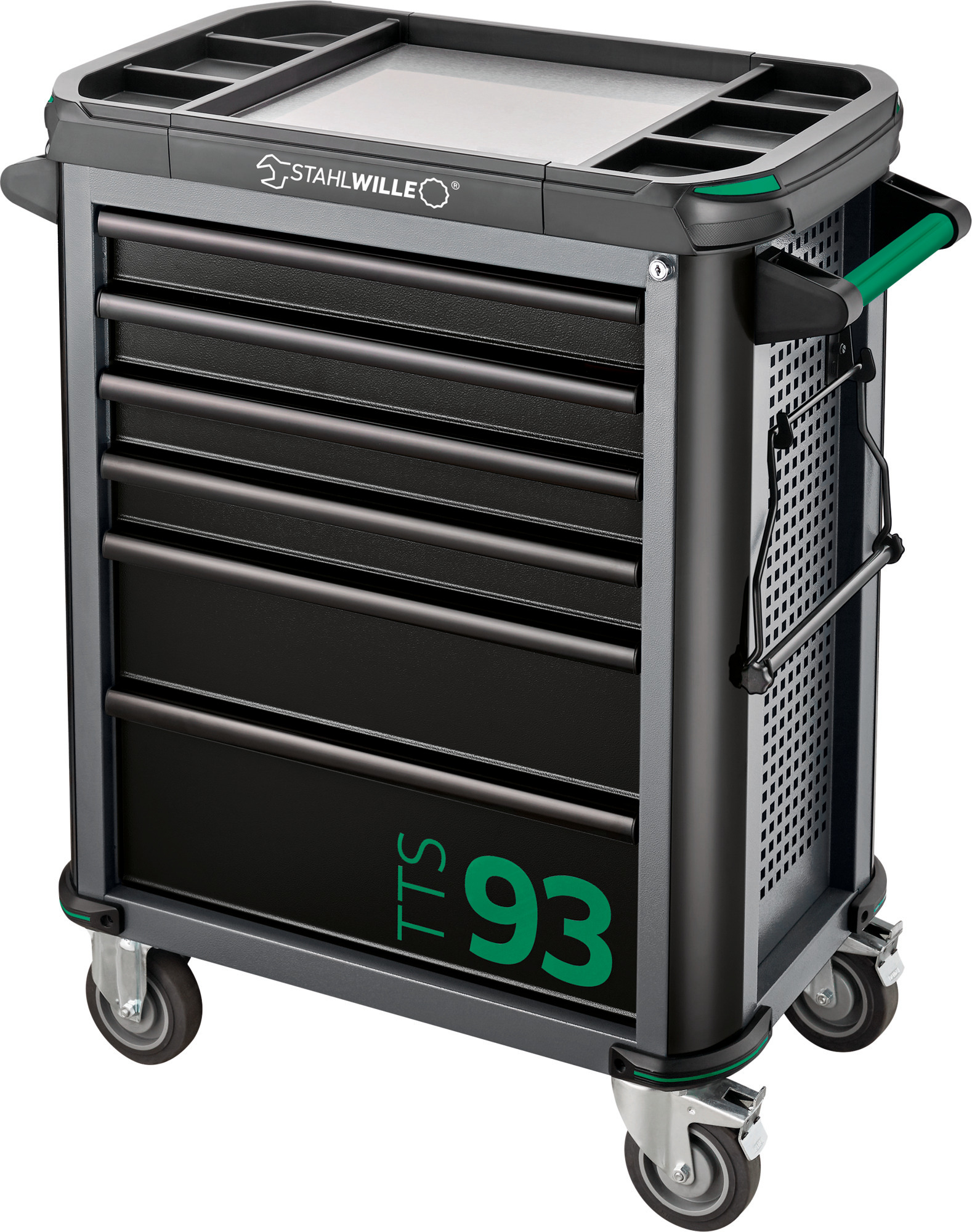

Værkstedsvogn
Værkstedsvogn
93/6
- Two-stage safety concept: 1. Central lock by cylinder lock with folding key 2. Tilt protection – it is not possible to pull out several drawers at the same time
- 2 handles, all-round impact protection and a hard-wearing plastic shelf made of ABS with practical compartments for small parts.
- Oil- and acid-resistant lightweight wheels (125 mm) with thread guards protect the bearings from dirt and threads, with two parking brakes.
- Central locking by cylinder lock with folding key, the anti-tilt device prevents several drawers from being pulled out at the same time.
- High static load capacity of up to 500 kg - the bottom drawer has a load capacity of up to 45 kg.
Produktvideo
Produkt-Varianten

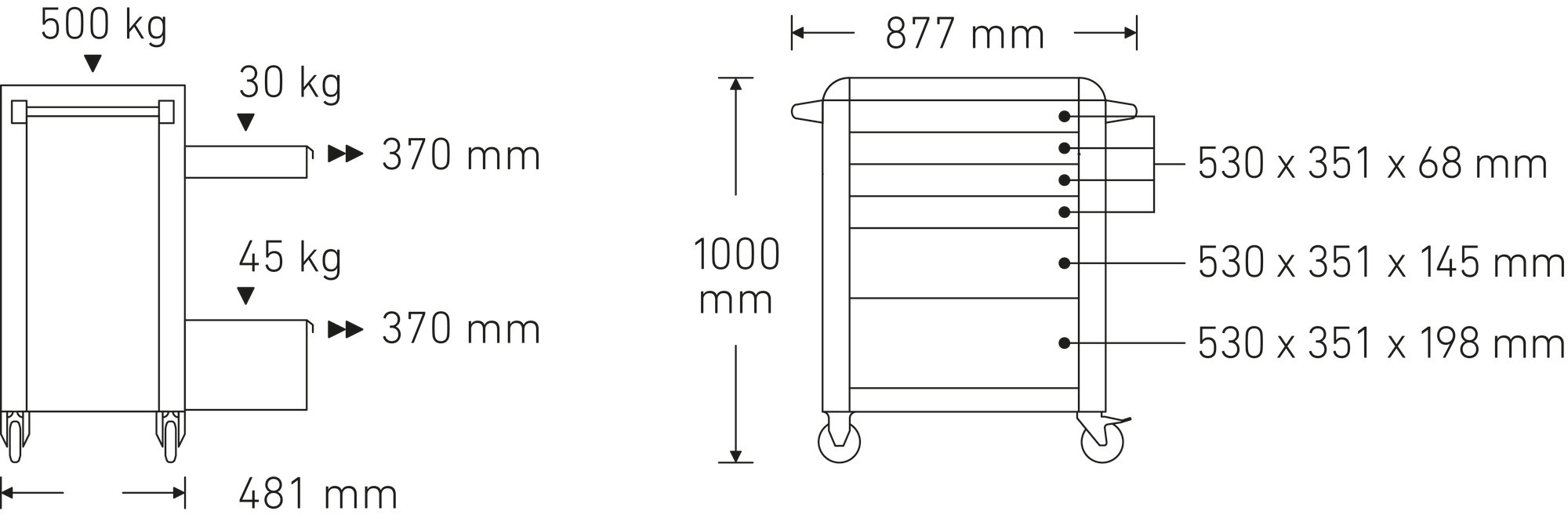

| Art. nr. | Model nr. | Længde mm. (L) | Bredde mm. (b) | Højde mm. (h) | Antal skuffer | Lastkapasitet | Indvendige skuffedimensioner mm. | Skuffens belastningskapacitet | Farve | |
|---|---|---|---|---|---|---|---|---|---|---|
| 81200154 | 93/6 A | 481 mm | 877 mm | 1000 mm | 6 | 500 kg | 351 x 530 x 68 mm (4x) 351 x 530 x 145 mm (1x) 351 x 530 x 198 mm (1x) | 30 kg 30 kg 45 kg | antracit, RAL 7016 | |
| 81200155 | 93/6 R | 481 mm | 877 mm | 1000 mm | 6 | 500 kg | 351 x 530 x 68 mm (4x) 351 x 530 x 145 mm (1x) 351 x 530 x 198 mm (1x) | 30 kg 30 kg 45 kg | rød, RAL 3020 | Jetzt entdecken |
| 81200156 | 93/6 B | 481 mm | 877 mm | 1000 mm | 6 | 500 kg | 351 x 530 x 68 mm (4x) 351 x 530 x 145 mm (1x) 351 x 530 x 198 mm (1x) | 30 kg 30 kg 45 kg | blå, RAL 2703035 | Jetzt entdecken |
Technologien und Leistungsmerkmale
Tool Control System
Eigenschaften
- two-stage safety concept:
- 2 handles
- all-round impact protection
- durable plastic tray made of ABS with compartments for small parts
- oil- and acid-resistant smooth-running wheels (D.125 mm) with thread guards to protect the bearings from dirt and threads, with two locking brakes
- hole pattern on both sides for hooks No. 8031-8041, e.g. for larger tools
- can be fitted with STAHLWILLE standard and TCS inserts
- 6 easily removable drawers (black, RAL 9005) with full extension (370 mm) and ball bearing cage guide
- with paper roll holder
- can be fitted with STAHLWILLE TCS inserts (per drawer 1 x 3/3)
1. central locking through cylinder lock with hinged key
2. topple proof – it is not possible to pull out several drawers at the same time
Produkt-Highlights
Høj bæreevne
Høj statisk bæreevne på op til 500 kg. Den nederste skuffe har en bæreevne på op til 45 kg!
Sikkerhedskoncept i to trin
Centrallåsesystemet med sidecylinderlås og foldenøgle beskytter værktøjet mod uautoriseret adgang. Vippesikringen forhindrer flere skuffer i at blive trukket ud samtidig for at undgå risiko for personskade eller beskadigelse.
Holdbare hjul
Olie- og syrebestandige letløbende hjul (Ø 125 mm) med tæppebeskyttelse til beskyttelse af lejerne mod snavs og fibre; med to låsebremser.

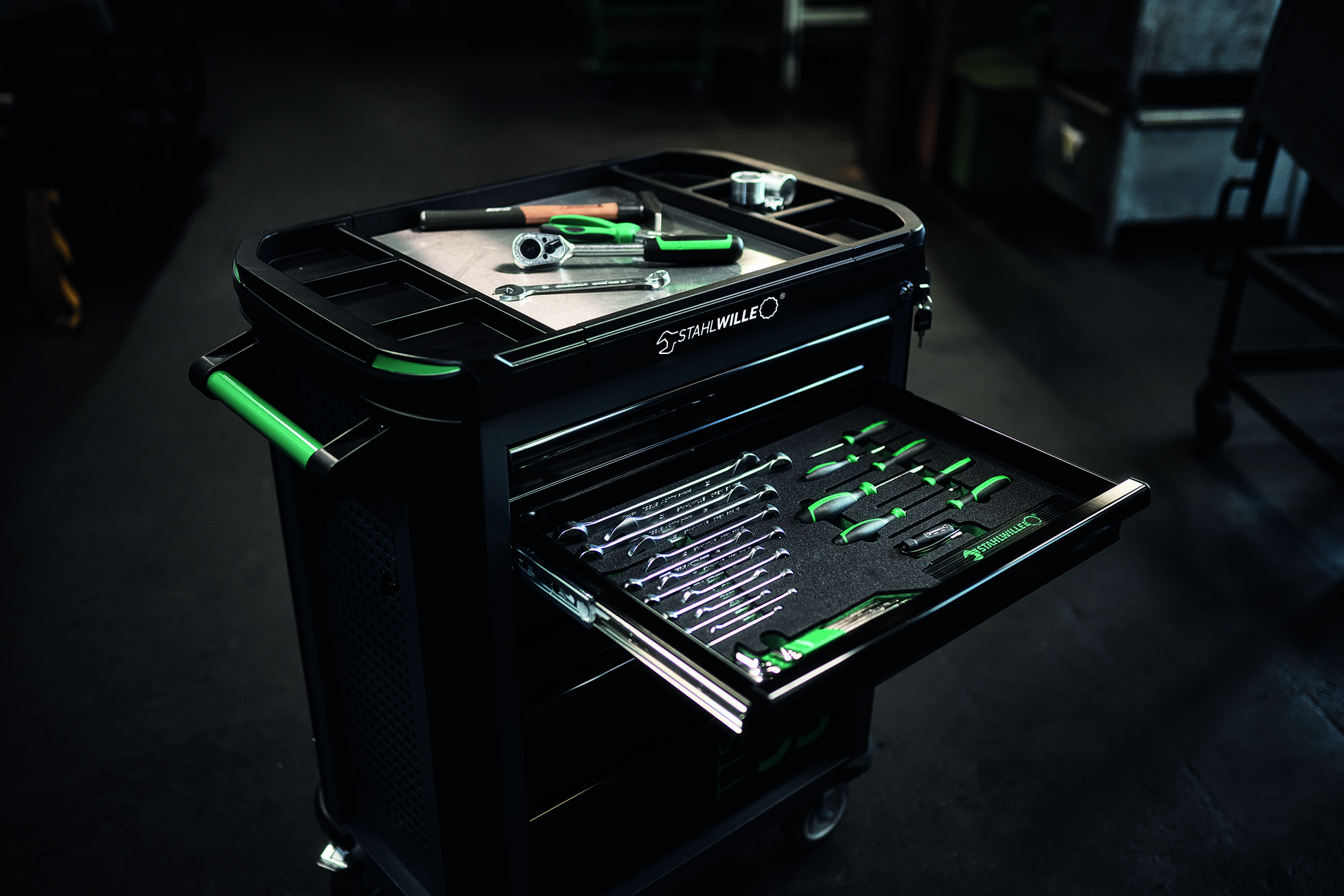

Optimalt organiseret
Alle skuffer kan trækkes helt ud. Kombinationen af STAHLWILLE standard- og TCS-indlæg eller de variable skuffeinddelere sikrer et klart overblik og bekvem adgang til værktøjet.
