71040102

Counter stay

Produkter/Avdragare/Invändiga avdragare/Mothållare

Counter stay

11401

Produktvarianten

Artikel-Nr. 71040102|EAN 4018754342181

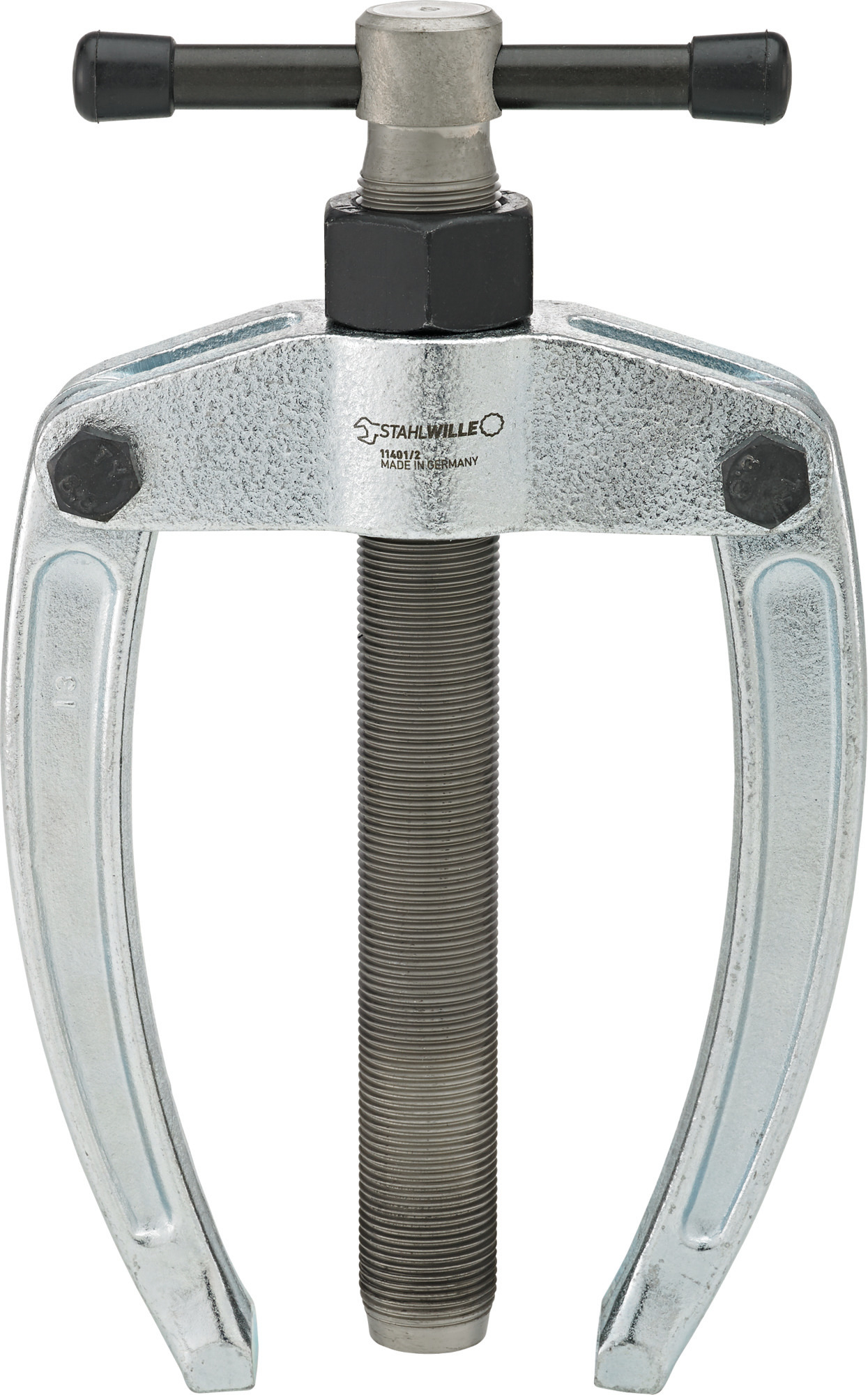

With a counter support, work can be done with more force and more precisely than with the slide hammer.
Supports reliable and fast extraction of tight fitting ball bearings, bushings, oil seals etc.

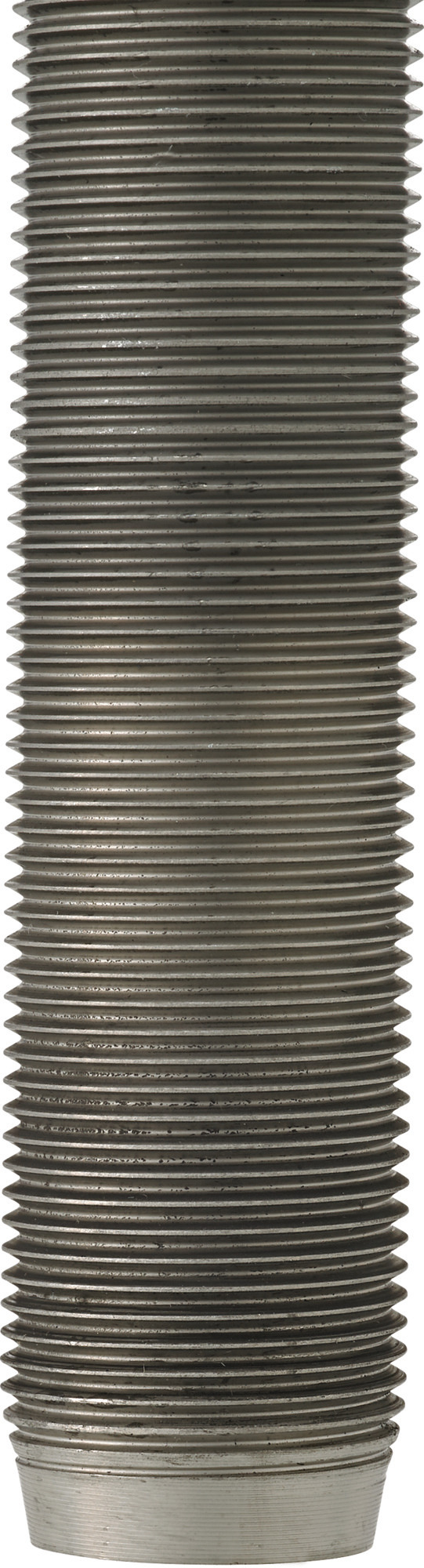

Powerful spindle with fine thread provides reliable performance, even for demanding tasks.
To use, place the counter stay onto the housing, screw the spindle to the connection thread of the internal extractor and pull out the component.
Made from robust steel for a long service life, even with heavy use.

Händlersuche

Produkt-Varianten

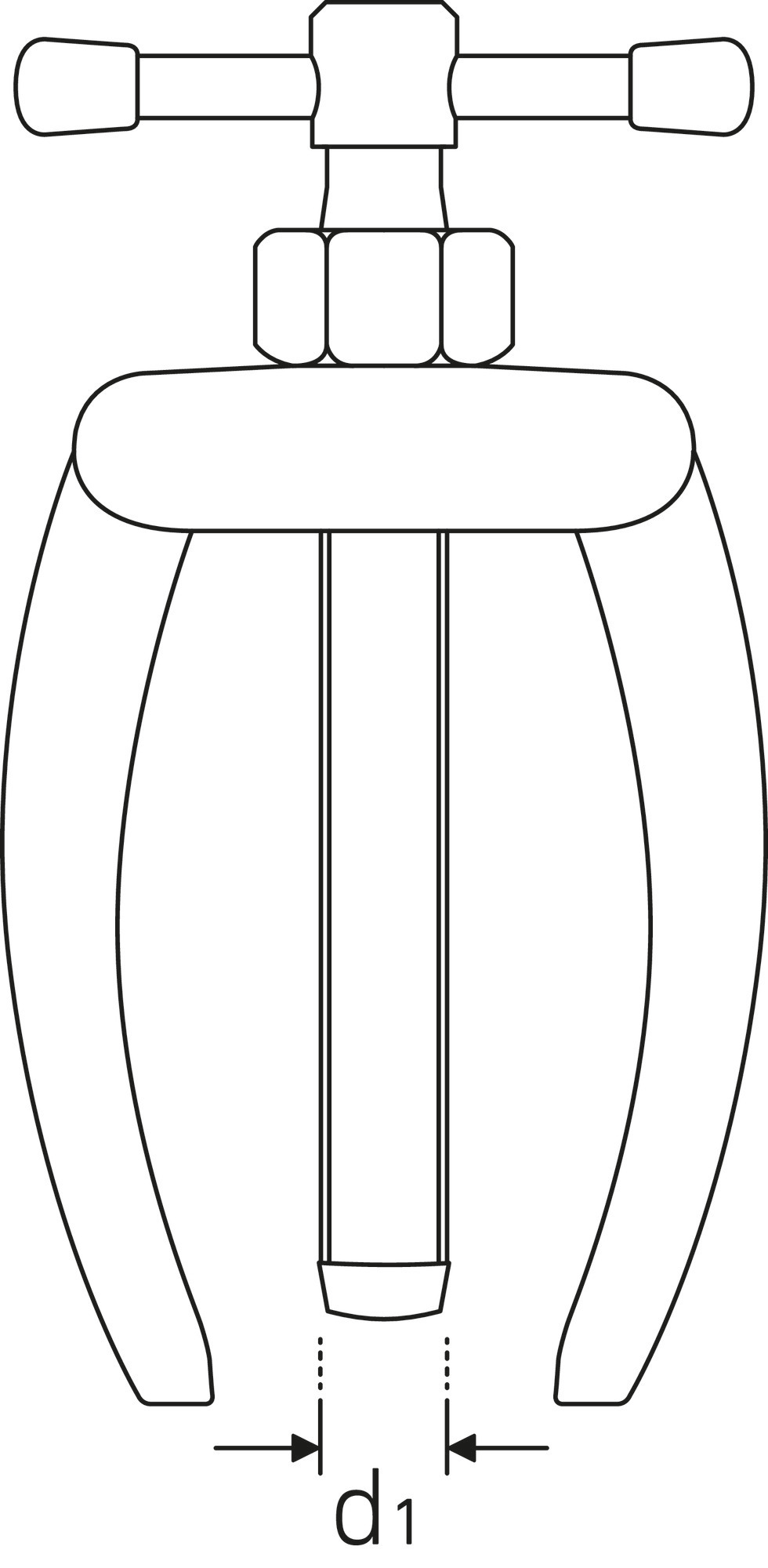

Art. no.	Storlek	Udvendigt sekskantsdrev (mm)	til gevind	til model	Vikt (g)	Maß-Skizze
71040101	1	27 mm	M10	11400/1; /2; /3; /4; /4a; /5	750 g	Jetzt entdecken
71040102	2	32 mm	M14 x 1,5	11400/6; /7	1650 g
71040103	3	32 mm	M14 x 1,5	11400/8; /9	3000 g	Jetzt entdecken

Eigenschaften

for internal extractor 11400/1-5

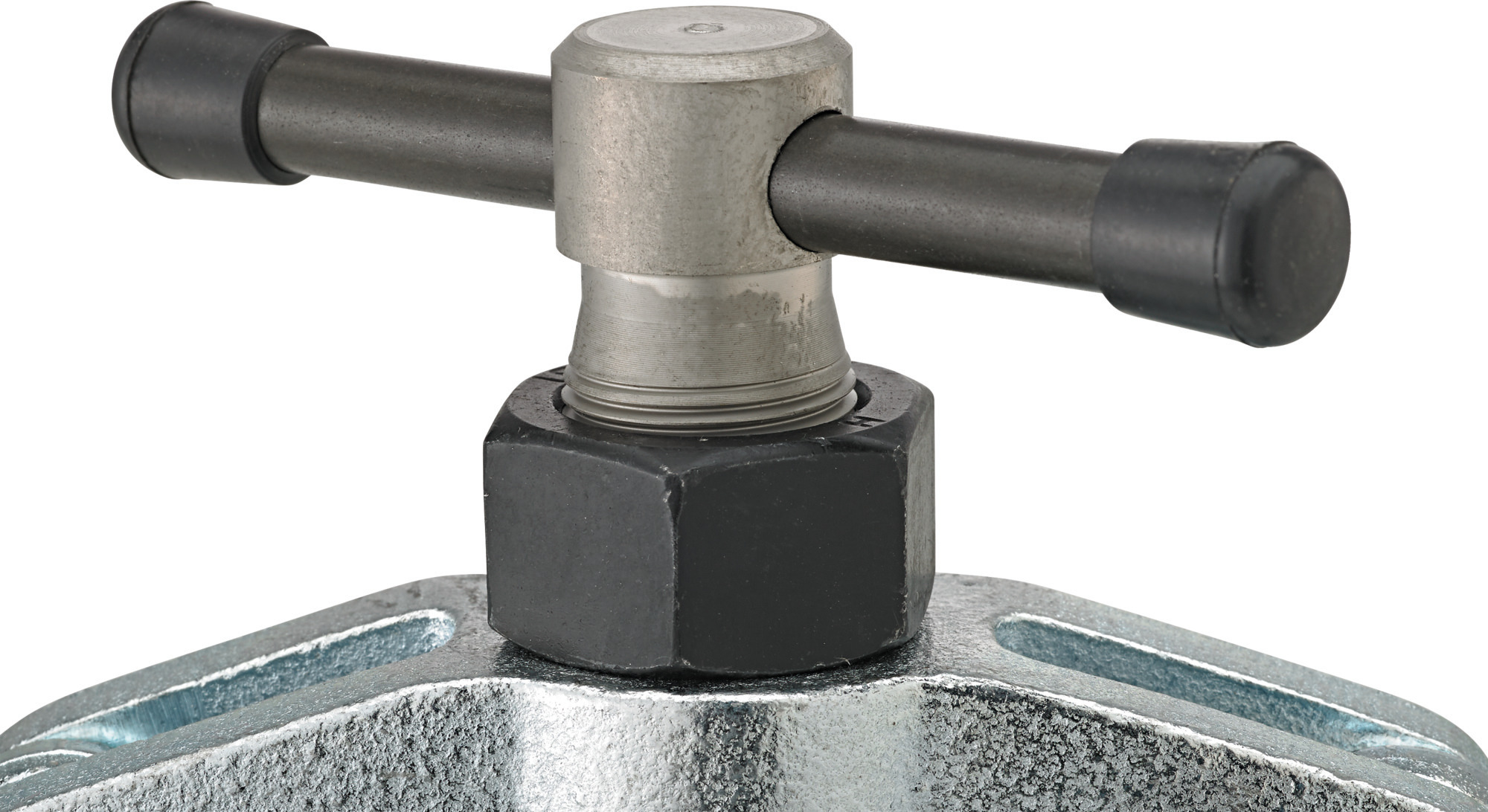

Screw the spindle of the counter support to the connection thread of the internal extractor
Insert the internal extractor and spread it
Pull out the workpiece

Produkt-Highlights

För mer säkerhet.

Genomtänkt konstruerade, sänksmidda, precisionstillverkade, härdadeoch anlöpta av toppmoderna maskiner: STAHLWILLE:s sortiment av avdragare erbjuder en rad produkter för olika typer av användningsområden. Till exempel standardavdragare, polklämavdragare, uttryckare, motstöd, kulledseller hjulnavavdragare. Alltid i premiumkvalitet, Made in Germany.
