Key features of the tool trolley

• three-stage safety concept:
  • central locking with a lateral cylinder lock and folding key
  • individual locks prevent inadvertent opening during transit
  • tilt protection - it is not possible to pull out several drawers at the same time
• stainless steel, reinforced handle
• all-round impact protection with impact damping
• tightly welded, scratch-resistant worktop, made of stainless steel
• oil and acid-resistant wheels (Ø 125 mm) with bearings protected from the ingress of dirt and fibres, and 2 parking brakes
• paper roll holder and spray can holder included
• 7 easily removable drawers, black RAL 9005, full-extension runners with bearing cage guide
• perforation on both sides for hooks No. 8031-8041, e.g., for larger tools
• can be equipped with STAHLWILLE TCS inlays
• safely integrated in the modular Tool Control System (TCS)

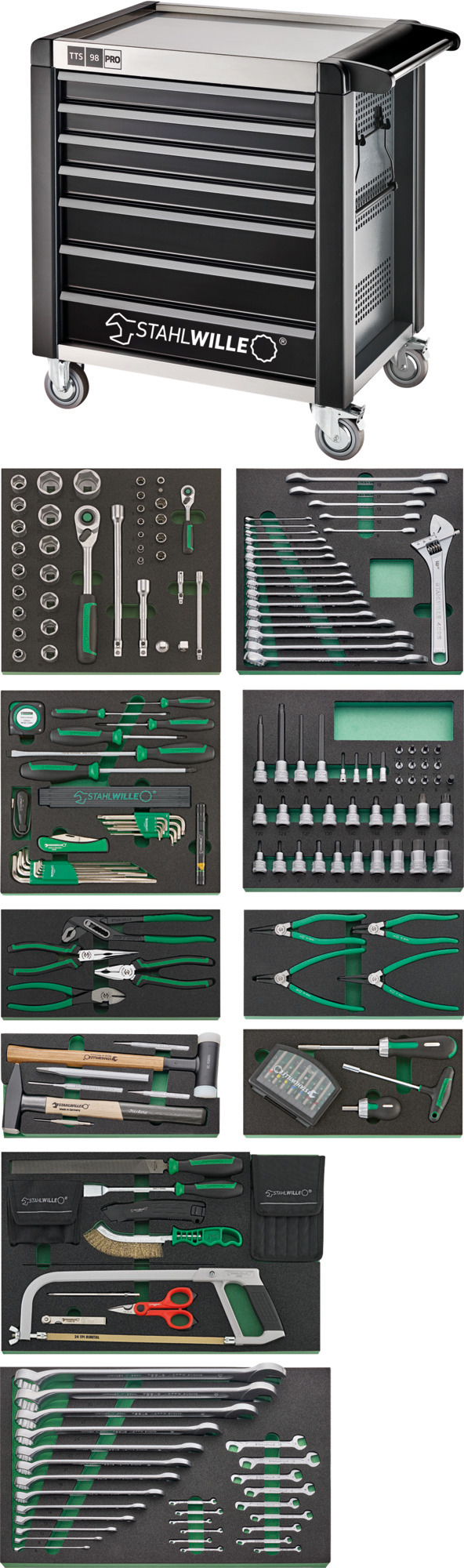

1 tool trolley, anthracite No. 98/7 A PRO: 7 drawers

Contains 250-pieces:

96830264

11 sockets with hex 1/4" No. 40: 5; 5.5; 6; 7; 8; 9; 10; 11; 12; 13; 14 mm

17 sockets with hex 1/2" No. 52: 10; 11; 12; 13; 14; 15; 16; 17; 18; 19; 20; 21; 22; 24; 27; 30; 32 mm

2 QuickRelease extensions 1/4" No. 405QR: L. 54; 150 mm

1 QuickRelease fine-tooth ratchet 1/4" No. 415QR N: L. 117 mm

1 bit adaptor, manual 1/4" No. 3116: L 25 mm

2 QuickRelease extensions 1/2" No. 509QR: L. 130; 255 mm

1 QuickRelease fine-tooth ratchet 1/2" No. 512QR N: L. 265.5 mm

1 square drive adaptor No. 410: 1/4 to 1/2"

1 square drive adaptor No. 513: 1/2 to 3/8"

1 bit holder 1/4" No. 412: L. 25 mm



96830265

2 bit ratchet screwdrivers 1/4" No. 4008: L. 95; 250 mm

1 bit holder 1/4" No. 4009: L. 176 mm

1 bit box No. 1206: 1 bit holder | L. 25 mm: SL4;5;6 mm (2x) | PH1;2;3 (3x) | PZ1;2;3 (3x) | T10;15;20;25;27;30;40 (2x) | T BO10;15;20;25;27;30;40 | INHEX 3;4;5 mm | L. 75 mm: SL6 mm | PH2;3 | PZ1;2 | T20;25 | 56-pieces



96830266

1 water pump pliers No. 6551: L. 240 mm

1 heavy-duty side cutter No. 6721: L. 180 mm

1 telephone pliers No. 6730: L. 200 mm

1 combination pliers No. 6700: L. 180 mm



96830267

16 combination spanners No. 13: 6; 7; 8; 10; 11; 12; 13; 14; 15; 16; 17; 18; 19; 21; 22; 24 mm

1 adjustable spanner No. 4025: max. 34 mm

5 combination ratchet spanners, flat No. 17F: 8; 10; 13; 17; 19 mm



96830268

1 electrician's slotted screwdriver No. 4628: 0.4 x 2.5 x 60 mm

2 slotted screwdrivers No. 4620: 0.8 x 4 x 100; 1.6 x 10 x 200 mm

3 PH cross-head screwdrivers No. 4630: PH1; PH2; PH3

1 cable knife No. 12320: Blade length: 90 mm

1 tape measure No. 12935: L. 3 m

1 mini magnetic lifter No. 12600: 270 g

1 torch No. 13132: 130 lm

1 wooden folding ruler No. 13112: L. 2 m

1 ball-ended L-Key set TORX® No. 10771/8: T9; T10; T15; T20; T25; T27; T30; T40

1 ball-ended L-Key set hex No. 10767/9: 1.5; 2; 2.5; 3; 4; 5; 6; 8; 10 mm



96830269

1 engineer’s hammer No. 10961: 500 g

1 dead blow hammer No. 10959: Ø 35 mm

1 flat chisel No. 102: W. 20; L. 175 mm

1 pin punch No. 108: Ø 6 mm

1 centre punch No. 105: Ø 10 mm

1 pin punch No. 109: Ø 3.4 mm

1 drift punch No. 104: Ø 4 mm



96830271

1 screw extractor set No. 900/6 T: M3-M4; M5-M7; M8-M11; M10-M12; M10-M12M14-M1; M18-M22

1 warding file set No. 12800: 6-pieces

1 flat file No. 12036: L. 260 mm

1 gasket scraper No. 12718: L. 265 mm

1 safety knife No. 12965: L. 165 mm

1 wire brush No. 12377: L. 270 mm

1 steel ruler No. 13110: L. 300 mm

1 hacksaw No. 12050: blade length: 300 mm

1 tungsten carbide scriber No. 12322: Ø 3.15 mm

1 wire cutter No. 13148: L. 150 mm

1 precision feeler gauge, 20 blades No. 11095: 0.05-1.00 mm



96830272

15 double open-ended spanners No. 12: 3.2; 3.5; 4; 4.5; 5; 5.5; 6; 7; 8; 9; 10; 11; 12; 13; 14 mm

13 combination spanners No. 14: 6; 8; 10; 13; 14; 17; 19; 21; 22; 24; 27; 30; 32 mm



96830273

4 circlip pliers No. 6543-6546: J2; J21; A2 A21



96830274

9 screwdriver sockets TORX® 1/2" No. 54TX: T20; T25; T27; T30; T40; T45; T50; T55; T60

10 screwdriver sockets INHEX 1/2" No. 54: 4; 5; 6; 7; 8; 10; 12; 14; 17; 19 mm

2 screwdriver sockets TORX® 1/2" No. 1054TX: T30; T50

2 INHEX screwdriver sockets 1/2" No. 1054/2054: 6; 8 mm

4 screwdriver sockets INHEX 1/4" No. 44: 3; 4; 5; 6 mm

8 screwdriver sockets TORX® 1/4" No. 44KTX: T8; T10; T15; T20; T25; T27; T30; T40

5 screwdriver sockets INHEX 1/4" No. 44K: 3; 4; 5; 6; 8 mm
