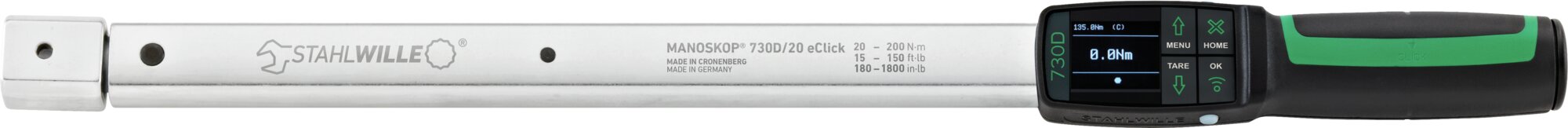

Electromechanical torque wrenches MANOSKOP®

730D/20 eClick

Artikel-Nr. 96501420|EAN 4018754365692

With patented eClick technology (electromechanical click): accurate electronic torque measurement combined with the tried-and-tested mechanical click.
Instant and clear evaluation of the bolted joint following the traffic light principle – thereby reducing the risk of incorrect bolted joints.
Intuitive and fast to use, including direct setting of the target value in a few steps.
Documentation of up to 2,500 bolted joints for complete traceability within the framework of quality assurance. Data can be transferred in both wired and wireless manners.
Flexible extensions possible because the angle of rotation measuring method can be activated, if necessary.

Produkt-Varianten

Product no.	Model	Size	Tool holder size [internal square]	Measuring range N·m	Measuring range ft-lb	Measuring range in-lb	Length mm (L)	Width mm (b)	Height mm (h)	Battery type	Setting display resolution N·m	Adjustment display resolution ft-lb	Adjustment display resolution in-lb	LF	SF	Weight (g)	Weight with box	Maß-Skizze
96501401	730D/1 eClick	1	9 x 12 mm	1-10 N·m	0,7-7,5 ft·lb	9-90 in·lb	226 mm	28 mm	23 mm	Micro (AAA) 1,5V	0,1/0,01 N·m	0,1/0,01 ft·lb	0,1/0,1 in·lb	188 mm	17,5 mm	370 g	795 g	Jetzt entdecken
96501402	730D/2 eClick	2	9 x 12 mm	2-20 N·m	1,5-15 ft·lb	18-180 in·lb	226 mm	28 mm	23 mm	Micro (AAA) 1,5V	0,1/0,01 N·m	0,1/0,01 ft·lb	0,1/0,1 in·lb	188 mm	17,5 mm	380 g	805 g	Jetzt entdecken
96501404	730D/4 eClick	4	9 x 12 mm	4-40 N·m	3-30 ft·lb	36-360 in·lb	252 mm	28 mm	23 mm	Micro (AAA) 1,5V	0,1/0,01 N·m	0,1/0,01 ft·lb	0,1/0,1 in·lb	214 mm	17,5 mm	420 g	845 g	Jetzt entdecken
96501406	730D/6 eClick	6	9 x 12 mm	6-60 N·m	4,5-45 ft·lb	54-540 in·lb	393 mm	28 mm	23 mm	Micro (AAA) 1,5V	0,1/0,01 N·m	0,1/0,01 ft·lb	0,1/0,1 in·lb	355 mm	17,5 mm	810 g	1235 g	Jetzt entdecken
96501410	730D/10 eClick	10	9 x 12 mm	10-100 N·m	7,4-75 ft·lb	90-900 in·lb	466 mm	28 mm	23 mm	Micro (AAA) 1,5V	0,2/0,1 N·m	0,2/0,01 ft·lb	1/0,1 in·lb	428 mm	17,5 mm	1085 g	1655 g	Jetzt entdecken
96501420	730D/20 eClick	20	14 x 18 mm	20-200 N·m	15-150 ft·lb	180-1800 in·lb	547 mm	28 mm	23 mm	Micro (AAA) 1,5V	0,5/0,1 N·m	0,5/0,1 ft·lb	5/1,0 in·lb	516 mm	25 mm	1361 g	1896 g
96501440	730D/40 eClick	40	14 x 18 mm	40-400 N·m	30-300 ft·lb	360-3600 in·lb	687 mm	28 mm	23 mm	Micro (AAA) 1,5V	1,0/0,1 N·m	1,0/0,1 ft·lb	10/1,0 in·lb	656 mm	25 mm	1765 g	5155 g	Jetzt entdecken
96501465	730D/65 eClick	65	22 x 28 mm	65-650 N·m	48-480 ft·lb	580-5800 in·lb	890 mm	30,6 mm	25,6 mm	Micro (AAA) 1,5V	1,0/0,1 N·m	1,0/0,1 ft·lb	10/1,0 in·lb	890 mm	55 mm	3222 g	7000 g	Jetzt entdecken
96501480	730D/80 eClick	80	22 x 28 mm	80-800 N·m	60-600 ft·lb	720-7200 in·lb	1158 mm	30,6 mm	25,6 mm	Micro (AAA) 1,5V	1,0/0,1 N·m	1,0/0,1 ft·lb	10/1,0 in·lb	1158 mm	55 mm	4572 g	10400 g	Jetzt entdecken
96501500	730D/100 eClick	100	22 x 28 mm	100-1000 N·m	74-750 ft·lb	900-9000 in·lb	1343 mm	30,6 mm	25,6 mm	Micro (AAA) 1,5V	1,0/0,1 N·m	1,0/0,1 ft·lb	10/1,0 in·lb	1343 mm	55 mm	4990 g	10500 g	Jetzt entdecken

Eigenschaften

eClick - electromechanical click
acoustic, haptic, and visual trigger signal
with holder for interchangeable insert tools
torque measurement, angle of rotation measurement can be activated as an option
high-resolution colour OLED display and side signal lights
visual evaluation of the bolted joint: yellow light (pre-warning threshold reached), green light (within tolerance range), red light (measurement outside tolerance range)
freely configurable menu structure
rapid adjustment and direct setting of the target value
battery cap/battery pack with bayonet connection
optional: Li-ion battery no. 7195-2 and charger no. 7160
3 function modes: clicking (patented electromechanical click), peak hold (indicating mode with peak value display) and track (indicating mode with actual value display)
micro USB interface for data communication
optional Bluetooth Low Energy module (5.2) or WLAN module
QuickRelease safety lock - switching system for insert tools
data storage for up to 2,500 bolting processes, including date and time stamp
different tolerance limits can be set depending on the type of bolted joint
fast and precise adjustment via the keyboard
no unintentional adjustments thanks to password-protected keypad lock
acoustic and visual signal warns of torque wrench overload and forced clicking in clockwise tightening mode
automatic indication of the next calibration date, user-configurable by time interval and/or number of joints
fully automatic calibration and adjustment with the perfectControl® calibration and adjustment system no. 7794-2 (torque) or 7794-3 (torque and angle of rotation) for reducing error influencing factors
Units of measurement: N·m, ft·lb, in·lb
automatic extension length correction: option of entering a deviating extension length to ensure the required target value is achieved
ready for operation again immediately after release
for controlled anti-clockwise tightening - the insert tool must be turned in clicking mode
torque and angle of rotation displays visible at the same time
measurement regardless of the force application point (for sizes 1, 2, and 4)
safe handling due to the ergonomically shaped 2-component handle (resistant to the most common oils, greases, fuels, brake fluids, and Skydrol)
2 certificates included (torque clicking in accordance with DIN EN ISO 6789-2:2017, angle of rotation based on VDI/VDE 2648-2)
in sturdy plastic box (sizes 40-100 in steel box)
registered design, patented
supplied with SensoMaster software, USB cable, 4 micro-batteries AAA/LR03, 1.5 V
torque display resolution ≤ 60 N·m: 0.01 N·m; > 60 N·m: 0.1 N·m
torque display accuracy ±2%, ±1 digit
angle of rotation display resolution 0.1° (following upgrade)
angle of rotation display accuracy ±1°, ±1 digit to 100°, >100° at least 1%, ±1 digit (following upgrade)

Produkt-Highlights

Perfect introduction.

The MANOSKOP® 730D eClick is the perfect introduction to the world of digital torque wrenches. It offers all the essential functions for process-reliable torque bolting – in a deliberately focused and uncomplicated design. Operation of the tool is virtually self-explanatory. All the necessary information for the next bolt tightening is entered directly on the tool using easily accessible buttons and the display.

e-Click technology.

The MANOSKOP® 730D eClick combines the best of both worlds: the digital accuracy of modern electronics and the familiar, mechanical feedback every time they are used. The current torque is displayed digitally and in real time throughout the entire bolting process. Once the target value is reached, the torque wrench not only provides a visual signal but also a clearly audible and detectable click.

Extra reliability.

Thanks to the OLED digital display, the user can read off the specified target torque from any angle with no parallax errors. If different insert tools are being used, the integrated extension length correction automatically calculates the correct setting value if a different extension length is entered, thus avoiding calculation errors. The torque wrench also automatically compensates for incorrect grip positions thanks to the automatic force loading point compensation.

Comprehensive documentation.

The MANOSKOP® 730D eClick is suitable for documentation purposes. The torque wrench stores the data for up to 2,500 bolting processes, including the date and time stamp. The data can be read out, stored, and processed with the SensoMaster software. This allows the quality of bolted joints to be tracked at all times and provides robust evidence in the event of complaints or possible compensation claims.

Also suitable for difficult areas of application.

The electromechanical eClick torque wrenches from STAHLWILLE are perfect for areas of application in which purely electronic torque wrenches are pushed to their signalling limits - such as when working overhead or if the display cannot be read. Even in noisy, busy, and very bright environments which can make it difficult to perceive vibrations, or visual and acoustic signals, eClick torque wrenches indicate to the user that the target value has been reached using patented haptic feedback.

Future-proof solution.

If requirements change, the angle of rotation measuring method can be activated, if necessary. This expands the range of applications of the 730D eClick – without having to invest in additional tools.
