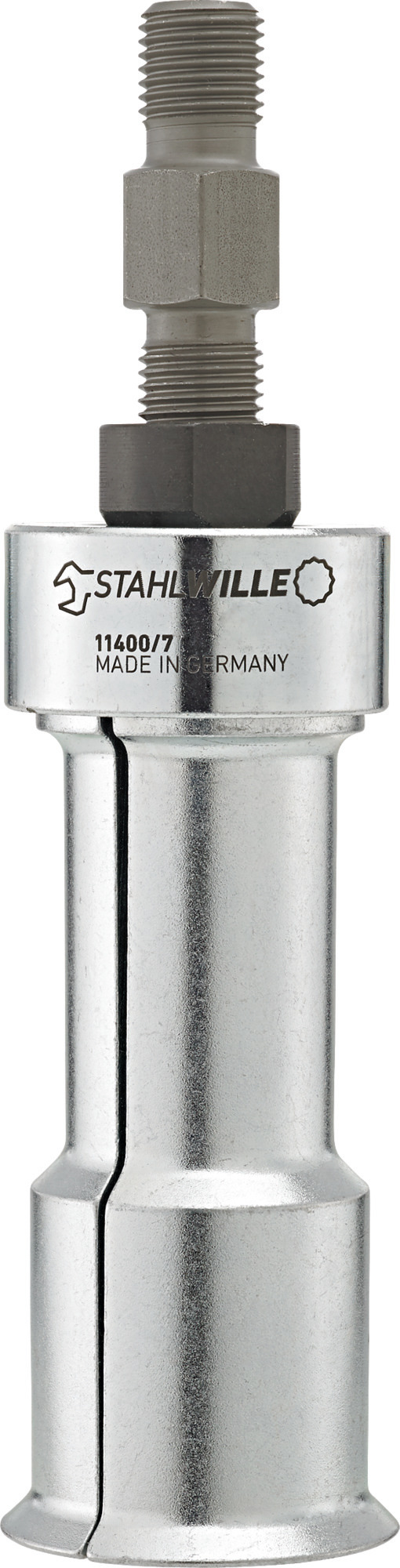

Internal puller


Internal puller

11400

Artikel-Nr. 71040003|EAN 4018754342099
  • Professional special tool for extracting ball bearings, bushings or similar from drive units or trolleys.
  • Gentle machining due to even distribution of force on the workpiece.
  • Uncomplicated removal is achieved by inserting the internal extractor into the bearing and screwing in the spindle.
  • Sharp shell projections remove even very tightly fitting components.
  • A slide hammer 11402/1 or a counter support 11401/1 is required for the quick removal of components.

Produkt-Varianten

Art. nrRozm.ModelZewnętrzny sześciokąt napędowy (mm)Długość mm (L)Szerokość mm (b)Wysokość mm (h)Standardowa podziałkaWaga (g)
7104000111140010 mm105 mm26 mm26 mm8-12 mm114 g
Jetzt entdecken
7104000221140010 mm109 mm26 mm26 mm12-15 mm119 g
Jetzt entdecken
7104000331140013 mm120 mm28 mm28 mm15-19 mm149 g
7104000441140013 mm123 mm28 mm28 mm19-25 mm182 g
Jetzt entdecken
710400054a1140013 mm123 mm28 mm28 mm25-30 mm297 g
Jetzt entdecken
7104000651140013 mm135 mm35 mm35 mm30-35 mm384 g
Jetzt entdecken
7104000761140017 mm170 mm42 mm42 mm35-45 mm649 g
Jetzt entdecken
7104000871140017 mm170 mm42 mm42 mm45-55 mm818 g
Jetzt entdecken
7104000981140019 mm205 mm55 mm55 mm55-70 mm1693 g
Jetzt entdecken
7104001491140019 mm205 mm55 mm55 mm70-100 mm1693 g
Jetzt entdecken

Eigenschaften

    • for very tight-fitting ball bearings, ball bearing outer rings and bushes that are not freely accessible from the outside
    • disassembly is carried out by inserting the internal extractor into the bearing and screwing in the spindle
    • the extractor jaws spread and the extractor lugs press under the bearing
    • a slide hammer or counter support is always required, which is screwed onto the connecting thread
    • can be used with slide hammer 11402/1 or counter support 11401/1

Produkt-Highlights

Precyzyjne do łożysk ciasno pasowanych.

Wewnętrzny ściągacz ułatwia wyciąganie łożysk, tulei i podobnych elementów, które znajdują się blisko ściany. Łożyska są pewnie chwytane przez otwór i szybko wyciągane dzięki dobremu efektowi zacisku. Dzięki zakresowi rozprężania 12-15 mm wewnętrzny ściągacz jest niezawodny nawet w wymagających zastosowaniach.

Dla większego bezpieczeństwa.

Przemyślanie zaprojektowane, kute matrycowo i precyzyjnie obrabiane, hartowane i odpuszczane na najnowocześniejszych maszynach - asortyment ściągaczy STAHLWILLE oferuje liczne produkty do szerokiego zakresu zastosowań. Na przykład ściągacze zaciskowe, ściągacze do przegubów kulowych, podpórki lub ekstraktory do przegubów kulowych - zawsze w najwyższej jakości.

Downloads

Produktdatenblatt: STAHLWILLE_71040003_11400-3 Innenauszieher 15-19mm_pl.pdf
PDF | 0.93 MB
In unserem Kundenportal bieten wir weitere Informationen und Downloads.
